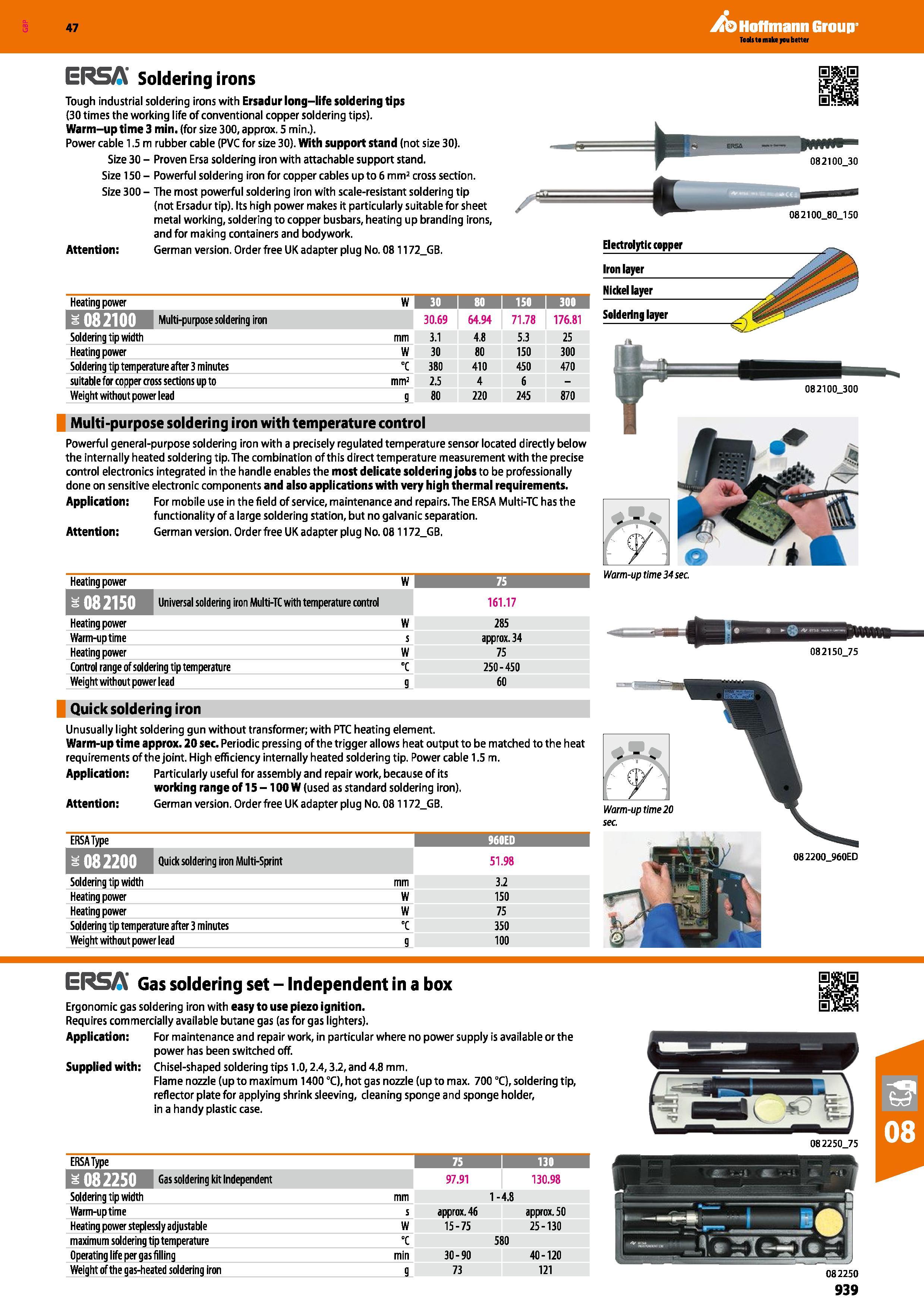

Hoffmann Group 47 ERSA Soldering irons Tough industrial soldering irons with Ersadur long-life soldering tips (30 times the working life of conventional copper soldering tips). Warm-up time 3 min. (for size 300, approx. 5 min.). Power cable 1.5 m rubber cable (PVC for size 30). With support stand (not size 30). Size 30 - Proven Ersa soldering iron with attachable support stand. Size 150 - Powerful soldering iron for copper cables up to 6 mm2 cross section. Size 300 - The most powerful soldering iron with scale-resistant soldering tip (not Ersadur tip). Its high power makes it particularly suitable for sheet metal working, soldering to copper busbars, heating up branding irons, and for making containers and bodywork. Attention: German version. Order free UK adapter plug No. 081172_GB. 082100_80_150 Heating power W 30 na 150 IBB IfljiVJIiTiV Multi-purpose soldering iron 30.69 64.94 71.78 176.81 Soldering tip width mm 3.1 4.8 5.3 25 Heating power W 30 80 150 300 Soldering tip temperature after 3 minutes °C 380 410 450 470 suitable for copper cross sections up to mm2 2.5 4 6 - Weight without power lead g 80 220 245 870 Multi-purpose soldering iron with temperature control Powerful general-purpose soldering iron with a precisely regulated temperature sensor located directly below the internally heated soldering tip. The combination of this direct temperature measurement with the precise control electronics integrated in the handle enables the most delicate soldering jobs to be professionally done on sensitive electronic components and also applications with very high thermal requirements. Application: For mobile use in the field of service, maintenance and repairs. The ERSA Multi-TC has the functionality of a large soldering station, but no galvanic separation. Attention: German version. Order free UK adapter plug No. 081172_GB. Heating power a 75 I SflKfy ffW Universal soldering iron Multi-TC with temperature control 161.17 Heating power W 285 Warm-uptime s approx. 34 Heating power W 75 Control range of soldering tip temperature C 250-450 Weight without power lead g 60 Quick soldering iron Unusually light soldering gun without transformer; with PTC heating element. Warm-up time approx. 20 sec. Periodic pressing of the trigger allows heat output to be matched to the heat requirements of the joint. High efficiency internally heated soldering tip. Power cable 1.5 m. Application: Particularly useful for assembly and repair work, because of its working range of 15 -100 W (used as standard soldering iron). Attention: German version. Order free UK adapter plug No. 081172_GB. Electrolytic copper Warm-up time 34 sec. 082150_75 ERSAType flKV£JlTS Quick soldering iron Multi-Sprint 51.98 Soldering tip width mm 3.2 Heating power W 150 Heating power W 75 Soldering tip temperature after 3 minutes "C 350 Weight without power lead g 100 ERSA Gas soldering set - Independent in a box Ergonomic gas soldering iron with easy to use piezo ignition. Requires commercially available butane gas (as for gas lighters). Application: For maintenance and repair work, in particular where no power supply is available or the power has been switched off. Supplied with: Chisel-shaped soldering tips 1.0,2.4,3.2, and 4.8 mm. Flame nozzle (up to maximum 1400 °C), hot gas nozzle (up to max. 700 °C), soldering tip, reflector plate for applying shrink sleeving, cleaning sponge and sponge holder, in a handy plastic case. ERSAType 1 75 i 130 aiKymi Gas soldering kit Independent 97.91 130.98 Soldering tip width mm 1-4.8 Warm-uptime s approx. 46 approx. 50 Heating power steplessly adjustable W 15-75 25-130 maximum soldering tip temperature c 580 Operating life per gas filling min 30-90 40-120 Weight of the gas-heated soldering iron g 73 121 Warm-up time 20 sec. 082200_960ED 082250_75 082250 939
