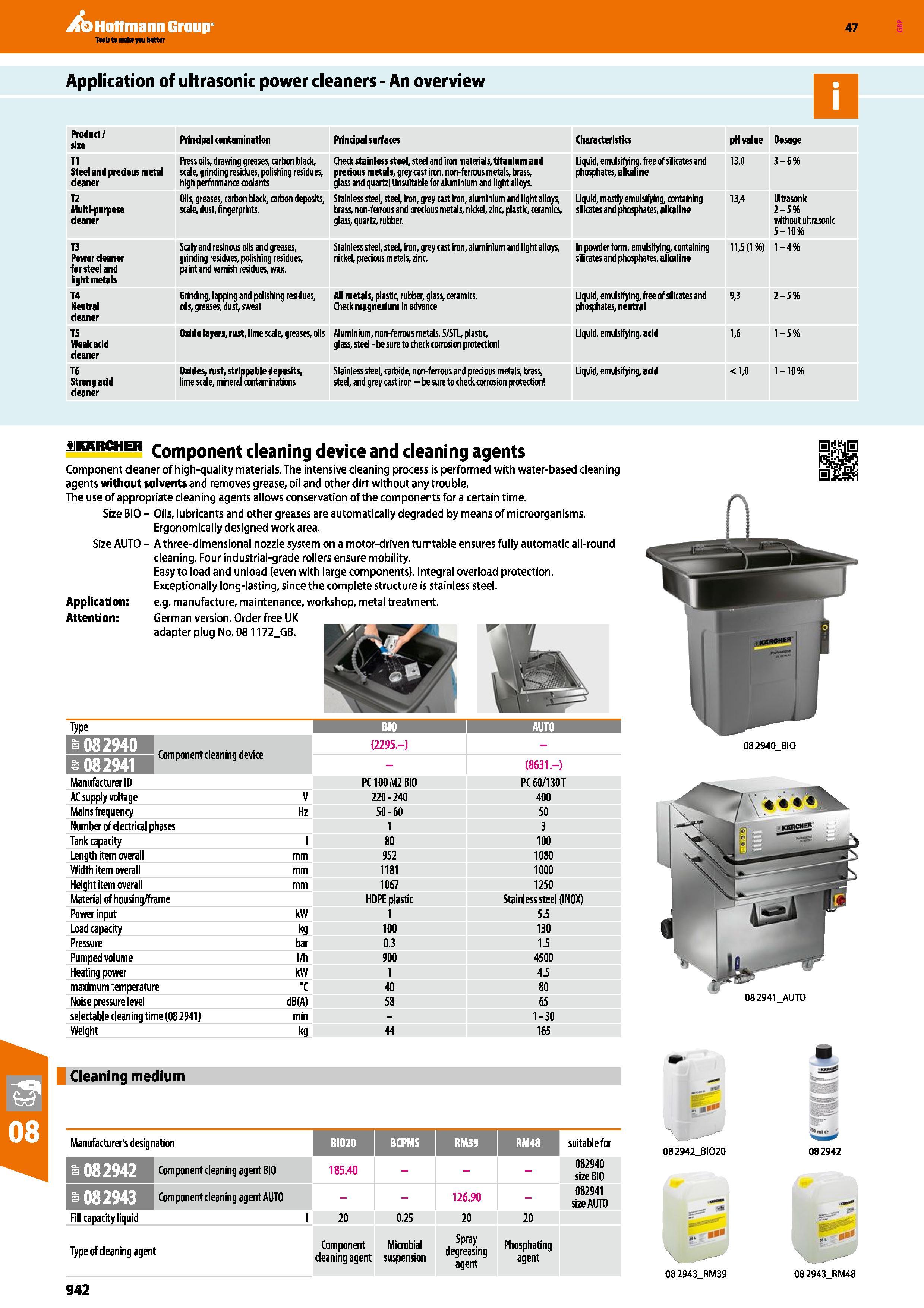

Hoffmann Group 47 Application of ultrasonic power cleaners - An overview Product/ size Prindpal contamination Prindpal surfaces Characteristics pH value Dosage 11 Steel and precious metal deaner Press oils, drawing greases, carbon black, scale, grinding residues, polishing residues, high performance coolants Check stainless steel, steel and iron materials, titanium and predous metals, grey cast iron, non-ferrous metals, brass, glass and quartz Unsuitable for aluminium and light alloys. Liquid, emulsifying, free of silicates and phosphates, alkaline 13,0 3-696 12 Multi-purpose deaner Oils, greases, carbon black, carbon deposits, scale, dust, fingerprints. Stainless steel, steel, iron, grey cast iron, aluminium and light alloys, brass, non-ferrous and precious metals, nickel, zinc, plastic, ceramics, glass, quartz, rubber. Liquid, mostly emulsifying, containing silicates and phosphates, alkaline 13,4 Ultrasonic 2-5% without ultrasonic 5-10% 13 Power deaner for steel and light metals Scaly and resinous oils and greases, grinding residues, polishing residues, paint and vamish residues, wax. Stainless steel, steel, iron, grey cast iron, aluminium and light alloys, nickel, precious metals, zinc In powder form, emulsifying, containing silicates and phosphates, alkaline 11,5(1%) 1-4% T4 Neutral deaner Grinding, lapping and polishing residues, oils, greases, dust, sweat Ml metals, plastic, rubber, glass, ceramics. Check magnesium in advance Liquid, emulsifying, free of silicates and phosphates, neutral 9,3 2-5% T5 Weakadd deaner Oxide layers, rust, lime scale, greases, oils Aluminium, non-ferrous metals, S/STL, plastic, glass, steel - be sure to check corrosion protection Liquid, emulsifying, acid 1,6 1-5% T6 Strong add deaner Oxides, rust, strippable deposits, lime scale, mineral contaminations Stainless steel, carbide, non-ferrous and precious metals, brass, steel, and grey cast iron - be sure to check corrosion protection Liquid, emulsifying, odd <1,0 1-10% sikkrcher Component cleaning device and cleaning agents Component cleaner of high-quality materials. The intensive cleaning process is performed with water-based cleaning agents without solvents and removes grease, oil and other dirt without any trouble. The use of appropriate cleaning agents allows conservation of the components for a certain time. Size BIO - Oils, lubricants and other greases are automatically degraded by means of microorganisms. Ergonomically designed work area. Size AUTO - A three-dimensional nozzle system on a motor-driven turntable ensures fully automatic all-round cleaning. Four industrial-grade rollers ensure mobility. Easy to load and unload (even with large components). Integral overload protection. Exceptionally long-lasting, since the complete structure is stainless steel. Application: e.g. manufacture, maintenance, workshop, metal treatment. Attention: German version. Order free UK adapter plug No. 08 1172_GB. Type M'lte BIO AUTO (2295.-) (8631.-) Manufacturer ID PC 100 M2 BIO PC 60/130T AC supply voltage V 220-240 400 Mains frequency Hz 50-60 50 Numberof electrical phases 1 3 Tank capacity I 80 100 Length item overall mm 952 1080 Width item overall mm 1181 1000 Height item overall mm 1067 1250 Material of housing/frame HDPE plastic Stainless steel (IN0X) Power input kW 1 5.5 Load capacity kg 100 130 Pressure bar 0.3 1J Pumped volume l/h 900 4500 Heating power kW 1 4 5 maximum temperature "C 40 80 Noise pressure level dB(A) 58 65 selectable cleaning time (08 2941) min 1-30 Weight kg 44 165 082940 BIO Cleaning medium Manufacturer's designation Component cleaning agent BIO Component cleaning agent AUTO 082942 Fill capacity liquid Type of cleaning agent 942 185.40 20 0.25 Component Microbial cleaning agent suspension 126.90 20 Spray degreasing agent suitable for 082940 size BIO 082941 size AUTO 082942_BI020 20 Phosphating agent 082943_RM39 J, 082942 z 08 2943_RM48
