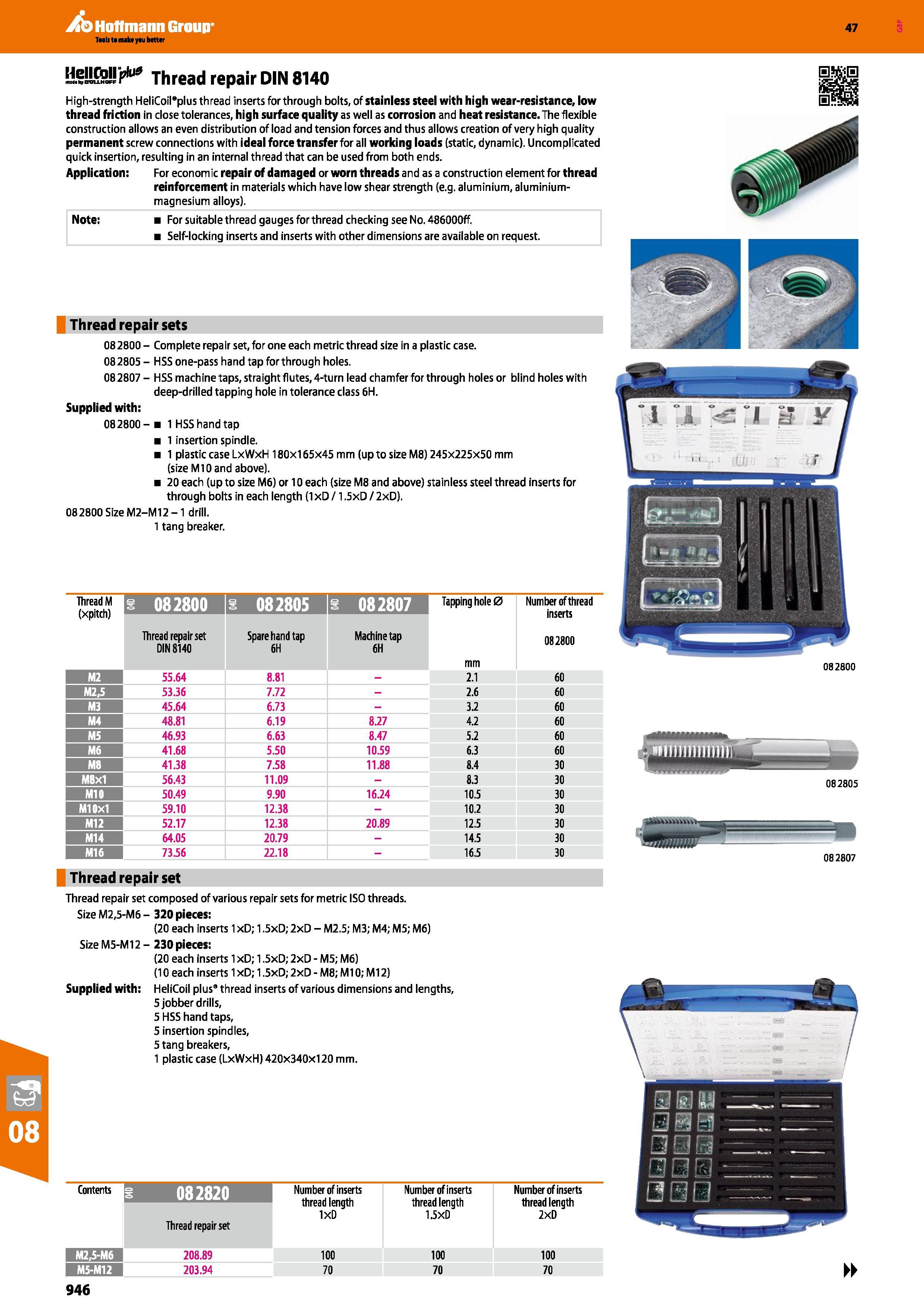

Hoffmann Group 47 Thread repair DIN 8140 High-strength HeliCoil'plus thread inserts for through bolts, of stainless steel with high wear-resistance, low thread friction in close tolerances, high surface quality as well as corrosion and heat resistance. The flexible construction allows an even distribution of load and tension forces and thus allows creation of very high quality permanent screw connections with ideal force transfer for all working loads (static, dynamic). Uncomplicated quick insertion, resulting in an internal thread that can be used from both ends. Application: For economic repair of damaged or worn threads and as a construction element for thread reinforcement in materials which have low shear strength (e.g. aluminium, aluminium-magnesium alloys). Note: For suitable thread gauges for thread checking see No. 486000ff. Self-locking inserts and inserts with other dimensions are available on request. Thread repair sets 082800- Complete repair set, for one each metric thread size in a plastic case. 082805 - HSS one-pass hand tap for through holes. 082807 - HSS machine taps, straight flutes, 4-turn lead chamfer for through holes or blind holes with deep-drilled tapping hole in tolerance class 6H. Supplied with: 082800 - 1 HSS hand tap 1 insertion spindle. 1 plastic case LxWxH 180x165x45 mm (up to size M8) 245x225x50 mm (size Ml0 and above). 20 each (up to size M6) or 10 each (size M8 and above) stainless steel thread inserts for through bolts in each length (1 xD /1,5xD / 2xD). 082800 Size M2-M12-1 drill. 1 tang breaker. Thread M (xpitch) s 082800 i 082805 082807 Tapping hole 0 Number of thread inserts Thread repair set DIN 8140 Spare hand tap 6H Machine tap 6H mm 082800 M2 55.64 8.81 1 - 2.1 60 M2,5 53.36 7.72 - 2.6 60 M3 45.64 6.73 - 3.2 60 M4 48.81 6.19 8.27 4.2 60 M5 46.93 6.63 8.47 5.2 60 M6 41.68 5.50 10.59 6.3 60 M8 41.38 7.58 11.88 8.4 30 MBxl 56.43 11.09 - 8.3 30 M10 50.49 9.90 16.24 10.5 30 M10X1 59.10 12.38 - 10.2 30 M12 52.17 12.38 20.89 12.5 30 M14 64.05 20.79 - 14.5 30 M16 73.56 22.18 - 16.5 30 082800 082805 082807 Thread repair set Thread repair set composed of various repair sets for metric ISO threads. Size M2.5-M6 - 320 pieces: (20 each inserts 1 xD; 1,5xD; 2xD - M2.5; M3; M4; M5; M6) SizeM5-M12- 230 pieces: (20 each inserts 1 xD; 1,5xD; 2xD - M5; M6) (10 each inserts 1 xD; 1,5xD; 2xD - M8; M10; M12) Supplied with: HeliCoil plus’ thread inserts of various dimensions and lengths, 5 jobber drills, 5 HSS hand taps, 5 insertion spindles, 5 tang breakers, 1 plastic case (LxWxH) 420x340x120 mm. Contents i 082820 Number of inserts thread length IxD Number of inserts thread length 1.5xD Number of inserts thread length 2xD Thread repair set M2,5-M6 208.89 100 100 100 M5-M12 203.94 70 70 70 946
