905 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.905

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 905 0905 ENG Lab2u

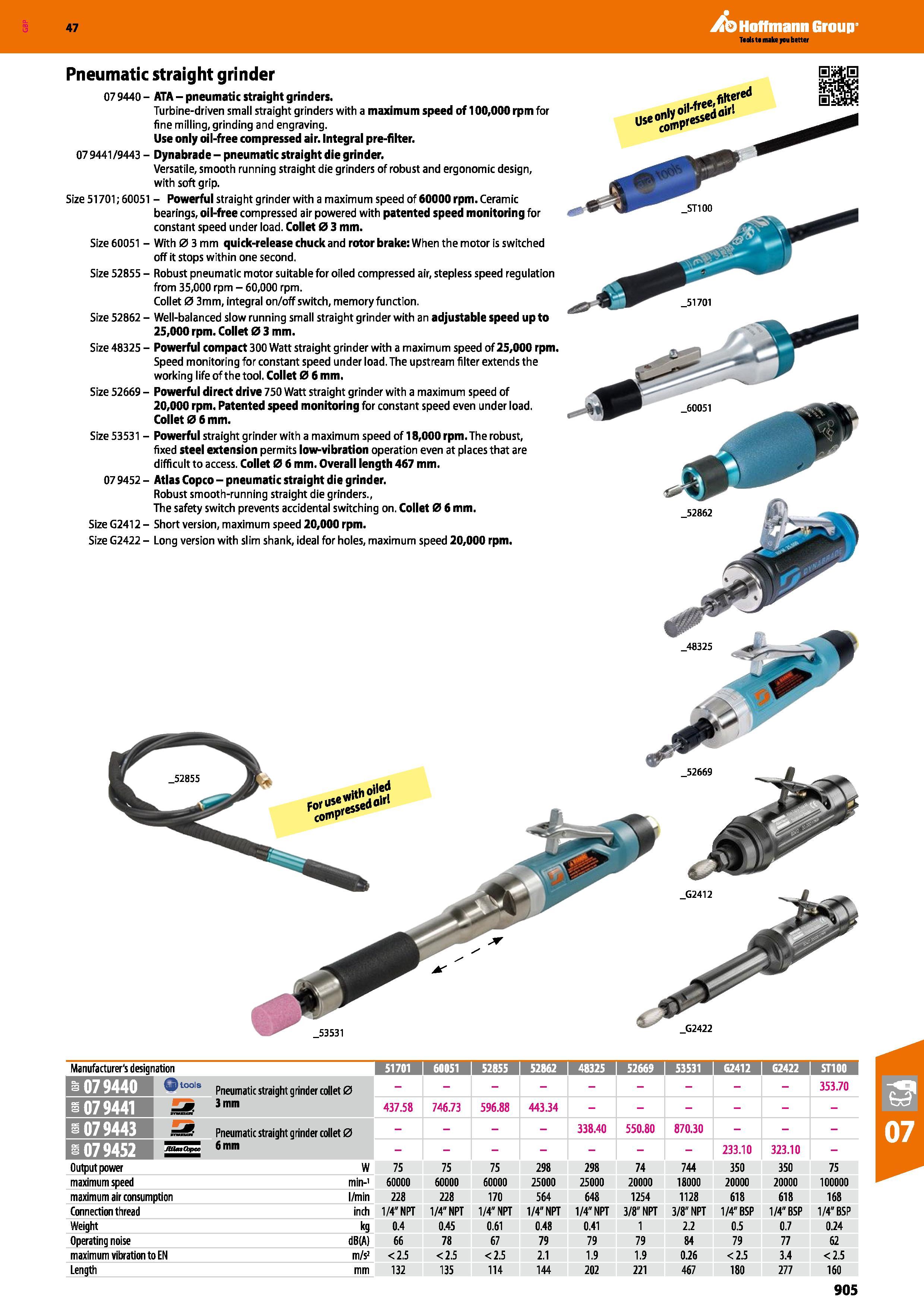

Hoffmann Group 47 Pneumatic straight grinder 079440 - ATA - pneumatic straight grinders. Turbine-driven small straight grinders with a maximum speed of 100,000 rpm for fine milling, grinding and engraving. Use only oil-free compressed air. Integral pre-filter. 07 9441 /9443 - Dynabrade - pneumatic straight die grinder. Versatile, smooth running straight die grinders of robust and ergonomic design, with soft grip. Size 51701; 60051 - Powerful straight grinder with a maximum speed of 60000 rpm. Ceramic bearings, oil-free compressed air powered with patented speed monitoring for constant speed under load. Collet 0 3 mm. Size 60051 - With 0 3 mm quick-release chuck and rotor brake: When the motor is switched off it stops within one second. Size 52855 - Robust pneumatic motor suitable for oiled compressed air, stepless speed regulation from 35,000 rpm - 60,000 rpm. Collet 0 3mm, integral on/off switch, memory function. Size 52862 - Well-balanced slow running small straight grinder with an adjustable speed up to 25.000 rpm. Collet 0 3 mm. Size 48325 - Powerful compact 300 Watt straight grinder with a maximum speed of 25,000 rpm. Speed monitoring for constant speed under load. The upstream filter extends the working life of the tool. Collet 0 6 mm. Size 52669 - Powerful direct drive 750 Watt straight grinder with a maximum speed of 20.000 rpm. Patented speed monitoring for constant speed even under load. Collet 0 6 mm. Size 53531 - Powerful straight grinder with a maximum speed of 18,000 rpm. The robust, fixed steel extension permits low-vibration operation even at places that are difficult to access. Collet 0 6 mm. Overall length 467 mm. 07 9452 - Atlas Copco - pneumatic straight die grinder. Robust smooth-running straight die grinders., The safety switch prevents accidental switching on. Collet 0 6 mm. Size G2412 - Short version, maximum speed 20,000 rpm. Size G2422 - Long version with slim shank, ideal for holes, maximum speed 20,000 rpm. G2422 Manufacturer's designation 51701 1 60051 1 52855 1 52862 1 48325 I 52669 1 53531 I G2412 1 G2422 1 ST100 1 3 079440 Pneumatic straight grinder collet 0 353.70 3 079441 3 mm 437.58 746.73 596.88 443.34 3 079443 Pneumatic straight grinder collet 0 - 338.40 550.80 870.30 3 079452 6 mm - 233.10 323.10 - Output power W 75 75 75 298 298 74 744 350 350 75 maximum speed min-1 60000 60000 60000 25000 25000 20000 18000 20000 20000 100000 maximum air consumption l/min 228 228 170 564 648 1254 1128 618 618 168 Connection thread inch 1/4"NPT 1/4" NPT 1/4" NPT 1/4" NPT 1/4" NPT 3/8" NPT 3/8"NPT 1/4" BSP 1/4" BSP 1/4"BSP Weight kg 0.4 0.45 0.61 0.48 0.41 1 2.2 0.5 0.7 0.24 Operating noise dB(A) 66 78 67 79 79 79 84 79 77 62 maximum vibration to EN m/s2 <2.5 <2.5 <2.5 2.1 1.9 1.9 0.26 <2.5 3.4 <2.5 Length mm 132 135 114 144 202 221 467 180 277 160 905
