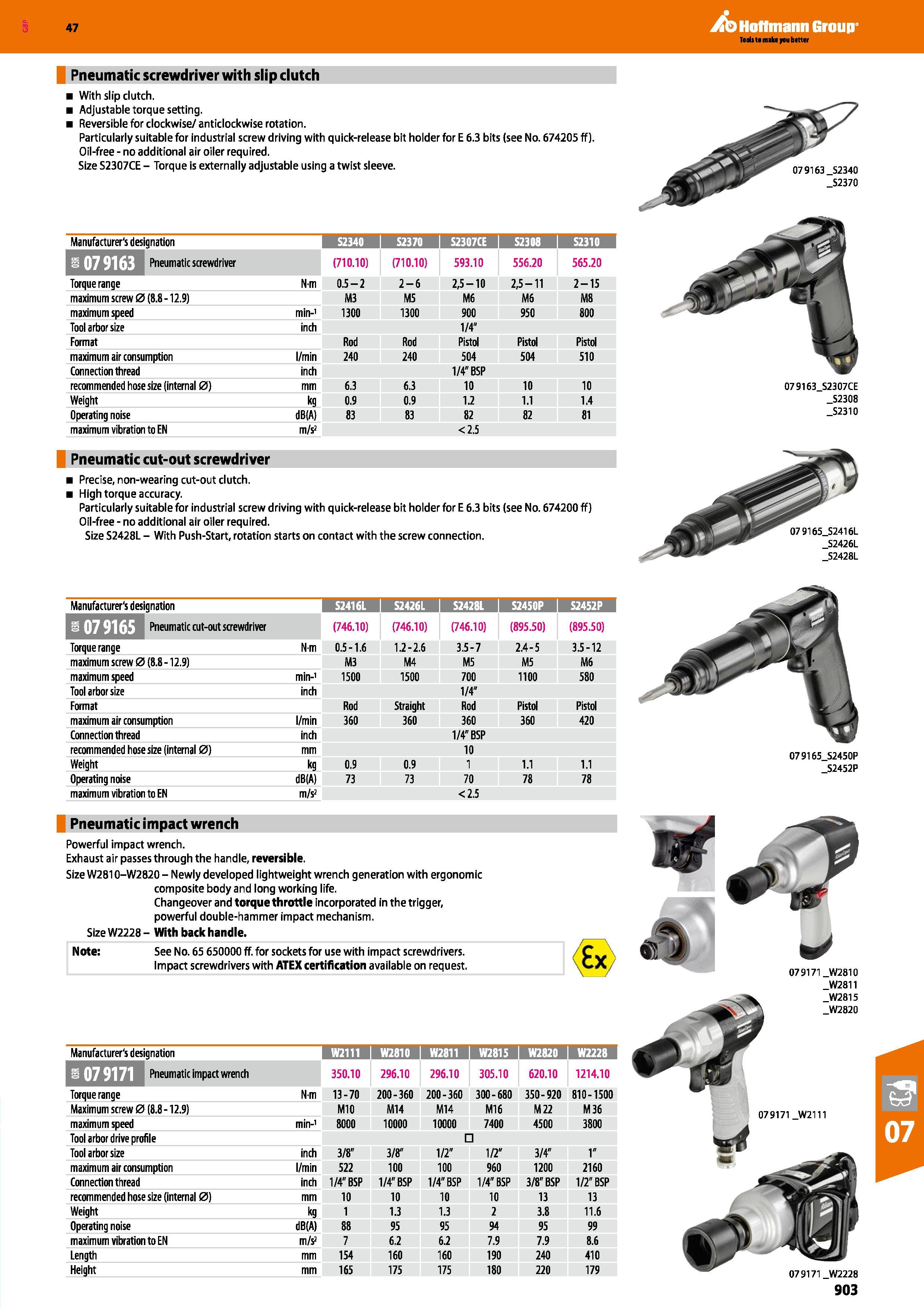

Hoffmann Group 47 Pneumatic screwdriver with slip clutch With slip clutch. Adjustable torque setting. Reversible for clockwise/ anticlockwise rotation. Particularly suitable for industrial screw driving with quick-release bit holder for E 6.3 bits (see No. 674205 ff . Oil-free - no additional air oiler required. Size S2307CE - Torque is externally adjustable using a twist sleeve. Manufacturer's designation 1 S2340 S2370 1 S2307CE 1 S2308 i S2310 Pneumatic screwdriver (710.10) (710.10) 593.10 556.20 565.20 Torgue range Nm 0.5-2 2-6 2,5-10 2,5-11 2-15 maximum screw 0 (8.8 -12.9) M3 M5 M6 M6 M8 maximum speed min-1 1300 1300 900 950 800 Tool arbor size inch 1/4" Format Rod Rod Pistol Pistol Pistol maximum air consumption l/min 240 240 504 504 510 Connection thread inch 1/4" BSP recommended hose size (internal 0) mm 6.3 6.3 10 10 10 Weight kg 0.9 0.9 1.2 1.1 1.4 Operating noise dB(A) 83 83 82 82 81 maximum vibration to EN m/s2 <2.5 Pneumatic cut-out screwdriver Precise, non-wearing cut-out clutch. High torque accuracy. Particularly suitable for industrial screw driving with quick-release bit holder for E 6.3 bits (see No. 674200 ff) Oil-free - no additional air oiler required. Size S2428L - With Push-Start, rotation starts on contact with the screw connection. Manufacturer's designation 1 S2416L 1 S2426L 1 S2428L 1 S2450P 1 S2452P 1 Pneumatic cut-out screwdriver (746.10) (746.10) (746.10) (895.50) (895.50) Torgue range Nm 0.5-1.6 1.2-2.6 3.5-7 2.4-5 3.5-12 maximum screw 0 (8.8 -12.9) M3 M4 M5 M5 M6 maximum speed min-1 1500 1500 700 1100 580 Tool arbor size inch 1/4" Format Rod Straight Rod Pistol Pistol maximum air consumption l/min 360 360 360 360 420 Connection thread inch 1/4" BSP recommended hose size (internal 0) mm 10 Weight kg 0.9 0.9 1 1.1 1.1 Operating noise dB(A) 73 73 70 78 78 maximum vibration to EN m/s2 <2.5 Pneumatic impact wrench Powerful impact wrench. Exhaust air passes through the handle, reversible. Size W2810-W2820 - Newly developed lightweight wrench generation with ergonomic composite body and long working life. Changeover and torque throttle incorporated in the trigger, powerful double-hammer impact mechanism. SizeW2228- With back handle. Note: See No. 65 650000 ff. for sockets for use with impact screwdrivers. Impact screwdrivers with ATEX certification available on request. £x 079165_S2450P _S2452P Manufacturer's designation 1 W2111 1 W2810 1 W2811 1 W2815 1 W2820 1 W2228 1 Pneumatic impact wrench 350.10 296.10 296.10 305.10 620.10 1214.10 Torgue range Nm 13-70 200-360 200-360 300 - 680 350-920 810-1500 Maximum screw 0 (8.8 -12.9) M10 M14 M14 Ml 6 M22 M36 maximum speed min-1 8000 10000 10000 7400 4500 3800 Tool arbor drive profile n Tool arbor size inch 3/8" 3/8" 1/2" 1/2" 3/4" 1" maximum air consumption l/min 522 100 100 960 1200 2160 Connection thread inch 1/4"BSP 1/4" BSP 1/4" BSP 1/4" BSP 3/8"BSP 1/2" BSP recommended hose size (internal 0) mm 10 10 10 10 13 13 Weight kg 1 1.3 1.3 2 3.8 11.6 Operating noise dB(A) 88 95 95 94 95 99 maximum vibration to EN m/s2 7 6.2 6.2 7.9 7.9 8.6 Length mm 154 160 160 190 240 410 Height mm 165 175 175 180 220 179 079163 _S2340 _S2370 079163_S2307CE _S2308 _S2310 07 9165_S2416L _S2426L _S2428L 079171 _W2810 _W2811 _W2815 _W2820
