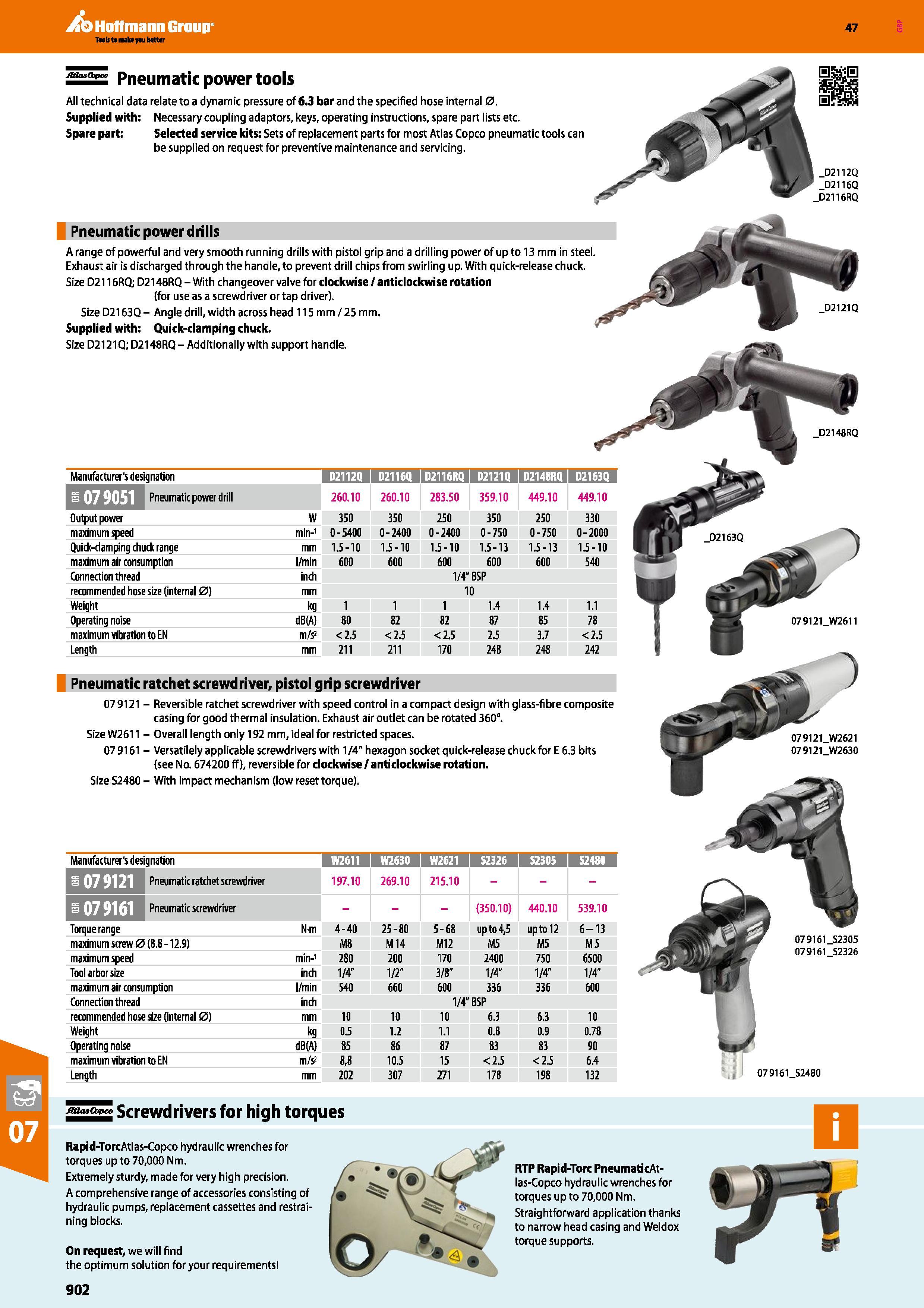

Hoffmann Group 47 £2 es Pneumatic power tools All technical data relate to a dynamic pressure of 6.3 bar and the specified hose internal 0. Supplied with: Necessary coupling adaptors, keys, operating instructions, spare part lists etc. Spare part: Selected service kits: Sets of replacement parts for most Atlas Copco pneumatic tools can be supplied on request for preventive maintenance and servicing. Manufacturer's designation 1 D2112Q I D2116Q I D2116RQ 1 D2121Q I D2148RQ 1 D2163Q Pneumatic power drill 260.10 260.10 283.50 359.10 449.10 449.10 Output power W 350 350 250 350 250 330 maximum speed min-1 0-5400 0-2400 0-2400 0-750 0-750 0-2000 Quick-damping chuck range mm 1.5-10 1.5-10 1.5-10 1.5-13 1.5-13 1.5-10 maximum air consumption l/min 600 600 600 600 600 540 Connection thread inch 1/4" BSP recommended hose size (internal 0) mm 10 Weight kg 1 1 1 1.4 1.4 1.1 Operating noise dB(A) 80 82 82 87 85 78 maximum vibration to EN m/s2 <2.5 <2.5 <2.5 2.5 3.7 <2.5 Length mm 211 211 170 248 248 242 Pneumatic ratchet screwdriver, pistol grip screwdriver 079121 - Reversible ratchet screwdriver with speed control in a compact design with glass-fibre composite casing for good thermal insulation. Exhaust air outlet can be rotated 360°. Size W2611 - Overall length only 192 mm, ideal for restricted spaces. 079161 - Versatilely applicable screwdrivers with 1/4" hexagon socket quick-release chuck forE 6.3 bits (see No. 674200 ff), reversible for clockwise / anticlockwise rotation. Size S2480 - With impact mechanism (low reset torque). Manufacturer's designation 1 W2611 I W2630 I W2621 I S2326 I S2305 1 S2480 079121 Pneumatic ratchet screwdriver 197.10 269.10 215.10 i 079161 Pneumatic screwdriver (350.10) 440.10 539.10 Torque range Nm 4-40 25-80 5-68 upto4,5 up to 12 6-13 maximum screw 0 (8.8 -12.9) M8 M14 Ml 2 M5 M5 M5 maximum speed min-1 280 200 170 2400 750 6500 Tool arbor size inch 1/4" 1/2" 3/8" 1/4" 1/4" 1/4" maximum air consumption l/min 540 660 600 336 336 600 Connection thread inch 1/4" BSP recommended hose size (internal 0) mm 10 10 10 6.3 6.3 10 Weight kg 0.5 1.2 1.1 0.8 0.9 0.78 Operating noise dB(A) 85 86 87 83 83 90 maximum vibration to EN m/s 8,8 10.5 15 <2i <2.5 6.4 Length mm 202 307 271 178 198 132 Pneumatic power drills A range of powerful and very smooth running drills with pistol grip and a drilling power of upto 13 mm in steel. Exhaust air is discharged through the handle, to prevent drill chips from swirling up. With quick-release chuck. Size D2116RQ; D2148RQ - With changeover valve for clockwise/anticlockwise rotation (for use as a screwdriver or tap driver). Size D2163Q - Angle drill, width across head 115 mm / 25 mm. Supplied with: Quick-damping chuck. Size D2121Q; D2148RQ- Additionally with support handle. _D2121Q 079161_S2480 _D2148RQ 079121_W2611 079121_W2621 079121_W2630 079161_S2305 079161_S2326 _D2163Q Jf&asCopco Screwdrivers for high torques Rapid-TorcAtlas-Copco hydraulic wrenches for torques up to 70,000 Nm. Extremely sturdy, made for very high precision. A comprehensive range of accessories consisting of hydraulic pumps, replacement cassettes and restraining blocks. On request, we will find the optimum solution for your requirements RTP Rapid-Torc PneumaticAt- las-Copco hydraulic wrenches for torques up to 70,000 Nm. Straightforward application thanks to narrow head casing and Weldox torque supports. 902
