907 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.907

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 907 0907 ENG Lab2u

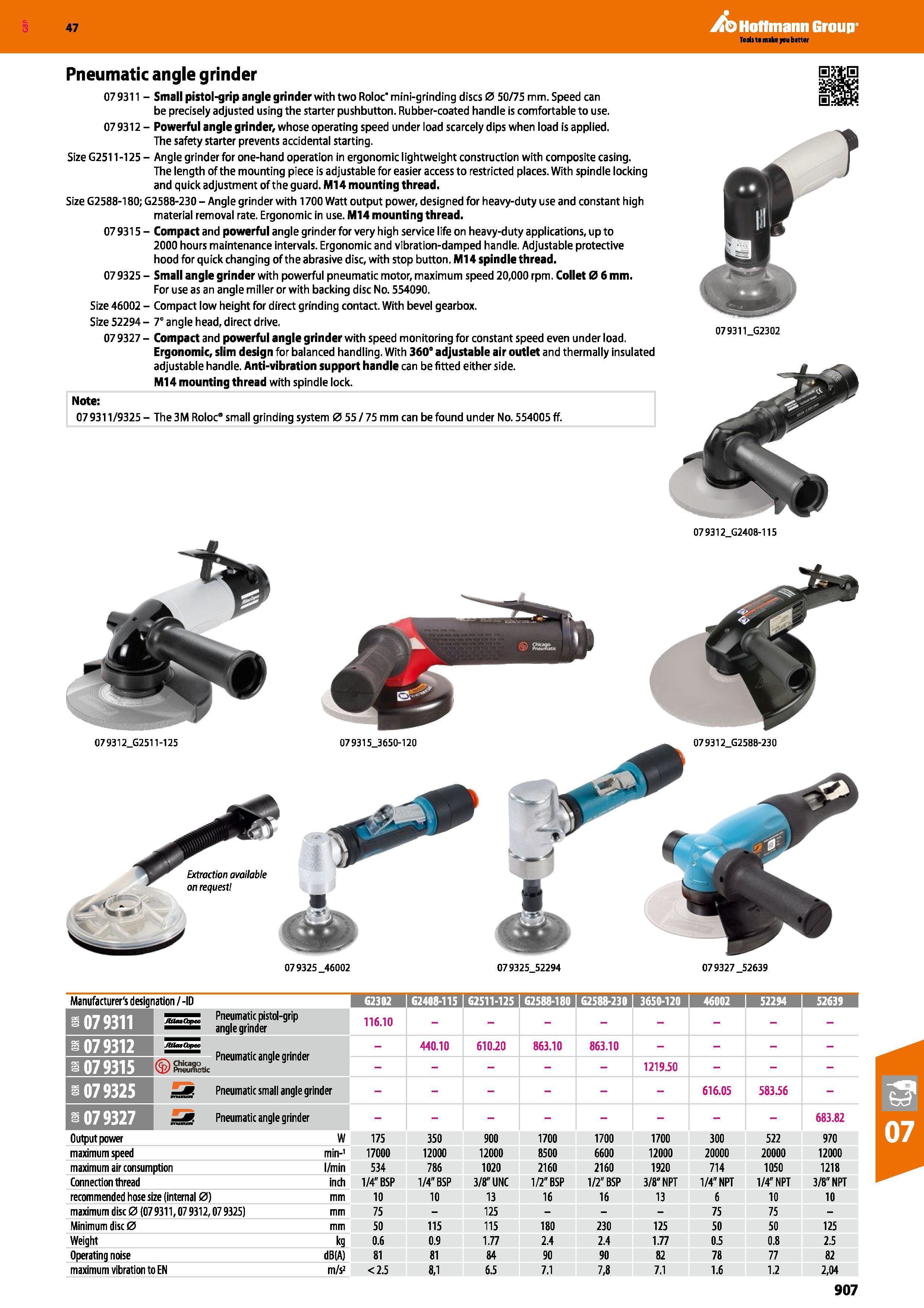

Hoffmann Group 47 Pneumatic angle grinder 079311 - Small pistol-grip angle grinder with two Roloc mini-grinding discs 0 50/75 mm. Speed can be precisely adjusted using the starter pushbutton. Rubber-coated handle is comfortable to use. 07 9312 - Powerful angle grinder, whose operating speed under load scarcely dips when load is applied. The safety starter prevents accidental starting. Size G2511 -125 - Angle grinder for one-hand operation in ergonomic lightweight construction with composite casing. The length of the mounting piece is adjustable for easier access to restricted places. With spindle locking and quick adjustment of the guard. M14 mounting thread. Size G2588-180; G2588-230 - Angle grinder with 1700 Watt output power, designed for heavy-duty use and constant high material removal rate. Ergonomic in use. M14 mounting thread. 079315 - Compact and powerful angle grinder for very high service life on heavy-duty applications, up to 2000 hours maintenance intervals. Ergonomic and vibration-damped handle. Adjustable protective hood for quick changing of the abrasive disc, with stop button. M14 spindle thread. 07 9325 - Small angle grinder with powerful pneumatic motor, maximum speed 20,000 rpm. Collet 0 6 mm. For use as an angle miller or with backing disc No. 554090. Size 46002 - Compact low height for direct grinding contact. With bevel gearbox. Size 52294 - 7° angle head, direct drive. 07 9327 - Compact and powerful angle grinder with speed monitoring for constant speed even under load. Ergonomic, slim design for balanced handling. With 360° adjustable air outlet and thermally insulated adjustable handle. Anti-vibration support handle can be fitted either side. M14 mounting thread with spindle lock. Note: 079311/9325 - The3M Roloc" small grinding system 0 55/75 mm can be found under No. 554005 ff. 079311_G2302 079312_G2408-115 079312_G2511-125 079315_3650-120 < - Extraction available on request 07 9325 _46002 07 9325_52294 07 9327 _52639 Manufacturer's designation / -ID HH G2302 I G2408-115 1 G2511-125 I G2588-180 1 G2588-230 1 3650-120 1 46002 1 52294 1 52639 I s Pneumatic pistol-grip angle grinder 116.10 g IFA'tl JUlasCbpcc Dnonmafir an/ila nrindor - 440.10 610.20 863.10 863.10 - 3 nicuiiidUL niiyie yriiiUci Vjjy Pneumatic 1219.50 3 _JK Pneumatic small angle grinder 616.05 583.56 - 1 Jf Pneumatic angle grinder 683.82 Output power W 175 350 900 1700 1700 1700 300 522 970 maximum speed min-1 17000 12000 12000 8500 6600 12000 20000 20000 12000 maximum air consumption l/min 534 786 1020 2160 2160 1920 714 1050 1218 Connection thread inch 1/4" BSP 1/4" BSP 3/8" UNC 1/2"BSP 1/2" BSP 3/8" NPT 1/4" NPT 1/4" NPT 3/8" NPT recommended hose size (internal 0) mm 10 10 13 16 16 13 6 10 10 maximum disc 0 (07 9311,07 9312,07 9325) mm 75 - 125 75 75 - Minimum disc 0 mm 50 115 115 180 230 125 50 50 125 Weight kg 0.6 0.9 1.77 2.4 2.4 1.77 0.5 0.8 2.5 Operating noise dB(A) 81 81 84 90 90 82 78 77 82 maximum vibration to EN m/s2 < 2.5 8,1 6.5 7.1 7,8 7.1 1.6 1.2 2,04 907 07 9312_G2588-230
