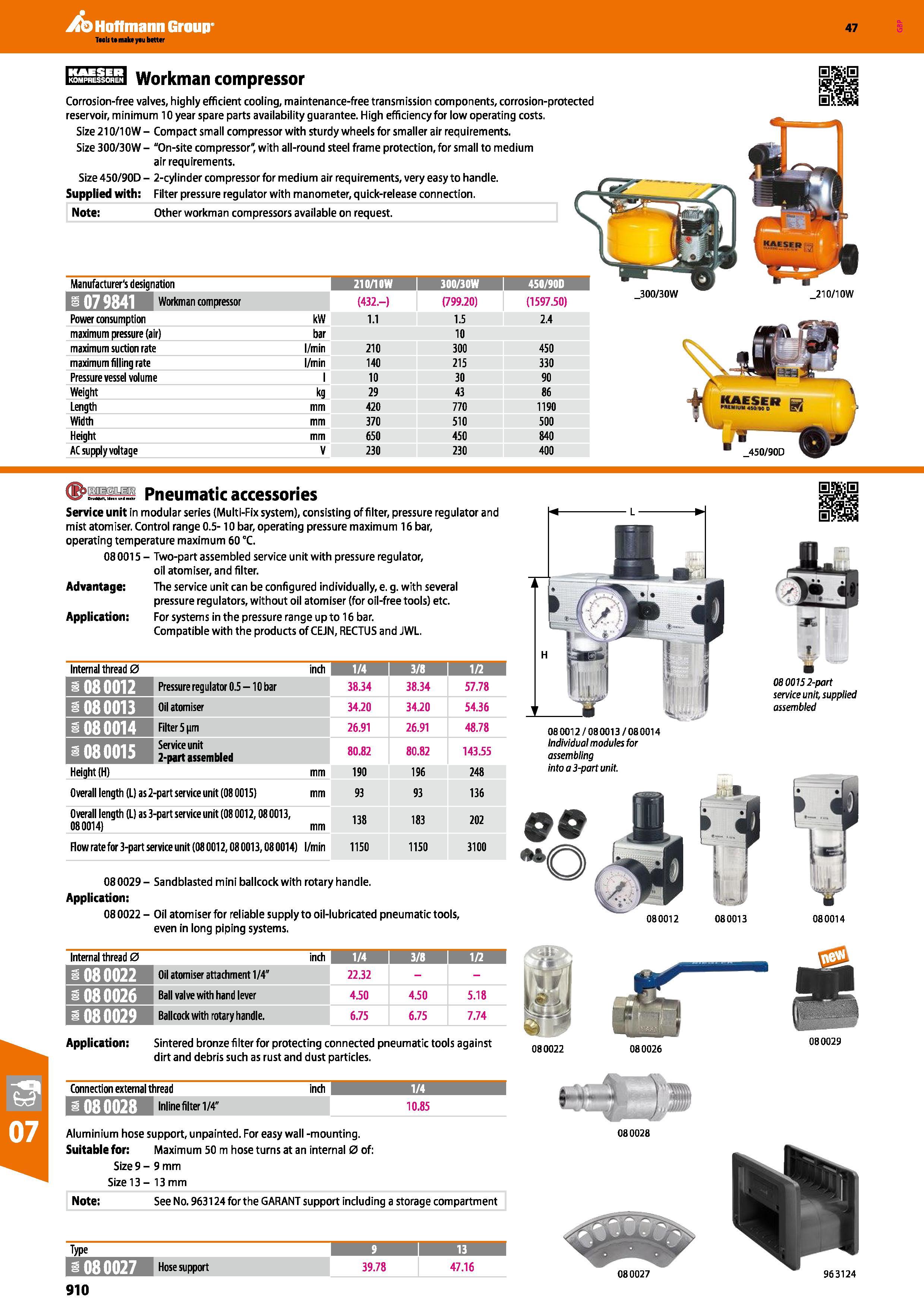

Hoffmann Group 47 Iil.y;it4iy Workman compressor Corrosion-free valves, highly efficient cooling, maintenance-free transmission components, corrosion-protected reservoir, minimum 10 year spare parts availability guarantee. High efficiency for low operating costs. Size 210/1OW - Compact small compressor with sturdy wheels for smaller air requirements. Size 300/30W - "On-site compressor" with all-round steel frame protection, for small to medium air requirements. Size 450/90D - 2-cylinder compressor for medium air requirements, very easy to handle. Supplied with: Filter pressure regulator with manometer, quick-release connection. Note: Other workman compressors available on request. Manufacturer's designation 1 210/1 OW 300/30W i 450/90D 1 Workman compressor (432.-) (799.20) (1597.50) Power consumption kW 1.1 1.5 2.4 maximum pressure (air) bar 10 maximum suction rate l/min 210 300 450 maximum filling rate l/min 140 215 330 Pressure vessel volume 1 10 30 90 Weight kg 29 43 86 Length mm 420 770 1190 Width mm 370 510 500 Height mm 650 450 840 AC supply voltage V 230 230 400 _300/30W 210/10W _450/90D vSPSHiSI Pneumatic accessories Service unit in modular series (Multi-Fix system), consisting of filter, pressure regulator and mist atomiser. Control range 0.5-10 bar, operating pressure maximum 16 bar, operating temperature maximum 60 °C. 080015 - Two-part assembled service unit with pressure regulator, oil atomiser, and filter. Advantage: The service unit can be configured individually, e. g. with several pressure regulators, without oil atomiser (for oil-free tools) etc. Application: For systems in the pressure range upto 16 bar. Compatible with the products of CEJN, RECTUS and JWL. Internal thread 0 inch 1/4 3/8 1 1/2 Pressure regulator 0.5-10 bar 38.34 38.34 57.78 i 080013 Oil atomiser 34.20 34.20 54.36 1080014 Filter 5 pm 26.91 26.91 48.78 1080015 Service unit 2-part assembled 80.82 80.82 143.55 Height (H) mm 190 196 248 Overall length (L) as 2-part service unit (08 0015) mm 93 93 136 Overall length (L) as 3-part service unit (08 0012,08 0013, 080014) mm 138 183 202 Flow rate for 3-part service unit (08 0012,08 0013,08 0014) l/min 1150 1150 3100 080012 / 080013 / 080014 Individual modules for assembling into a 3-part unit. 080029- Sandblasted mini ballcockwith rotary handle. Application: 080022 - Oil atomiser for reliable supply to oil-lubricated pneumatic tools, even in long piping systems. 080012 080013 Internal thread 0 beb 3/8 I 1/2 oo 080022 Oil atomiser attachment 1/4" 22.32 i 080026 Ball valve with hard lever 4.50 4.50 5.18 I 080029 Ballcockwith rotary handle. 6.75 6.75 7.74 Application: Sintered bronze filter for protecting connected pneumatic tools against dirt and debris such as rust and dust particles. 080022 080026 080029 Connection external thread inch 1/4 i 11080028 10.85 Aluminium hose support, unpainted. For easy wall -mounting. Suitable for: Maximum 50 m hose turns at an internal 0 of: Size 9-9 mm Size 13 - 13 mm Note: See No. 963124 for the GARANT support including a storage compartment 080028 Type 9 I 13 1080027 Hose support 39.78 47.16 080027 963124 910 080014 f 0800152-part service unit, supplied assembled
