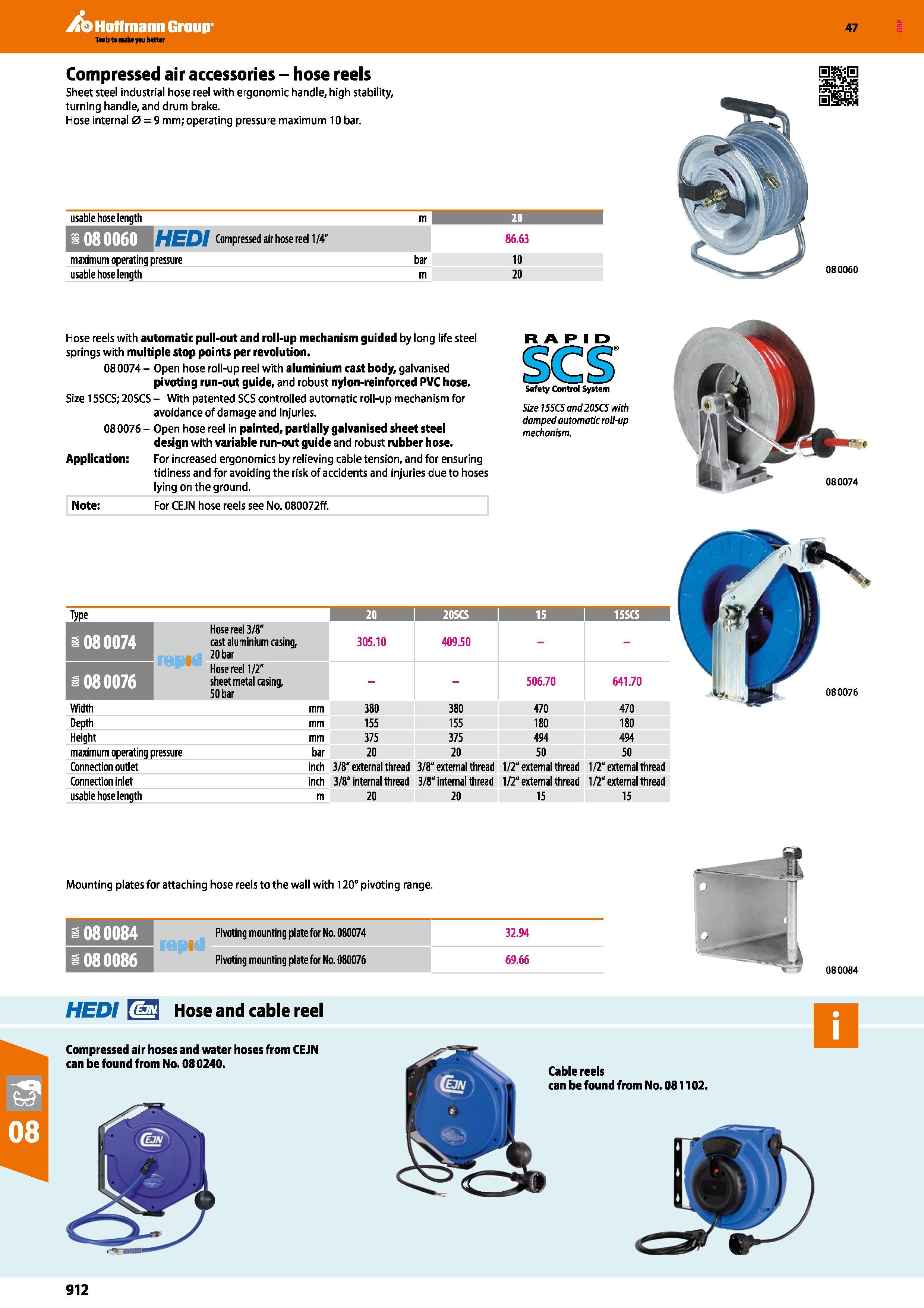

Hoffmann Group 47 Compressed air accessories - hose reels Sheet steel industrial hose reel with ergonomic handle, high stability, turning handle, and drum brake. Hose internal 0 = 9 mm; operating pressure maximum lObar. usable hose length m 20 ajTTmJiTi HEDI Compressed air hose reel 1 /4" 86.63 maximum operating pressure bar 10 usable hose length m 20 080060 Hose reels with automatic pull-out and roll-up mechanism guided by long life steel springs with multiple stop points per revolution. 08 0074 - Open hose roll-up reel with aluminium cast body, galvanised pivoting run-out guide, and robust nylon-reinforced PVC hose. Size 15SCS; 20SCS - With patented SCS controlled automatic roll-up mechanism for avoidance of damage and injuries. 08 0076 - Open hose reel in painted, partially galvanised sheet steel design with variable run-out guide and robust rubber hose. Application: For increased ergonomics by relieving cable tension, and for ensuring tidiness and for avoiding the risk of accidents and injuries due to hoses lying on the ground. RAPID Safety Control System Size 15SCS and 20SCS with damped automatic roll-up mechanism. Note: For CEJN hose reels see No. 080072ff. 20 I 20SCS i 15 1 15SCS 1 rapid Hose reel 3/8" cast aluminium casing, 20 bar 305.10 409.50 i 08 0076 Hose reel 1/2" sheet metal casing, 50 bar 506.70 641.70 Width mm 380 380 470 470 Depth mm 155 155 180 180 Height mm 375 375 494 494 maximum operating pressure bar 20 20 50 50 Connection outlet inch 3/8“ external thread 3/8“ external thread 1/2“ external thread 1/2“ external thread Connection inlet inch 3/8“internal thread 3/8“internal thread 1/2“ external thread 1/2“ external thread usable hose length m 20 20 15 15 Mounting plates for attaching hose reels to the wall with 120° pivoting range. 080084 080086 rapid Pivoting mounting plate for No. 080074 Pivoting mounting plate for No. 080076 32.94 69.66 080076 080084 Compressed air hoses and water hoses from CEJN can be found from No. 080240. HEDI Hose and cable reel Cable reels can be found from No. 081102. 912
