861 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.861

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 861 0861 ENG Lab2u

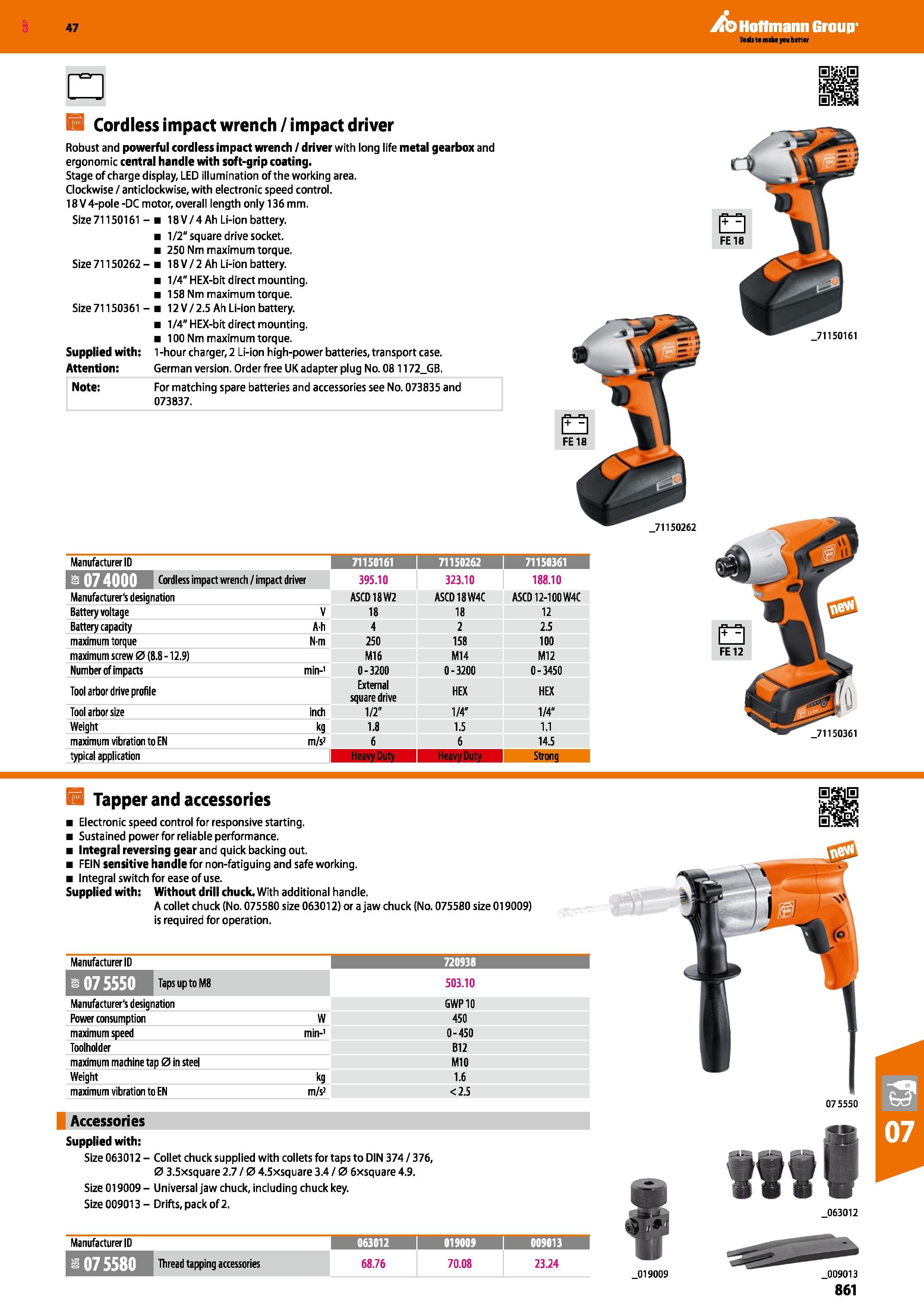

Hoffmann Group 47 H Cordless impact wrench / impact driver Robust and powerful cordless impact wrench / driver with long life metal gearbox and ergonomic central handle with soft-grip coating. Stage of charge display, LED illumination of the working area. Clockwise / anticlockwise, with electronic speed control. 18 V 4-pole -DC motor, overall length only 136 mm. Size 71150161 - 18V/4 Ah Li-ion battery. 1/2" square drive socket. 250 Nm maximum torque. Size 71150262 - 18 V / 2 Ah Li-ion battery. 1/4" HEX-bit direct mounting. 158 Nm maximum torque. Size 71150361 - 12 V / 2.5 Ah Li-ion battery. 1/4" HEX-bit direct mounting. 100 Nm maximum torque. Supplied with: 1-hourcharger,2 Li-ion high-power batteries, transport case. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For matching spare batteries and accessories see No. 073835 and 073837. 71150161 71150262 Manufacturer ID 71150161 71150262 i 71150361 1 STT7TTTTTTM Cordless impact wrench /impact driver 395.10 323.10 188.10 Manufacturer's designation ASCD18W2 ASCD18W4C ASCD12-100 W4C Battery voltage V 18 18 12 Battery capacity Ah 4 2 2.5 maximum torque N-m 250 158 100 maximum screw 0 (8.8 -12.9) Ml 6 M14 M12 Number of impacts min-1 0-3200 0-3200 0 - 3450 Tool arbor drive profile External sguare drive HEX HEX Tool arbor size inch 1/2" 1/4" 1/4" Weight kg 1.8 1.5 1.1 maximum vibration to EN m/s2 6 6 14.5 typical application Heavy Duty Strong Tapper and accessories Electronic speed control for responsive starting. Sustained power for reliable performance. Integral reversing gear and quick backing out. FEIN sensitive handle for non-fatiguing and safe working. Integral switch for ease of use. Supplied with: Without drill chuck. With additional handle. A collet chuck (No. 075580 size 063012) or a jaw chuck (No. 075580 size 019009) is required for operation. Manufacturer ID 720938 1 07 5550 503.10 Manufacturer's designation GWP10 Power consumption W 450 maximum speed min-1 0-450 Toolholder B12 maximum machine tap 0 in steel M10 Weight kg 1.6 maximum vibration to EN m/s2 <2.5 Accessories 075550 Supplied with: Size 063012 - Collet chuck supplied with collets for taps to DIN 374 / 376, 0 3.5xsquare 2.7/0 4.5xsquare 3.4 / 0 6xsquare 4.9. Size 019009 - Universal jaw chuck, including chuck key. Size 009013 - Drifts, pack of 2. Manufacturer ID 063012 019009 1 009013 i 075580 Thread tapping accessories 68.76 70.08 23.24 _019009 063012 _009013 861
