858 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.858

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 858 0858 ENG Lab2u

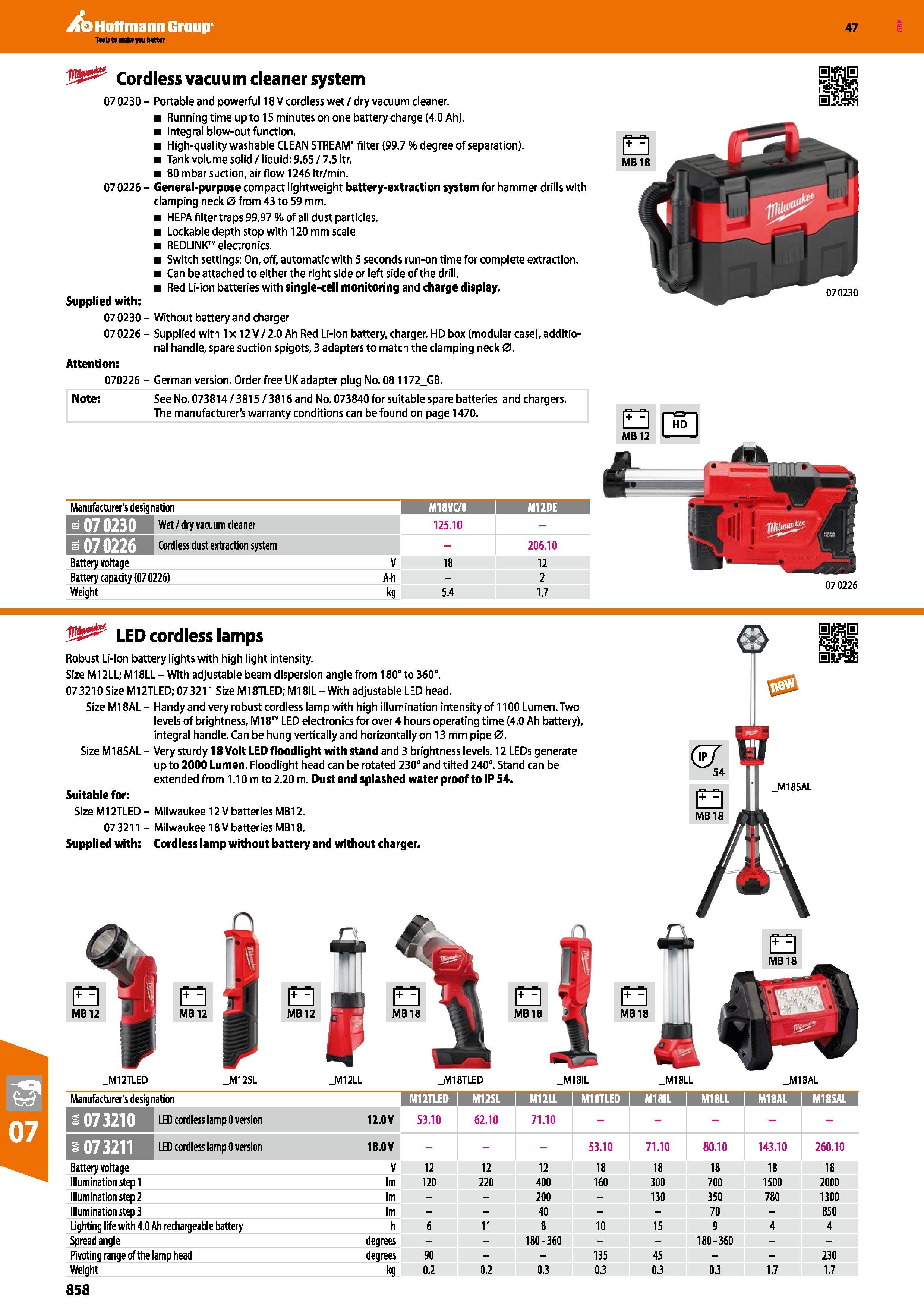

Hoffmann Group 47 Cordless vacuum cleaner system 07 0230 - Portable and powerful 18 V cordless wet / dry vacuum cleaner. Running time upto 15 minutes on one battery charge (4.0 Ah). Integral blow-out function. High-quality washable CLEAN STREAM' filter (99.7 % degree of separation). Tank volume solid / liquid: 9.65 / 7.5 Itr. 80 mbar suction, air flow 1246 Itr/min. 07 0226 - General-purpose compact lightweight battery-extraction system for hammer drills with clamping neck 0 from 43 to 59 mm. HEPA filter traps 99.97% of all dust particles. Lockable depth stop with 120 mm scale REDLINK electronics. Switch settings: On, off, automatic with 5 seconds run-on time for complete extraction. Can be attached to either the right side or left side of the drill. Red Li-ion batteries with single-cell monitoring and charge display. Supplied with: 07 0230 - Without battery and charger 070226 - Supplied with Ix 12 V/2.0 Ah Red Li-ion battery, charger. HD box (modular case),additional handle, spare suction spigots, 3 adapters to match the clamping neck 0. Attention: 070226 - German version. Order free UK adapter plug No. 081172_GB. Note: See No. 073814/3815 / 3816 and No. 073840 for suitable spare batteries and chargers. The manufacturer's warranty conditions can be found on page 1470. MB Manufacturer's designation M18VC/0 M12DE lir IJFZU Wet/dry vacuum cleaner 125.10 - Cordless dust extraction system - 206.10 Battery voltage V 18 12 Battery capacity (07 0226) A-h - 2 Weight kg 5.4 1.7 07 0226 LED cordless lamps Robust Li-Ion battery lights with high light intensity. Size Ml 2LL; Ml 8LL - With adjustable beam dispersion angle from 180° to 360°. 073210 Size M12TLED;073211 Size M18TLED; M18IL - With adjustable LED head. SizeM18AL- Handy and very robust cordless lamp with high illumination intensity of 1100 Lumen. Two levels of brightness, M18" LED electronics for over 4 hours operating time (4.0 Ah battery), integral handle. Can be hung vertically and horizontally on 13 mm pipe 0. Size M18SAL- Very sturdy 18 Volt LED floodlight withstand and 3 brightness levels. 12 LEDs generate up to 2000 Lumen. Floodlight head can be rotated 230° and tilted 240°. Stand can be extended from 1.10 m to 2.20 m. Dust and splashed water proof to IP 54. Suitable for: Size M12TLED - Milwaukee 12 V batteries MB12. 073211 - Milwaukee 18Vbatteries MB18. Supplied with: Cordless lamp without battery and without charger. E3 MB 12 M12TLED _M12SL M12LL _M18TLED Manufacturer's designation M12TLED 1 M12SL 1 M12LL I M18TLED 1 M18IL I M18LL 1 M18AL 1 M18SAL LED cordless lamp 0 version 12.0V 53.10 62.10 71.10 LED cordless lamp 0 version 18.0V 53.10 71.10 80.10 143.10 260.10 Battery voltage V 12 12 12 18 18 18 18 18 Illumination step 1 Im 120 220 400 160 300 700 1500 2000 Illumination step 2 Im 200 - 130 350 780 1300 Illumination step 3 Im 40 70 - 850 Lighting life with 4.0 Ah rechargeable battery h 6 11 8 10 15 9 4 4 Spread angle degrees 180-360 180-360 Pivoting range of the lamp head degrees 90 135 45 230 Weight kg 0.2 0.2 0.3 0.3 0.3 0.3 1.7 1.7 858 £3 9 E3 MB 18 >r I MB 18 _M 18IL _M18LL _M18AL
