860 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.860

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 860 0860 ENG Lab2u

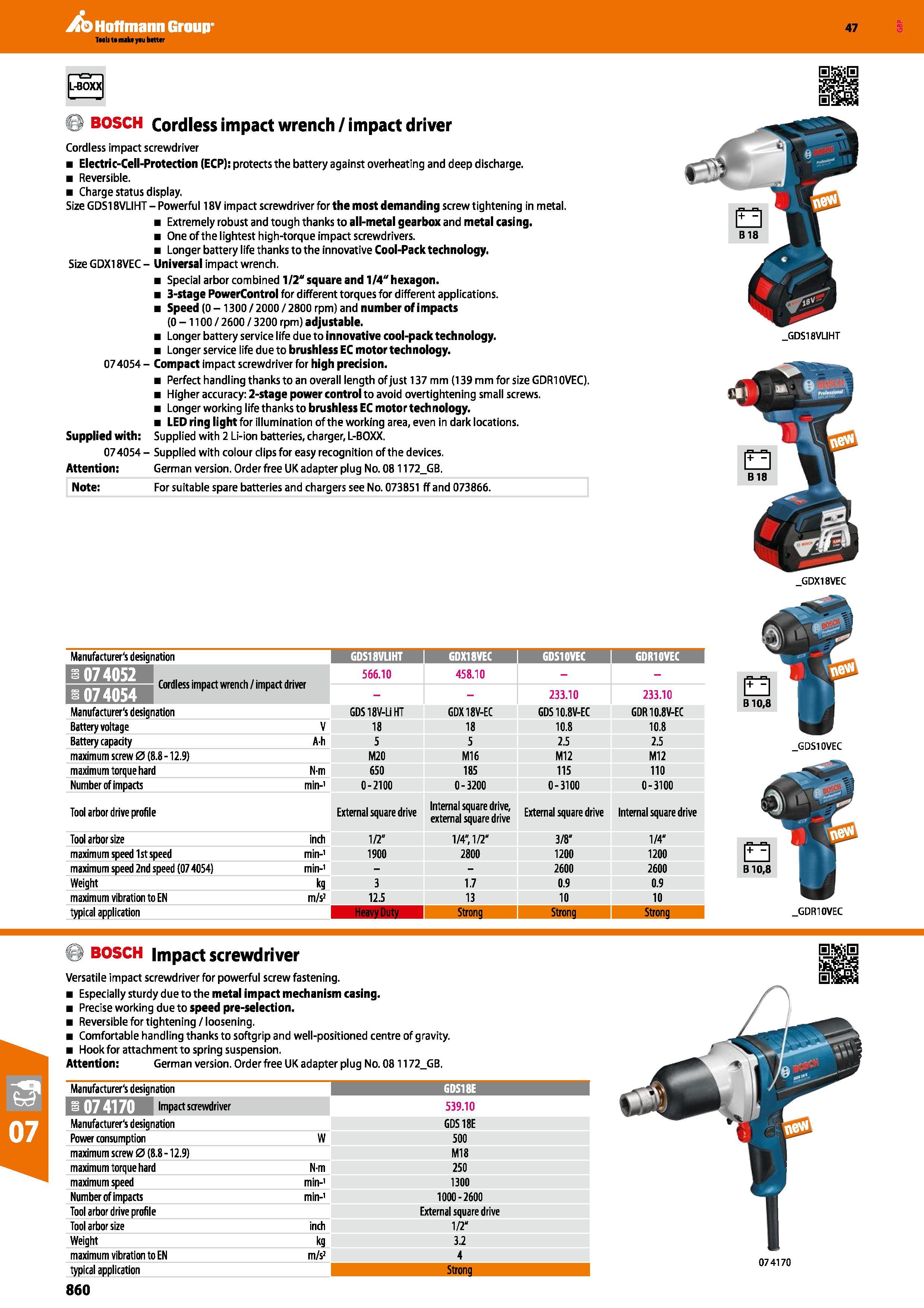

Hoffmann Group 47 Cordless impact screwdriver Electric-Cell-Protection (ECP): protects the battery against overheating and deep discharge. Reversible. Charge status display. Size GDS18VLIHT - Powerful 18V impact screwdriver for the most demanding screw tightening in metal. Extremely robust and tough thanks to all-metal gearbox and metal casing. One of the lightest high-torque impact screwdrivers. Longer battery life thanks to the innovative Cool-Pack technology. Size GDX18VEC - Universal impact wrench. Special arbor combined 1/2" square and 1/4" hexagon. 3-stage PowerControl for different torques for different applications. Speed (0 -1300 / 2000 / 2800 rpm) and number of i mpacts (0 -1100 / 2600 / 3200 rpm) adjustable. Longer battery service life due to innovative cool-pack technology. _GDS18VLIHT Longer service life due to brushless EC motor technology. 074054 - Compact impact screwdriver for high precision. Perfect handling thanks to an overall length of just 137 mm (139mmforsizeGDR10VEC). Higher accuracy: 2-stage power control to avoid overtightening small screws. Longer working life thanks to brushless EC motor technology. LED ring light for illumination of the working area, even in dark locations. Supplied with: Supplied with 2 Li-ion batteries, charger, L-BOXX. 074054 - Supplied with colour clips for easy recognition of the devices. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For suitable spare batteries and chargers see No. 073851 ff and 073866. GDX18VEC Manufacturer's designation GDS18VLIHT GDX18VEC GDS10VEC GDR10VEC j IHiVf iV’fl 566.10 458.10 Cordless impact wrench / impact driver 233.10 233.10 Manufacturer's designation GDS18V-UHT GDX18V-EC GDS 10.8V-EC GDR10.8V-EC Battery voltage V 18 18 10.8 10.8 Battery capacity Ah 5 5 2.5 2.5 maximum screw 0 (8.8 -12.9) M20 M16 M12 M12 maximum torque hard N-m 650 185 115 110 Number of impacts min-1 0-2100 0-3200 0-3100 0-3100 Tool arbor drive profile External square drive Internal square drive, external square drive External square drive Internal square drive Tool arbor size inch 1/2" 1/4", 1/2“ 3/8" 1/4" maximum speed 1st speed min-1 1900 2800 1200 1200 maximum speed 2nd speed (07 4054) min-1 2600 2600 Weight kg 3 1.7 0.9 0.9 maximum vibration to EN m/s2 12.5 13 10 10 typical application Strong Strong Strong _GDS10VEC GDR10VEC BOSCH Impact screwdriver Versatile impact screwdriver for powerful screw fastening. Especially sturdy due to the metal impact mechanism casing. Precise working due to speed pre-selection. Reversible for tightening / loosening. Comfortable handling thanks to softgripand well-positioned centre of gravity. Hook for attachment to spring suspension. Attention: German version. Order free UK adapter plug No. 081172_GB. Manufacturer's designation GDS18E j sflVJlWlM Imnactscrewdriver 539.10 Manufacturer's designation GDS18E Power consumption W 500 maximum screw 0 (8.8 -12.9) M18 maximum torque hard N-m 250 maximum speed min-1 1300 Number of impacts min-1 1000 - 2600 Tool arbor drive profile External square drive Tool arbor size inch 1/2“ Weight kg 3.2 maximum vibration to EN m/s2 4 typical application Strong 074170 860
