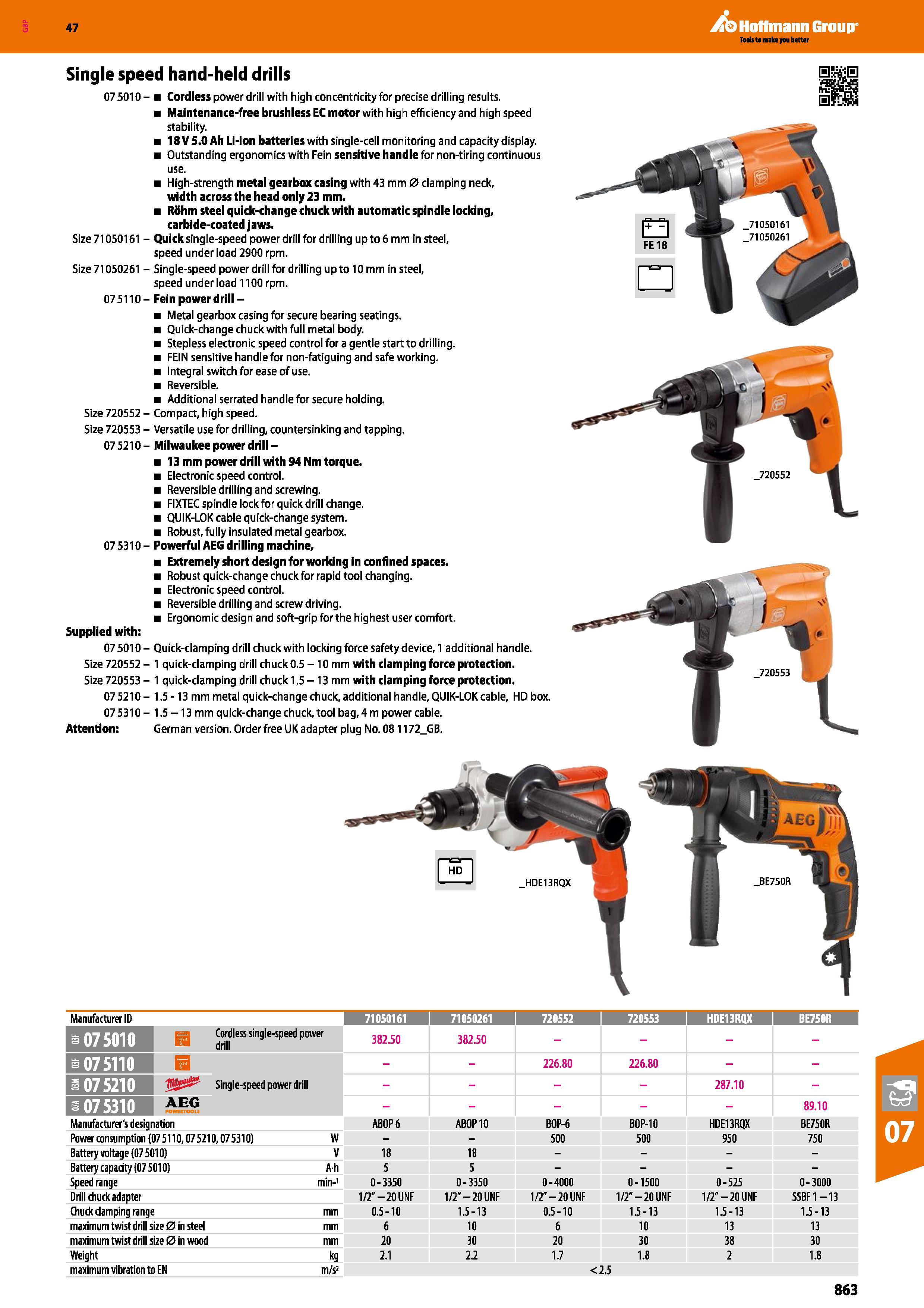

Hoffmann Group 47 Single speed hand-held drills 075010- Cordless power drill with high concentricity for precise drilling results. Maintenance-free brushless EC motor with high efficiency and high speed stability. 18 V 5.0 Ah Li-ion batteries with single-cell monitoring and capacity display. Outstanding ergonomics with Fein sensitive handle for non-tiring continuous use. High-strength metal gearbox casing with 43 mm 0 clamping neck, width across the head only 23 mm. Rohm steel quick-change chuck with automatic spindle locking, carbide-coated jaws. Size 71050161 - Quick single-speed power drill for drilling up to 6 mm in steel, speed under load 2900 rpm. Size 71050261 - Single-speed power drill for drilling upto 10 mm in steel, speed under load 1100 rpm. 075110- Fein power drill- Metal gearbox casing for secure bearing seatings. Quick-change chuck with full metal body. Stepless electronic speed control for a gentle start to drilling. FEIN sensitive handle for non-fatiguing and safe working. Integral switch for ease of use. Reversible. Additional serrated handle for secure holding. Size 720552 - Compact, high speed. Size 720553 - Versatile use for drilling, countersinking and tapping. 075210- Milwaukee power drill- 13 mm power drill with 94 Nm torque. Electronic speed control. Reversible drilling and screwing. FIXTEC spindle lock for quick drill change. QUIK-LOK cable quick-change system. Robust, fully insulated metal gearbox. 07 5310 - Powerful AEG drilling machine, Extremely short design for working in confined spaces. Robust quick-change chuck for rapid tool changing. Electronic speed control. Reversible drilling and screw driving. Ergonomic design and soft-grip for the highest user comfort. Supplied with: 075010- Quick-clamping drill chuck with locking force safety device, 1 additional handle. Size 720552 - 1 quick-damping drill chuck 0.5-10 mm with clamping force protection. Size 720553 - 1 quick-damping drill chuck 1.5 - 13 mm with clamping force protection. 075210- 1.5-13 mm metal quick-change chuck, additional handle, QUIK-LOK cable, HD box. 07 5310 - 1.5 -13 mm quick-change chuck, tool bag, 4 m power cable. Attention: German version. Order free UK adapter plug No. 081172_GB. "T'-' 720553 M A I ’ Manufacturer ID 1 71050161 i 71050261 720552 I 720553 HDE13RQX 1 BE750R j b 075010 ess Cordless single-speed power drill 382.50 382.50 - 075110 El 226.80 226.80 1075210 j Single-speed power drill - 287.10 - 075310 AEG POW1RTOOLJ 89.10 Manufacturer's designation AB0P6 ABOPIO B0P-6 B0P-10 HDE13RQX BE750R Power consumption (07 5110,07 5210,07 5310) w 500 500 950 750 Battery voltage (07 5010) V 18 18 - Battery capacity (07 5010) Ah 5 5 - Speed range min-1 0-3350 0-3350 0-4000 0-1500 0-525 0-3000 Drill chuck adapter 1/2"-20 UNF 1/2"-20 UNF 1/2"-20 UNF 1/2"-20 UNF 1/2"-20 UNF SSBFl-13 Chuck clamping range mm 0.5-10 1.5-13 0.5-10 1.5-13 1.5-13 1.5-13 maximum twist drill size 0 in steel mm 6 10 6 10 13 13 maximum twist drill size 0 in wood mm 20 30 20 30 38 30 Weight kg 2.1 2.2 1.7 1.8 2 1.8 maximum vibration to EN m/s2 <2.5 863
