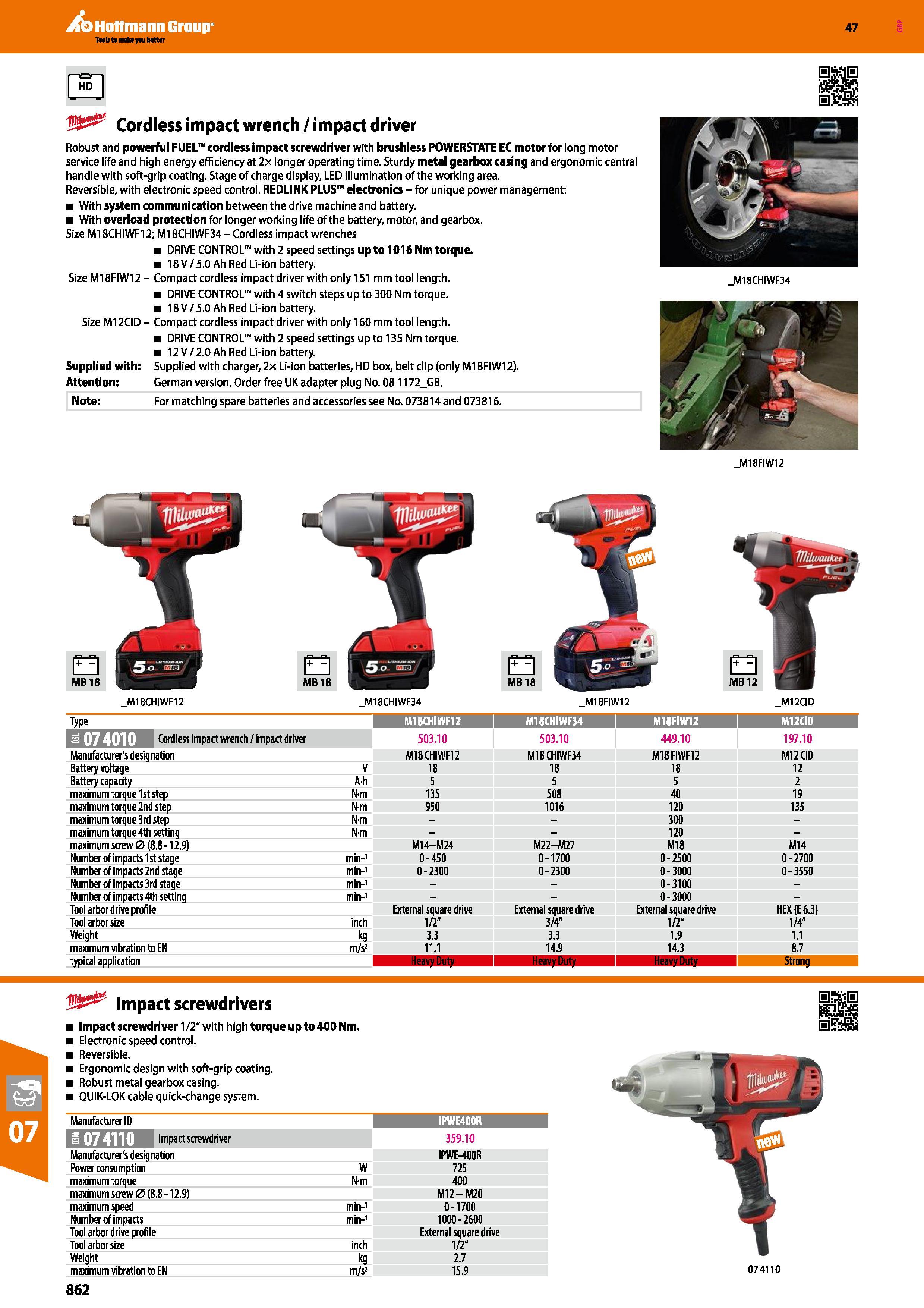

862 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.862

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 862 0862 ENG Lab2u

128 Cordless impact wrench / impact driver Robust and powerful FUEL cordless impact screwdriver with brushless POWERSTATE EC motor for long motor service life and high energy efficiency at 2x longer operating time. Sturdy metal gearbox casing and ergonomic central handle with soft-grip coating. Stage of charge display, LED illumination of the working area. Reversible, with electronic speed control. REDLINK PLUS electronics - for unique power management: With system communication between the drive machine and battery. With overload protection for longer working life of the battery, motor, and gearbox. Size Ml 8CHIWF12; Ml 8CHIWF34-Cordless impact wrenches DRIVE CONTROL with 2 speed settings up to 1016 Nm torque. 18V/5.0Ah Red Li-ion battery. SizeM18FIW12- Compact cordless impact driver with only 151 mm tool length. _M18CHIWF34 DRIVE CONTROL with 4 switch steps up to 300 Nm torque. 18V/5.0Ah Red Li-ion battery. Size Ml 2CID - Compact cordless impact driver with only 160 mm tool length. DRIVE CONTROL with 2 speed settings up to 135 Nm torque. 12V/2.0Ah Red Li-ion battery. Supplied with: Supplied with charger, 2x Li-ion batteries, HD box, belt clip (only M18FIW12). Attention: German version. Order free UK adapter plug No. 081172_GB. Note: For matching spare batteries and accessories see No. 073814 and 073816. _M18FIW12 £3 MB 18 _M18CHIWF12 _M18CHIWF34 _M18FIW12 _M12CID Type 1 M18CHIWF12 ( M18CHIWF34 j M18FIW12 1 M12CID j Cordless impact wrench/impact driver 503.10 503.10 449.10 197.10 Manufacturer's designation M18CHIWF12 M18CHIWF34 M18FIWF12 M12CID Battery voltage V 18 18 18 12 Battery capacity A-h 5 5 5 2 maximum torque 1st step N-m 135 508 40 19 maximum torque 2nd step N-m 950 1016 120 135 maximum torque 3rd step N-m _ _ 300 _ maximum torque 4th setting N-m 120 - maximum screw 0 (8.8-12.9) M14-M24 M22-M27 Ml 8 M14 Number of impacts 1st stage min-1 0-450 0-1700 0-2500 0-2700 Number of impacts 2nd stage min-1 0-2300 0-2300 0-3000 0-3550 Number of impacts 3rd stage min-1 0-3100 - Number of impacts 4th setting min-1 0-3000 - Tool arbor drive profile External square drive External square drive External square drive HEX (E 6.3) Tool arbor size inch 1/2" 3/4" 1/2" 1/4" Weight kg 3.3 3.3 1.9 1.1 maximum vibration to EN m/s2 11.1 14.9 14.3 8.7 typical application I Strong Impact screwdrivers Impact screwdriver 1/2" with high torque up to 400 Nm. Electronic speed control. Reversible. Ergonomic design with soft-grip coating. Robust metal gearbox casing. QUIK-LOK cable quick-change system. Manufacturer ID IPWE400R 1 Impact screwdriver 359.10 Manufacturer's designation IPWE-400R Power consumption W 725 maximum torque N-m 400 maximum screw 0 (8.8 -12.9) M12-M20 maximum speed min-1 0-1700 Number of impacts min-1 1000 - 2600 Tool arbor drive profile External square drive Tool arbor size inch 1/2“ Weight kg 2.7 maximum vibration to EN m/s2 15.9 074110 862
