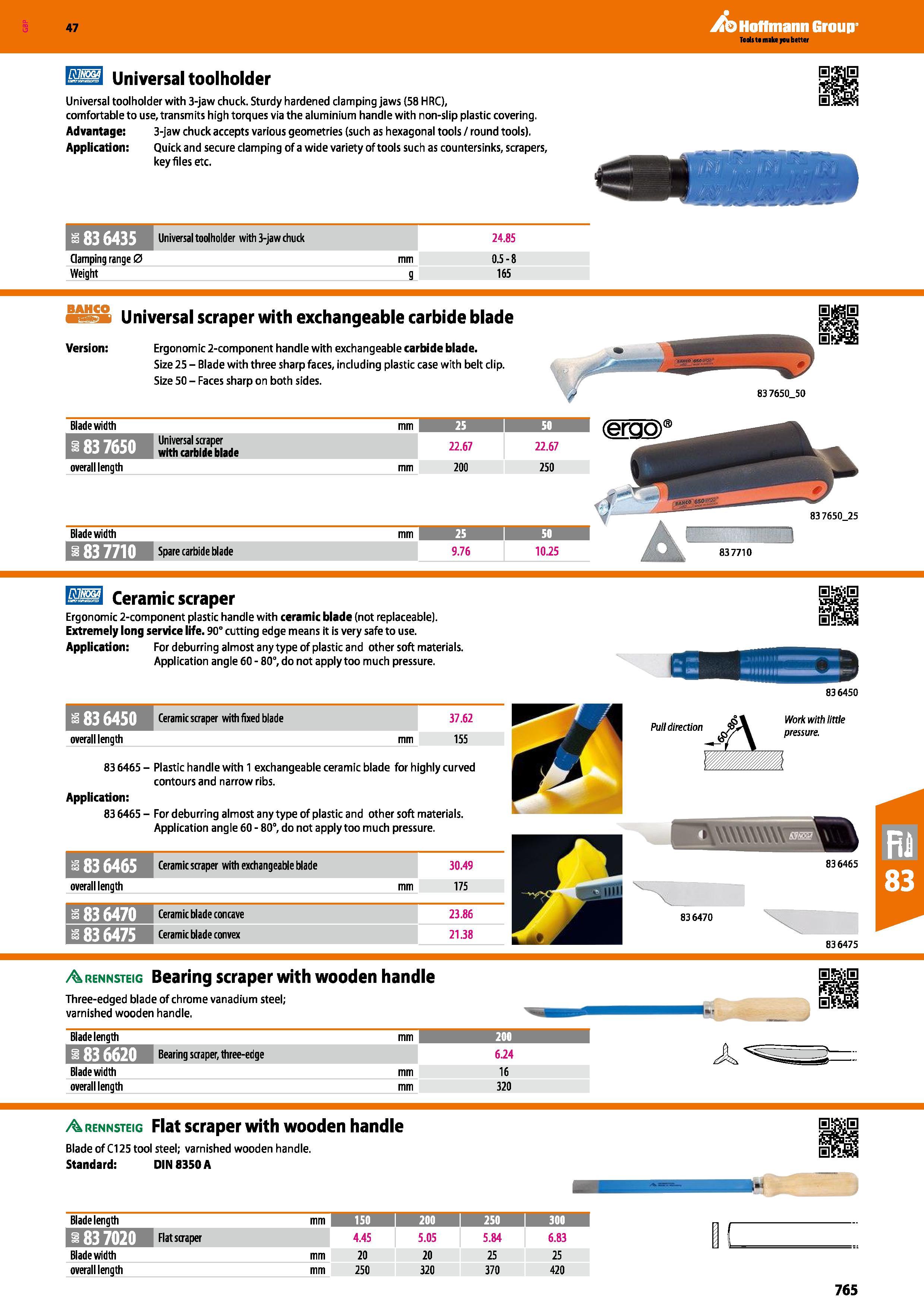

Hoffmann Group 47 Universal toolholder Universal toolholder with 3-jaw chuck. Sturdy hardened clamping jaws (58 HRC), comfortable to use, transmits high torques via the aluminium handle with non-slip plastic covering. Advantage: 3-jaw chuck accepts various geometries (such as hexagonal tools / round tools). Application: Quick and secure clamping of a wide variety of tools such as countersinks, scrapers, key files etc. Ejf cffcvS Universal toolholder with 3-jaw chuck 24.85 Clamping range 0 mm 0.5-8 Weight g 165 BAHCO Version: Universal scraper with exchangeable carbide blade Ergonomic 2-component handle with exchangeable carbide blade. Size 25 - Blade with three sharp faces, including plastic case with belt clip. Size 50 - Faces sharp on both sides. Bladewidth mm 25 1 50 183 7650 Universal scraper with carbide blade 22.67 22.67 overall length mm 200 250 Bladewidth mm 25 1 50 1183 7710 Spare carbide blade 9.76 10.25 83 7650_25 837710 EMj Ceramic scraper Ergonomic 2-component plastic handle with ceramic blade (not replaceable). Extremely long service life. 90° cutting edge means it is very safe to use. Application: For deburring almost any type of plastic and other soft materials. Application angle 60 - 80°, do not apply too much pressure. 836450 overall length Ceramic scraper with fixed blade 83 6465 - Plastic handle with 1 exchangeable ceramic blade for highly curved contours and narrow ribs. Application: 83 6465 - For deburring almost any type of plastic and other soft materials. Application angle 60-80°,do not apply too much pressure. i 83 6465 overall length Ceramic scraper with exchangeable blade s 83 6470 Ceramic blade concave s 83 6475 Ceramic blade convex 23.86 21.38 836475 Arennsteig Bearing scraper with wooden handle Three-edged blade of chrome vanadium steel; varnished wooden handle. Blade length mm 200 j Bearing scraper, three-edge 6.24 Bladewidth mm 16 overall length mm 320 Arennsteig Flat scraper with wooden handle Blade of C125 tool steel; varnished wooden handle. Standard: DIN 8350 A Blade length mm 150 I 200 I 250 I 300 1183 7020 EBB 4.45 5.05 5.84 6.83 Bladewidth mm 20 20 25 25 overall length mm 250 320 370 420 765
