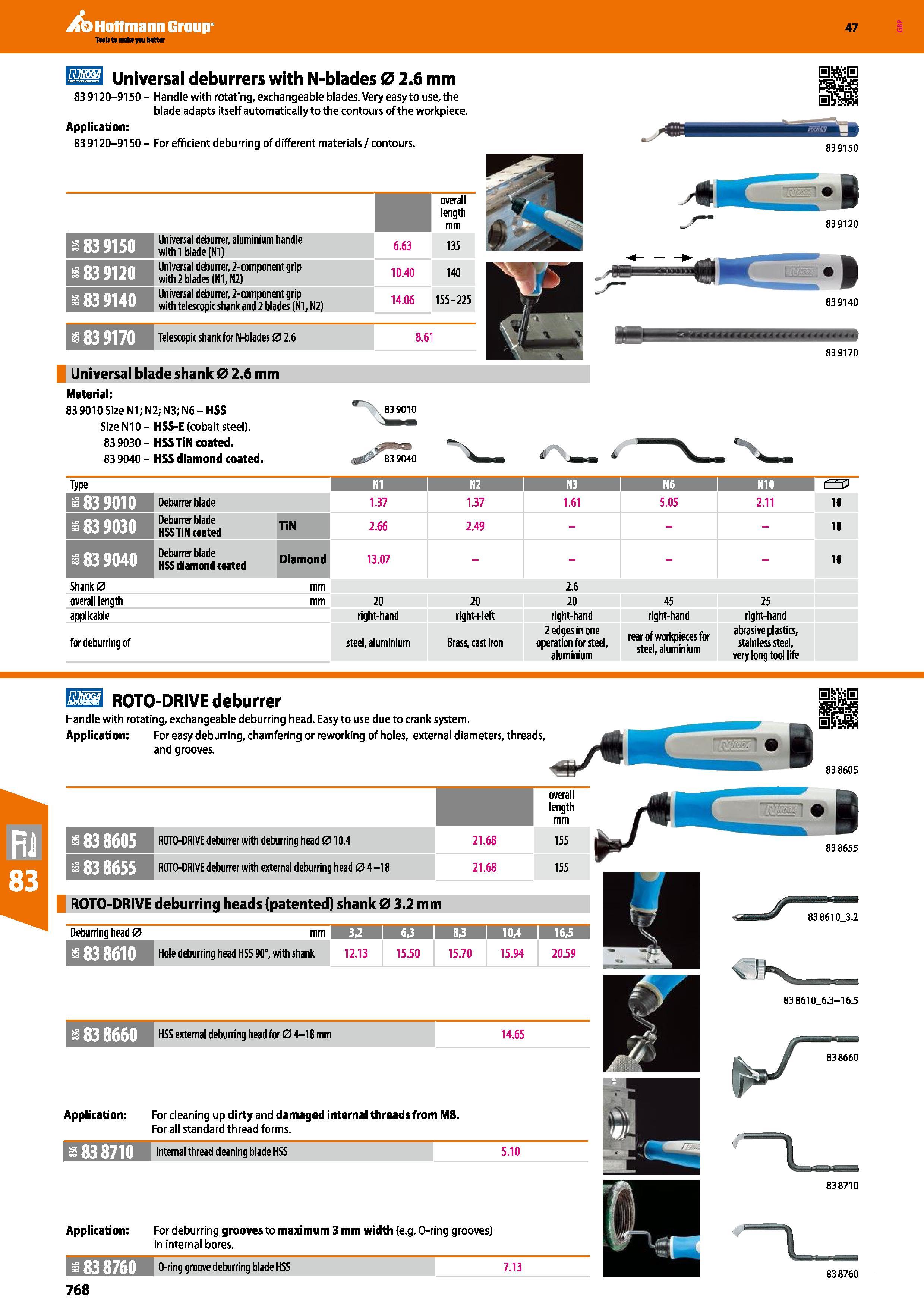

llll Universal deburrers with N-blades 0 2.6 mm 83 9120-9150 - Handle with rotating, exchangeable blades. Very easy to use, the blade adapts itself automatically to the contours of the workpiece. Application: 83 9120-9150 - For efficient deburring of different materials / contours. 839150 overall length mm i 839150 Universal deburrer, aluminium handle with 1 blade (N1) 6.63 135 S3 83 9120 Universal deburrer, 2-component grip with 2 blades (N1,N2) 10.40 140 1 839140 Universal deburrer, 2-component grip with telescopic shank and 2 blades (N1, N2) 14.06 155-225 1 839170 Telescopic shank for N-blades 0 2.6 8.61 Universal blade shank 0 2.6 mm Material: 83 9010 Size N1; N2; N3; N6 - HSS Size N10 - HSS-E (cobalt steel). 839030- HSS TiN coated. 83 9040 - HSS diamond coated. 839010 839040 f 839140 839170 Type N1 N2 I N3 I N6 Nit O 83 9010 Deburrer blade 1.37 1.37 1.61 5.05 2.11 10 839030 Deburrer blade HSS TiN coated TiN 2.66 2.49 10 83 9040 Deburrer blade HSS diamond coated Diamond 13.07 - 10 Shank 0 mm 2.6 overall length mm 20 20 20 45 25 applicable right-hand right+left right-hand right-hand right-hand for deburring of steel, aluminium Brass, cast iron 2 edges in one operation for steel, aluminium rear of workpieces for steel, aluminium abrasive plastics, stainless steel, very long tool life mm ROTO-DRIVE deburrer Handle with rotating, exchangeable deburring head. Easy to use due to crank system. Application: For easy deburring, chamfering or reworking of holes, external diameters, threads, and grooves. overall length mm 838605 ROTO-DRIVE deburrer with deburring head 010.4 21.68 155 83 8655 ROTO-DRIVE deburrer with external deburring head 0 4 -18 21.68 155 838605 ROTO-DRIVE deburring heads (patented) shank 0 3.2 mm Deburring head 0 mm 3,2 i 6,3 i 8,3 i 10/4 i 16,5 1 838610 Hole deburring head HSS 90°, with shank 12.13 15.50 15.70 15.94 20.59 838660 Application: 1838710 Application: 83 8760 768 HSS external deburring head for 0 4-18 mm 14.65 For cleaning up dirty and damaged internal threads from M8. For all standard thread forms. Internal thread cleaning blade HSS 5.10 For deburring grooves to maximum 3 mm width (e.g. O-ring grooves) in internal bores. 0-ring groove deburring blade HSS 7.13 83 8610_6.3-16.5 838660 838710 838760 838655
