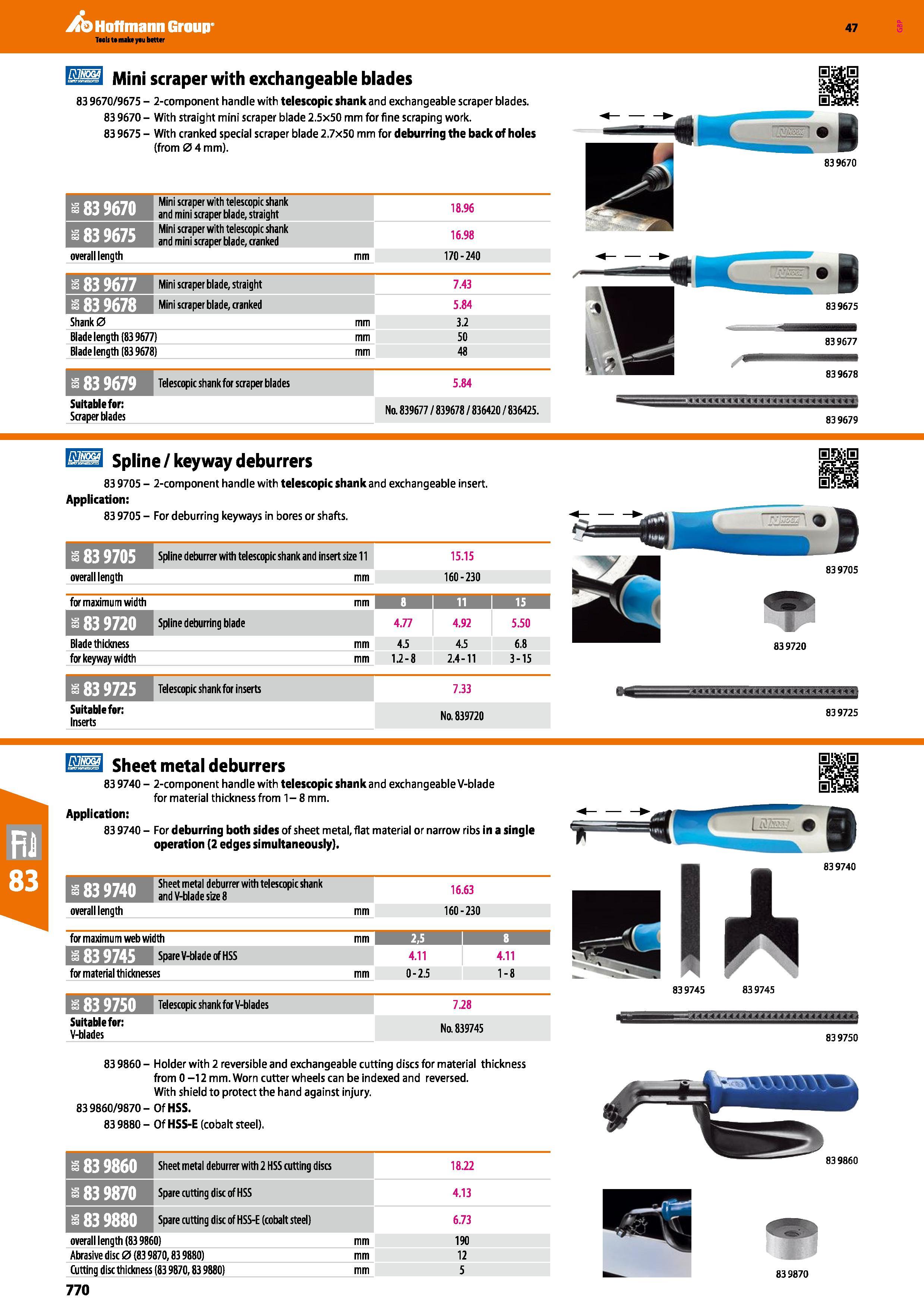

Hoffmann Group 47 Hi Mini scraper with exchangeable blades 83 9670/9675 - 2-component handle with telescopic shank and exchangeable scraper blades. 83 9670 - With straight mini scraper blade 2.5x50 mm for fine scraping work. 83 9675 - With cranked special scraper blade 2.7x50 mm for deburring the back of holes (from 0 4 mm). 18.96 16.98 170-240 83 9670 Mini scraper with telescopic shank and mini scraper blade, straight 83 9675 Mini scraper with telescopic shank and mini scraper blade, cranked overall length a 83 9677 Mini scraper blade, straight 7.43 83 9678 Mini scraper blade, cranked 5.84 Shank 0 mm 3.2 Blade length (83 9677) mm 50 Blade length (839678) mm 48 s 83 9679 Telescopic shank for scraper blades 5.84 Suitable for: Scraper blades Na 839677 / 839678 / 836420 / 836425. 839670 839675 83 9677 839678 839679 bH Spline / keyway deburrers 839705 - 2-component handle with telescopic shank and exchangeable insert. Application: 83 9705 - For deburring keyways in bores or shafts. s 83 9705 Spline deburrer with telescopic shank and insert size 11 15.15 overall length mm 160-230 for maximum width i 83 9720 Blade thickness for keyway width 11 15 Spline deburring blade 4.77 mm 4.5 mm 1.2-8 4.92 5.50 4.5 6.8 2.4-11 3-15 839720 tll'rr/AfB Telescopic shank for inserts 7.33 p Suitable for: Inserts No. 839720 839725 E£H3 Sheet metal deburrers 83 9740 - 2-component handle with telescopic shank and exchangeable V-blade for material thickness from 1-8 mm. Application: 83 9740 - For deburring both sides of sheet metal, flat material or narrow ribs in a single operation (2 edges simultaneously). b 83 9740 Sheet metal deburrer with telescopic shank and V-blade size 8 16.63 overall length mm 160 - 230 for maximum web width mm 2,5 1 8 £839745 Spare V-blade of HSS 4.11 4.11 for material thicknesses mm 0-2.5 1-8 839750 Telescopic shank for V-blades 7.28 Suitable for: V-blades No. 839745 83 9860 - Holder with 2 reversible and exchangeable cutting discs for material thickness from 0 -12 mm. Worn cutter wheels can be indexed and reversed. With shield to protect the hand against injury. 839860/9870- Of HSS. 83 9880 - Of HSS-E (cobalt steel). 839750 Sheet metal deburrer with 2 HSS cutting discs 18.22 Spare cutting disc of HSS 4.13 Spare cutting disc of HSS-E (cobalt steel) 6.73 overall length (83 9860) mm 190 Abrasive disc 0(83 9870,83 9880) mm 12 Cutting disc thickness (83 9870,83 9880) mm 5 770 839870 839860
