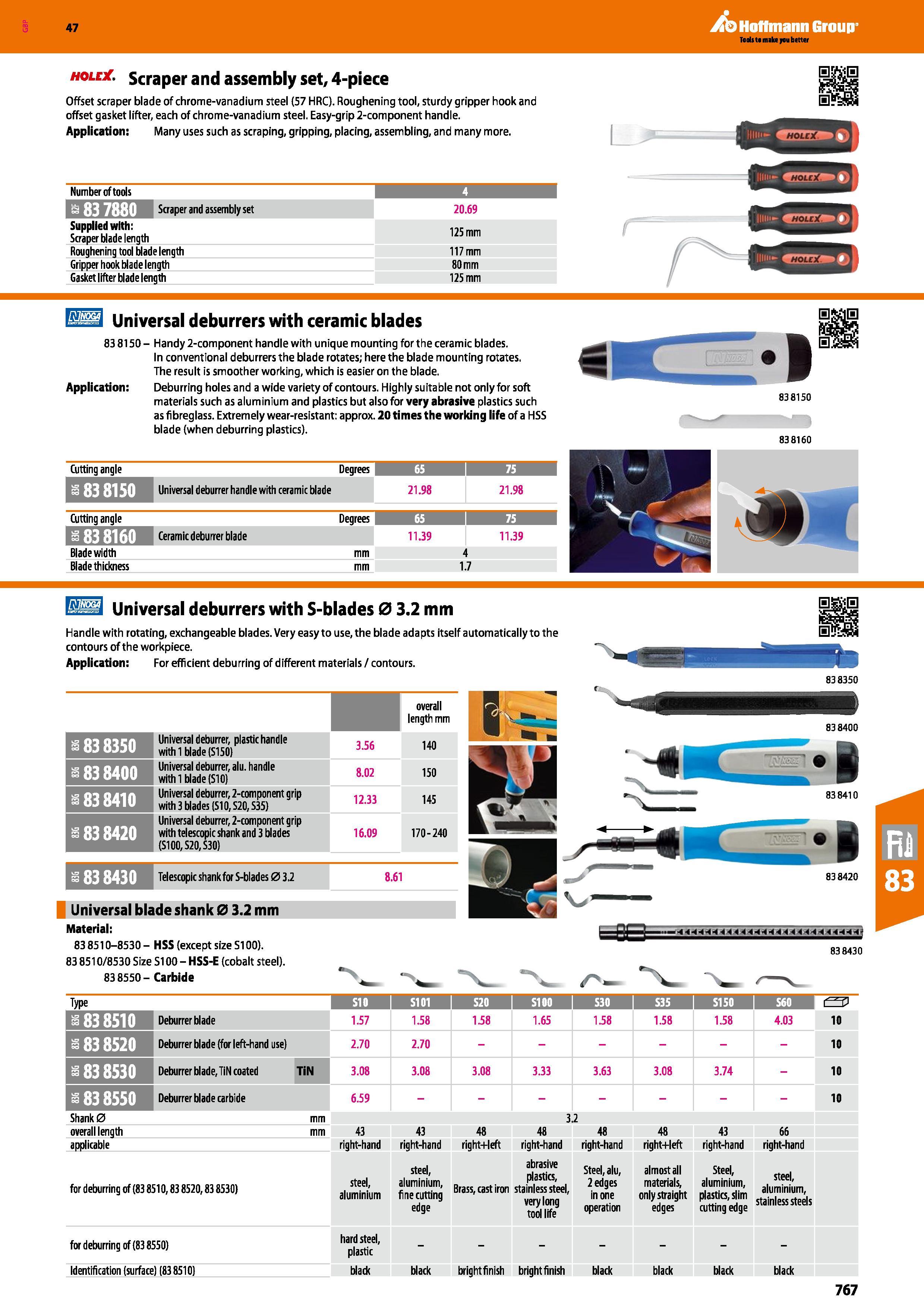

Hoffmann Group 47 hole . Scraper and assembly set, 4-piece Offset scraper blade of chrome-vanadium steel (57 HRC). Roughening tool, sturdy gripper hook and offset gasket lifter, each of chrome-vanadium steel. Easy-grip 2-component handle. Application: Many uses such as scraping, gripping, placing, assembling, and many more. Number of tools a 83 7880 Scraper and assembly set 20.69 Supplied with: Scraper blade length 125 mm Roughening tool blade length Gripper hook blade length Gasket lifter blade length 117 n 80 mm 125 mm llll Universal deburrers with ceramic blades 838150- Handy 2-component handle with unique mounting forthe ceramic blades. In conventional deburrers the blade rotates; here the blade mounting rotates. The result is smoother working, which is easier on the blade. Application: Deburring holes and a wide variety of contours. Highly suitable not only for soft materials such as aluminium and plastics but also for very abrasive plastics such as fibreglass. Extremely wear-resistant: approx. 20 times the working life of a HSS blade (when deburring plastics). Cutting angle Degrees 65 I 75 Universal deburrer handle with ceramic blade 21.98 21.98 Cutting angle Ceramic deburrer blade Blade width Blade thickness Degrees mm 11.39 11.39 4 1.7 838150 838160 llll Universal deburrers with S-blades 0 3.2 mm Handle with rotating, exchangeable blades. Very easy to use, the blade adapts itself automatically to the contours of the workpiece. Application: For efficient deburring of different materials / contours. overall length mm 83 8350 Universal deburrer, plastic handle with 1 blade (S150) 3.56 140 83 8400 Universal deburrer, alu. handle with 1 blade (S10) 8.02 150 838410 Universal deburrer, 2-component grip with 3 blades (S10, S20, S35) 12.33 145 838420 Universal deburrer, 2-component grip with telescopic shank and 3 blades (S100,S20,S30) 16.09 170-240 1838430 Telescopic shank for S-blades 0 3.2 8.61 Universal blade shank 0 3.2 mm 838400 Material: 83 8510-8530 - HSS (except size SI 00). 83 8510/8530 Size S100 - HSS-E (cobalt steel). 838550- Carbide 83 8430 Type S10 : sioi j S20 I S100 S30 1 S35 i S150 838510 Deburrer blade 1.57 1.58 1.58 1.65 1.58 1.58 1.58 4.03 10 83 8520 Deburrer blade (for left-hand use) 2.70 2.70 10 83 8530 Deburrer blade, TiN coated TiN 3.08 3.08 3.08 3.33 3.63 3.08 3.74 - 10 83 8550 Deburrer blade carbide 6.59 - 10 Shank 0 mm 3.2 overall length mm 43 43 48 48 48 48 43 66 applicable right-hand right-hand right+left right-hand right-hand right+left right-hand right-hand for deburring of (83 8510,83 8520,83 8530) steel, aluminium steel, aluminium, fne cutting edge Brass, cast iron abrasive plastics, stainless steel, very long tool life Steel, alu, 2 edges in one operation almost all materials, only straight edges Steel, aluminium, plastics, slim cutting edge steel, aluminium, stainless steels for deburring of (83 8550) hard steel, plastic - Identification (surface) (838510) black black bright finish bright finish black black black black 767
