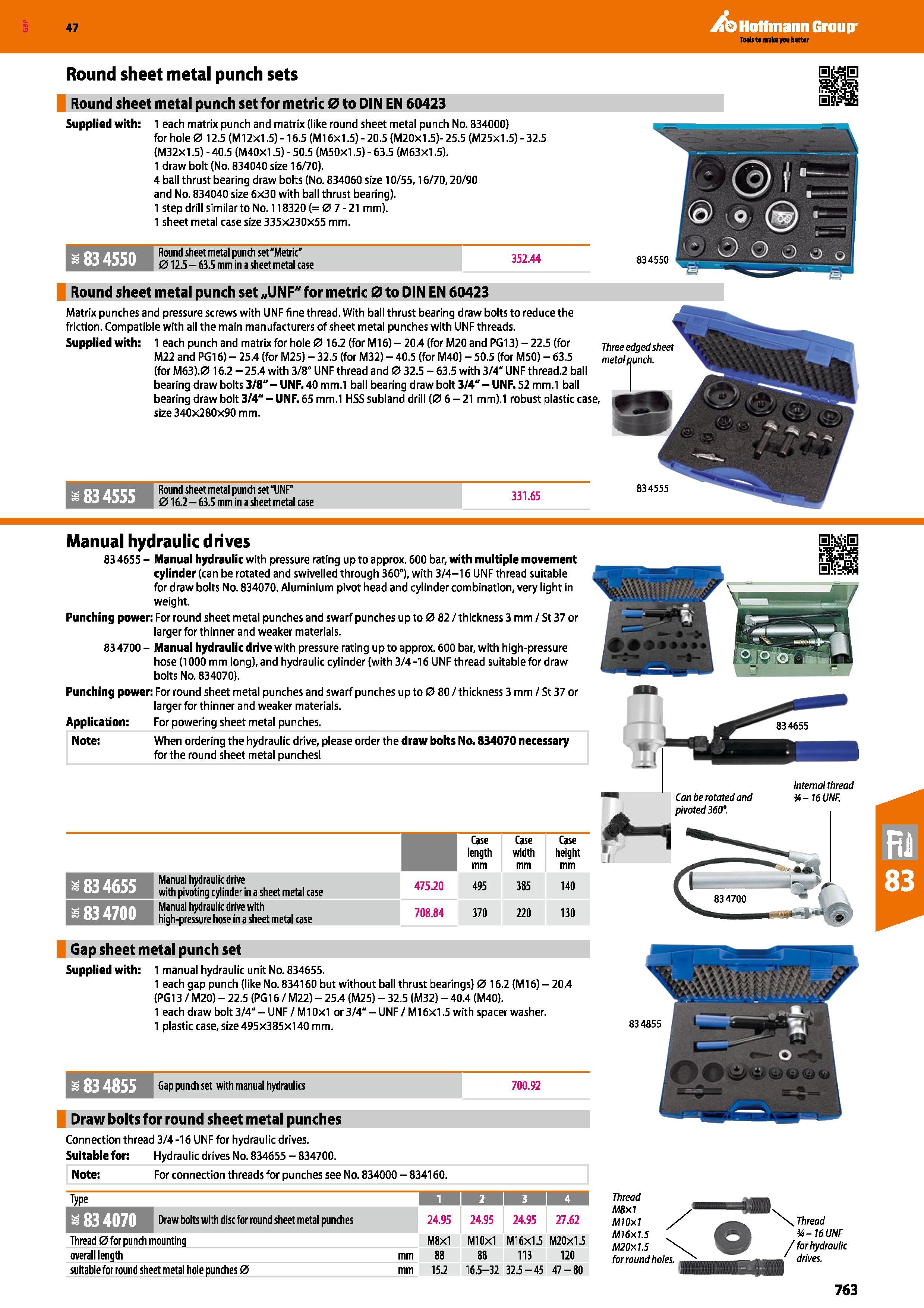

Hoffmann Group 47 Round sheet metal punch sets Round sheet metal punch set for metric 0 to DIN EN 60423 Supplied with: 1 each matrix punch and matrix (like round sheet metal punch No. 834000) for hole 0 12.5 (Ml 2x1.5) -16.5 (Ml6x1.5) - 20.5 (M20x1.5)- 25.5 (M25x1.5) - 32.5 (M32X1.5) - 40.5 (M40X1.5) - 50.5 (M50X1.5) - 63.5 (M63X1.5). 1 draw bolt (No. 834040 size 16/70). 4 ball thrust bearing draw bolts (No. 834060 size 10/55,16/70,20/90 and No. 834040 size 6x30 with ball thrust bearing). 1 step drill similar to No. 118320 (= 0 7 - 21 mm). 1 sheet metal case size 335x230x55 mm. i 83 4550 Round sheet metal punch set"Metric” 012.5 - 63.5 mm in a sheet metal case 352.44 Round sheet metal punch set „UNF"for metric 0 to DIN EN 60423 a 83 4555 834550 Matrix punches and pressure screws with UNF fine thread. With ball thrust bearing draw bolts to reduce the friction. Compatible with all the main manufacturers of sheet metal punches with UNF threads. Supplied with: 1 eachpunchandmatrixforhole016.2(forM16)-2O.4(forM2OandPG13)-22.5(for jhree M22 and PG16) - 25.4 (for M25) - 32.5 (for M32) - 40.5 (for M40) - 50.5 (for M50) - 63.5 metai (for M63).0 16.2 - 25.4 with 3/8" UNF thread and 0 32.5 - 63.5 with 3/4" UNF thread.2 ball bearing draw bolts 3/8"-UNF. 40 mm.1 ball bearing draw bolt 3/4"-UNF. 52 mm.1 ball bearing draw bolt 3/4"-UNF. 65 mm.1 HSS subland drill (0 6-21 mm).1 robust plastic case, size 340x280x90 mm. Round sheet metal punch set“UNF" i 834555 016.2 - 63.5 mm in a sheet metal case Manual hydraulic drives 83 4655 - Manual hydraulic with pressure rating up to approx. 600 bar, with multiple movement cylinder (can be rotated and swivelled through 360°), with 3/4-16 UNF thread suitable for draw bolts No. 834070. Aluminium pivot head and cylinder combination, very light in weight. Punching power: For round sheet metal punches and swarf punches up to 0 82 / thickness 3 mm / St 37 or larger for thinner and weaker materials. 83 4700 - Manual hydraulic drive with pressure rating up to approx. 600 bar, with high-pressure hose (1000 mm long), and hydraulic cylinder (with 3/4 -16 UNF thread suitable for draw bolts No. 834070). Punching power: For round sheet metal punches and swarf punches up to 0 80 / thickness 3 mm / St 37 or larger for thinner and weaker materials. Application: For powering sheet metal punches. Note: When ordering the hydraulic drive, please order the draw bolts Na 834070 necessary for the round sheet metal punches Case length mm Case width mm Case height mm 83 4655 Manual hydraulic drive with pivoting cylinder in a sheet metal case 475.20 495 385 140 83 4700 Manual hydraulic drive with high-pressure hose in a sheet metal case 708.84 370 220 130 Gap sheet metal punch set Supplied with: 1 manual hydraulic unit No. 834655. 1 each gap punch (like No. 834160 but without ball thrust bearings) 0 16.2 (M16) - 20.4 (PG13 / M20) - 22.5 (PG16 / M22) - 25.4 (M25) - 32.5 (M32) - 40.4 (M40). 1 each draw bolt 3/4"-UNF/M10x1 or 3/4" - UNF/M16x1.5 with spacer washer. 1 plastic case, size 495x385x140 mm. a 83 4855 Gap punch set with manual hydraulics 700.92 Draw bolts for round sheet metal punches Connection thread 3/4-16 UNF for hydraulic drives. Suitable for: Hydraulic drives No. 834655 - 834700. Note: For connection threads for pu nches see No. 834000 - 834160. Type H i 1 2 1 3 1 4 Ipf :tF l r7M Draw bolts with disc for round sheet metal punches 24.95 24.95 24.95 27.62 Thread 0 for punch mounting M8x1 M10x1 M16X1.5 M20x1J> overall length mm 88 88 113 120 suitable for round sheet metal hole punches 0 mm 15.2 16.5-32 32.5-45 47-80 \ Thread %-16 UNF / for hydraulic drives. 763
