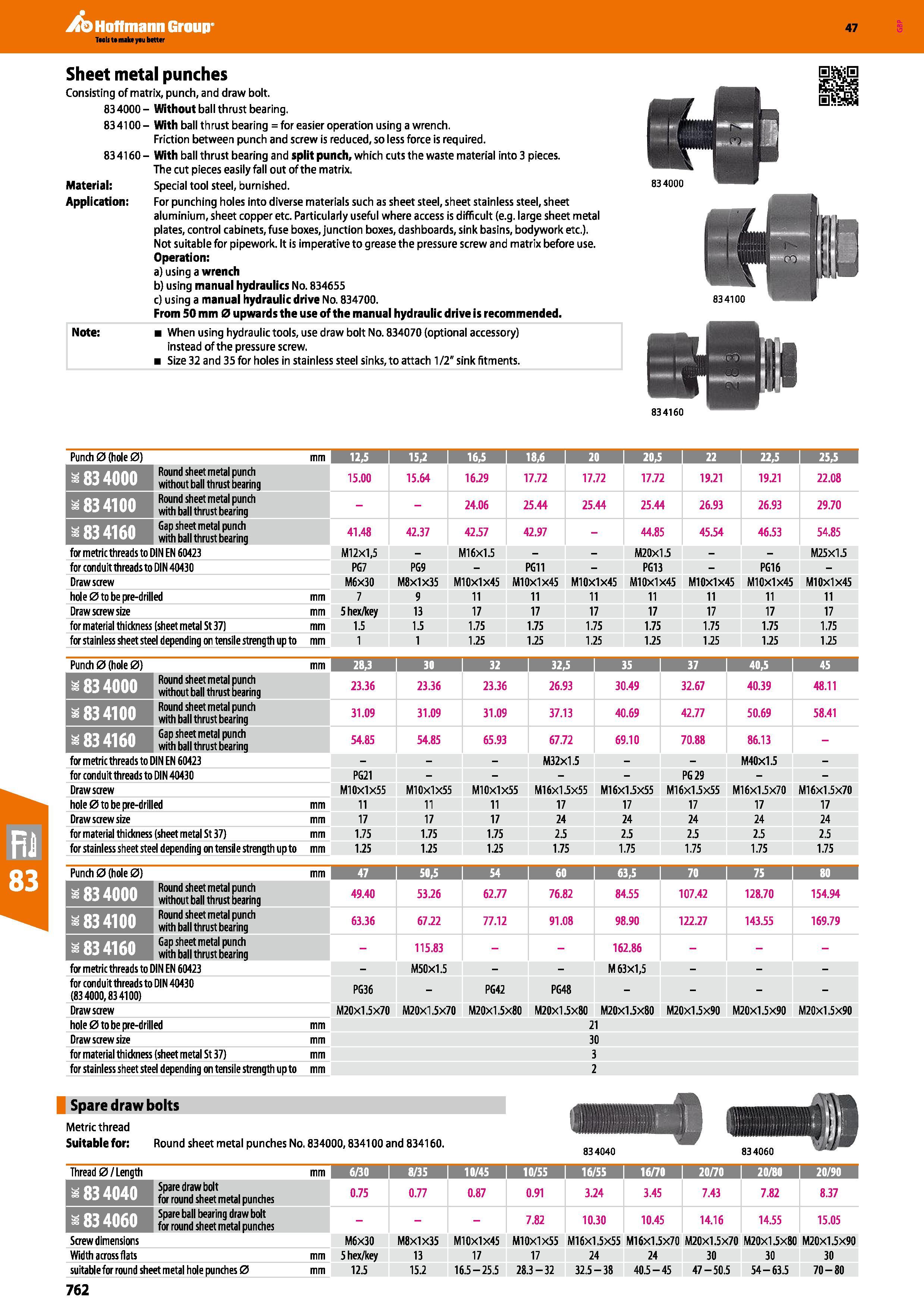

Hoffmann Group 47 Sheet metal punches Consisting of matrix, punch, and draw bolt. 834000- Without ball thrust bearing. 834100- With ball thrust bearing = for easier operation using a wrench. Friction between punch and screw is reduced, so less force is required. 83 4160 - With ball thrust bearing and split punch, which cuts the waste material into 3 pieces. The cut pieces easily fall out of the matrix. Material: Special tool steel, burnished. Application: For punching holes into diverse materials such as sheet steel, sheet stainless steel, sheet aluminium, sheet copper etc. Particularly useful where access is difficult (e.g. large sheet metal plates, control cabinets, fuse boxes, junction boxes, dashboards, sink basins, bodywork etc.). Not suitable for pipework. It is imperative to grease the pressure screw and matrix before use. Operation: a) using a wrench b) using manual hydraulics No. 834655 c) using a manual hydraulic drive No. 834700. From 50 mm 0 upwards the use of the manual hydraulic drive is recommended. 834000 Note: When using hydraulic tools, use draw bolt No. 834070 (optional accessory) instead of the pressure screw. Size 32 and 35 for holes in stainless steel sinks, to attach 1/2" sink fitments. Punch 0 (hole 0) mm 12,5 I 15,2 16,5 i 18,6 1 20 i 20,5 i 22 i 22,5 I 25,5 i Round sheet metal punch without ball thrust bearing 15.00 15.64 16.29 17.72 17.72 17.72 19.21 19.21 22.08 Round sheet metal punch with ball thrust bearing 24.06 25.44 25.44 25.44 26.93 26.93 29.70 i Gap sheet metal punch with ball thrust bearing 41.48 42.37 42.57 42.97 - 44.85 45.54 46.53 54.85 for metric threads to DIN EN 60423 M12x1,5 - M16X1.5 M20X1.5 M25X1.5 for conduit threads to DIN 40430 PG7 PG9 - PG11 - PG13 - PG16 - Draw screw M6x30 M8x1x35 M10x1x45 M10x1x45 M10x1x45 M10x1x45 M10x1x45 M10X1X45 M10x1x45 hole 0 to be pre-drilled mm 7 9 11 11 11 11 11 11 11 Draw screw size mm 5 hex/key 13 17 17 17 17 17 17 17 for material thickness (sheet metal St 37) mm 1.5 1J 1.75 1.75 1.75 1.75 1.75 1.75 1.75 for stainless sheet steel depending on tensile strength up to mm 1 1 1.25 1.25 1.25 1.25 1.25 1.25 1.25 Punch 0 (hole 0) mm 28,3 I 30 I 32 I 32,5 I 35 I 37 I 40,5 i 45 S £83 4000 Round sheet metal punch without ball thrust bearing 23.36 23.36 23.36 26.93 30.49 32.67 40.39 48.11 £834100 Round sheet metal punch with ball thrust bearing 31.09 31.09 31.09 37.13 40.69 42.77 50.69 58.41 £834160 Gap sheet metal punch with ball thrust bearing 54.85 54.85 65.93 67.72 69.10 70.88 86.13 - for metric threads to DIN EN 60423 M32X1.5 M40X1.5 - for conduit threads to DIN 40430 PG21 - PG29 Draw screw Ml 0x1x55 M10X1X55 M10X1X55 M16x1J>x55 Ml 6x1.5x55 M16x1.5x55 M16x1.5x70 M16x1.5x70 hole 0 to be pre-drilled mm 11 11 11 17 17 17 17 17 Draw screw size mm 17 17 17 24 24 24 24 24 for material thickness (sheet metal St 37) mm 1.75 1.75 1.75 2.5 2.5 2.5 2.5 2.5 for stainless sheet steel depending on tensile strength upto mm 1.25 1.25 1.25 1.75 1.75 1.75 1.75 1.75 Punch 0 (hole 0) mm I SO,5 i 54 i 60 i 63,5 70 1 75 I 80 £83 4000 Round sheet metal punch without ball thrust bearing 49.40 53.26 62.77 76.82 84.55 107.42 128.70 154.94 £834100 Round sheet metal punch with ball thrust bearing 63.36 67.22 77.12 91.08 98.90 122.27 143.55 169.79 £834160 Gap sheet metal punch with ball thrust bearing - 115.83 162.86 for metric threads to DIN EN 60423 - M50X1.5 M 63x1,5 for conduit threads to DIN 40430 (834000,834100) PG36 - PG42 PG48 - Draw screw M20X1.5X70 M20X1.5X70 M20x1,5x80 M20x1.5x80 M20x1.5x80 M20X1.5X90 M20X1.5X90 M20X1.5X90 hole 0 to be pre-drilled mm Draw screw size mm for material thickness (sheet metal St 37) mm for stainless sheet steel depending on tensile strength upto mm 21 30 3 2 Spare draw bolts Metric thread Suitable for: Round sheet metal punches No. 834000,834100 and 834160. 834040 Wt Eil MB 834060 m 1 Thread 0/Length mm 6/30 i 8/35 I 10/45 10/55 I 16/55 16/70 20/70 i 20/80 I 20/90 i £83 4040 Spare draw bolt for round sheet metal punches 0.75 0.77 0.87 0.91 3.24 3.45 7.43 7.82 8.37 £83 4060 Spare ball bearing draw bolt for round sheet metal punches 7.82 10.30 10.45 14.16 14.55 15.05 Screw dimensions M6X30 M8x1x35 M10X1X45 Ml 0x1x55 M16x1.5x55 Ml6x1.5x70 M20x1.5x70 M20x1.5x80 M20x1.5x90 Width across flats mm 5 hex/key 13 17 17 24 24 30 30 30 suitable for round sheet metal hole punches 0 mm 12.5 15.2 16.5-25.5 28.3-32 32.5-38 40.5-45 47 - 50.5 54 - 63.5 70-80 762 834100 834160
