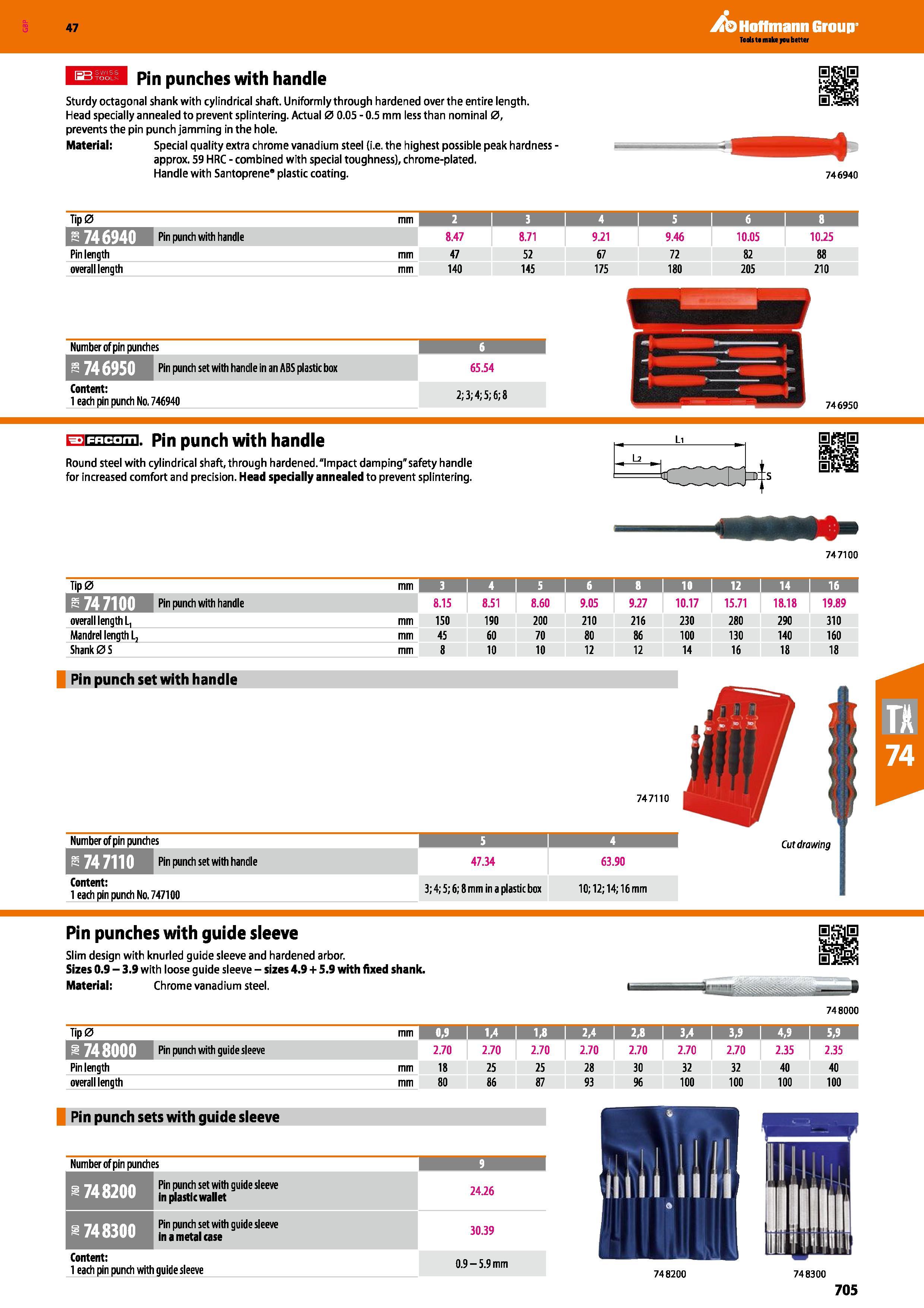

705 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.705

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 705 0705 ENG Lab2u

Hoffmann Group 47 Pin punches with handle Sturdy octagonal shankwith cylindrical shaft. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Actual 0 0.05 - 0.5 mm less than nominal 0, prevents the pin punch jamming in the hole. Material: Special quality extra chrome vanadium steel (i.e. the highest possible peak hardness approx. 59 HRC - combined with special toughness), chrome-plated. Handle with Santoprene” plastic coating. 746940 Tip0 mm 2 I 3 I 4 1 5 1 I > I Niy A T.-VMlB Pin punch with handle 8.47 8.71 9.21 9.46 10.05 10.25 Pin length mm 47 52 67 72 82 88 overall length mm 140 145 175 180 205 210 h 746950 Pin punch set with handle in an ABS plastic box 65.54 Content: 1 each pin punch No. 746940 2; 3; 4; 5; 6; 8 746950 E3ld:L-Niil. Pin punch with handle Round steel with cylindrical shaft, through hardened/impact damping"safety handle for increased comfort and precision. Head specially annealed to prevent splintering. nils 747100 Tip0 mm 3 i 4 I 5 I 6 i 8 I 10 I 12 j 14 I 16 S laKHI1'1" Pin punch with handle 8.15 8.51 8.60 9.05 9.27 10.17 15.71 18.18 19.89 overall length L, mm 150 190 200 210 216 230 280 290 310 Mandrel length L, mm 45 60 70 80 86 100 130 140 160 Shank 05 mm 8 10 10 12 12 14 16 18 18 Pin punch set with handle 747110 Number of pin punches 5 1 4 1 b 747110 Pin punch set with handle 47.34 63.90 Content: 1 each pin punch No. 747100 3; 4; 5; 6; 8 mm in a plastic box 10; 12; 14; 16 mm Cut drawing Pin punches with guide sleeve Slim design with knurled guide sleeve and hardened arbor. Sizes 0.9 - 3.9 with loose guide sleeve - sizes 4.9 + 5.9 with fixed shank. Material: Chrome vanadium steel. 748000 Tip0 mm 1 hzh 2,8 1 3,4 I 3,9 1 4,9 I 5,9 1 UTA HIM Pin punch with guide sleeve 2.70 2.70 2.70 2.70 2.70 2.70 2.70 2.35 2.35 Pin length mm 18 25 25 28 30 32 32 40 40 overall length mm 80 86 87 93 96 100 100 100 100 Pin punch sets with guide sleeve Number of pin punches 748200 748300 Pin punch set with guide sleeve in plastic wallet Pin punch set with guide sleeve in a metal case Content: 1 each pin punch with guide sleeve 24.26 30.39 0.9 - 5.9 mm 748200 748300 705
