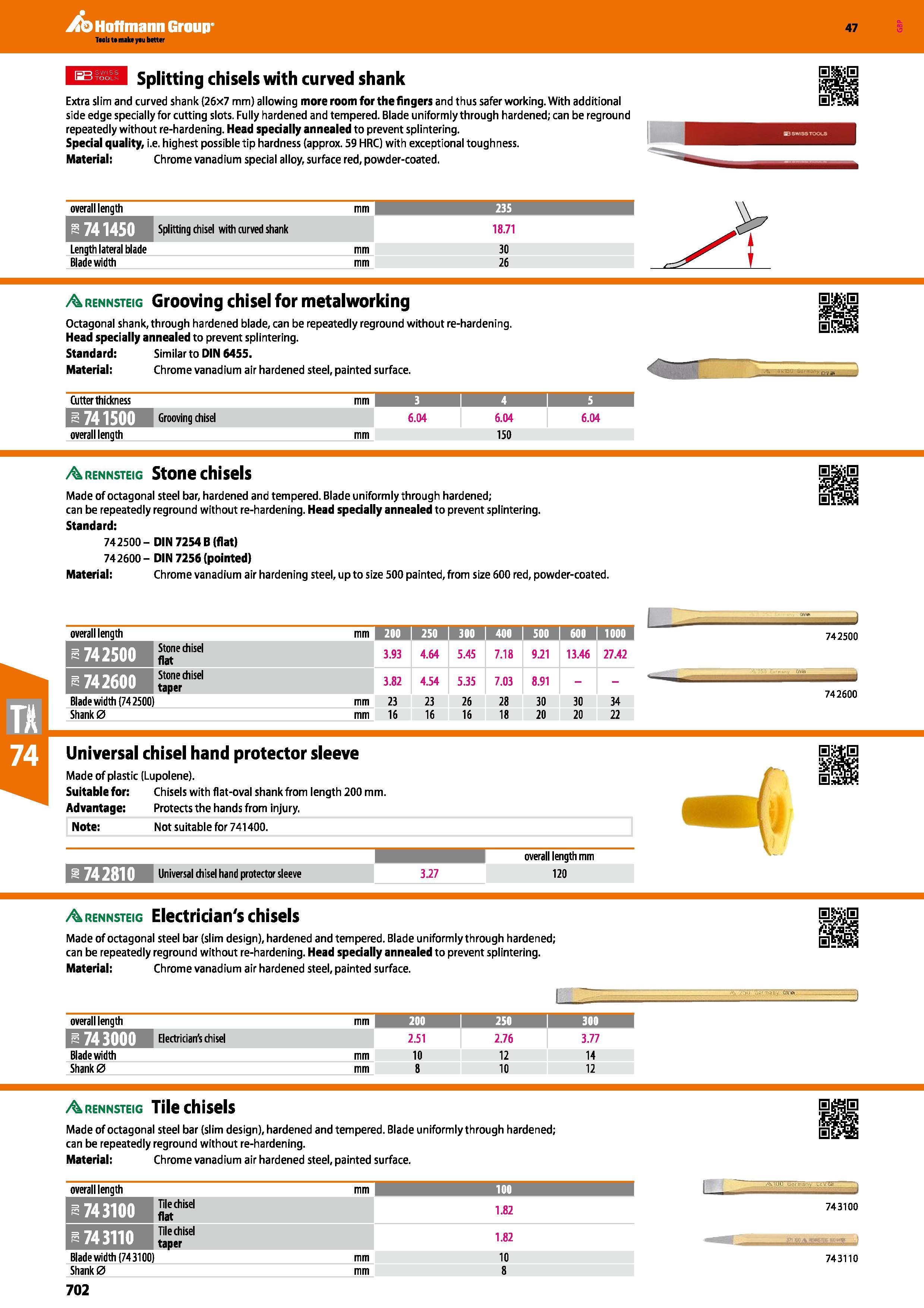

Hoffmann Group 47 Splitting chisels with curved shank Extra slim and curved shank (26x7 mm) allowing more room for the fingers and thus safer working. With additional side edge specially for cutting slots. Fully hardened and tempered. Blade uniformly through hardened; can be reground repeatedly without re-hardening. Head specially annealed to prevent splintering. Special quality, i.e. highest possible tip hardness (approx. 59 HRC) with exceptional toughness. Material; Chrome vanadium special alloy, surface red, powder-coated. overall length mm 235 s741450 Splitting chisel with curved shank 18.71 Length lateral blade Blade width mm 30 26 A rennsteig Grooving chisel for metalworking Octagonal shank, through hardened blade, can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Standard: Similar to DIN 6455. Material: Chrome vanadium air hardened steel, painted surface. Cutter thickness mm 3 1 4 5 I 741500 HB9 6.04 6.04 6.04 overall length mm 150 A rennsteig Stone chisels Made of octagonal steel bar, hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Standard: 742500- DIN 7254 B (flat) 742600- DIN 7256 (pointed) Material: Chrome vanadium air hardening steel, up to size 500 painted, from size 600 red, powder-coated. overall length 742500 Stone chisel flat 3.93 4.64 5.45 7.18 9.21 13.46 27.42 s 742600 Stone chisel taper 3.82 4.54 5.35 7.03 8.91 trio 7A Tf Blade width (742500 ) mm 23 23 26 28 30 30 ¥ Shank 0 mm 16 16 16 18 20 20 22 742500 Universal chisel hand protector sleeve Made of plastic (Lupolene). Suitable for: Chisels with flat-oval shank from length 200 mm. Advantage: Protects the hands from injury. Note: Not suitable for 741400. 742810 Universal chisel hand protector sleeve 3.27 overall length mm 120 A rennsteig Electrician's chisels Made of octagonal steel bar (slim design), hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Material: Chrome vanadium air hardened steel, painted surface. overall length mm 200 i 250 I 300 1 1 s 743000 2.51 2.76 3.77 Blade width mm 10 12 14 Shank 0 10 Arennsteig Tile chisels Made of octagonal steel bar (slim design), hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Material: Chrome vanadium air hardened steel, painted surface. overall length mm 100 1 s 743100 Tile chisel flat 1.82 s 743110 Tile chisel taper 1.82 Blade width (743100 ) mm 10 A Ulli h n 51 . ’.i VTS 1 743100 743110 Shank 0 702
