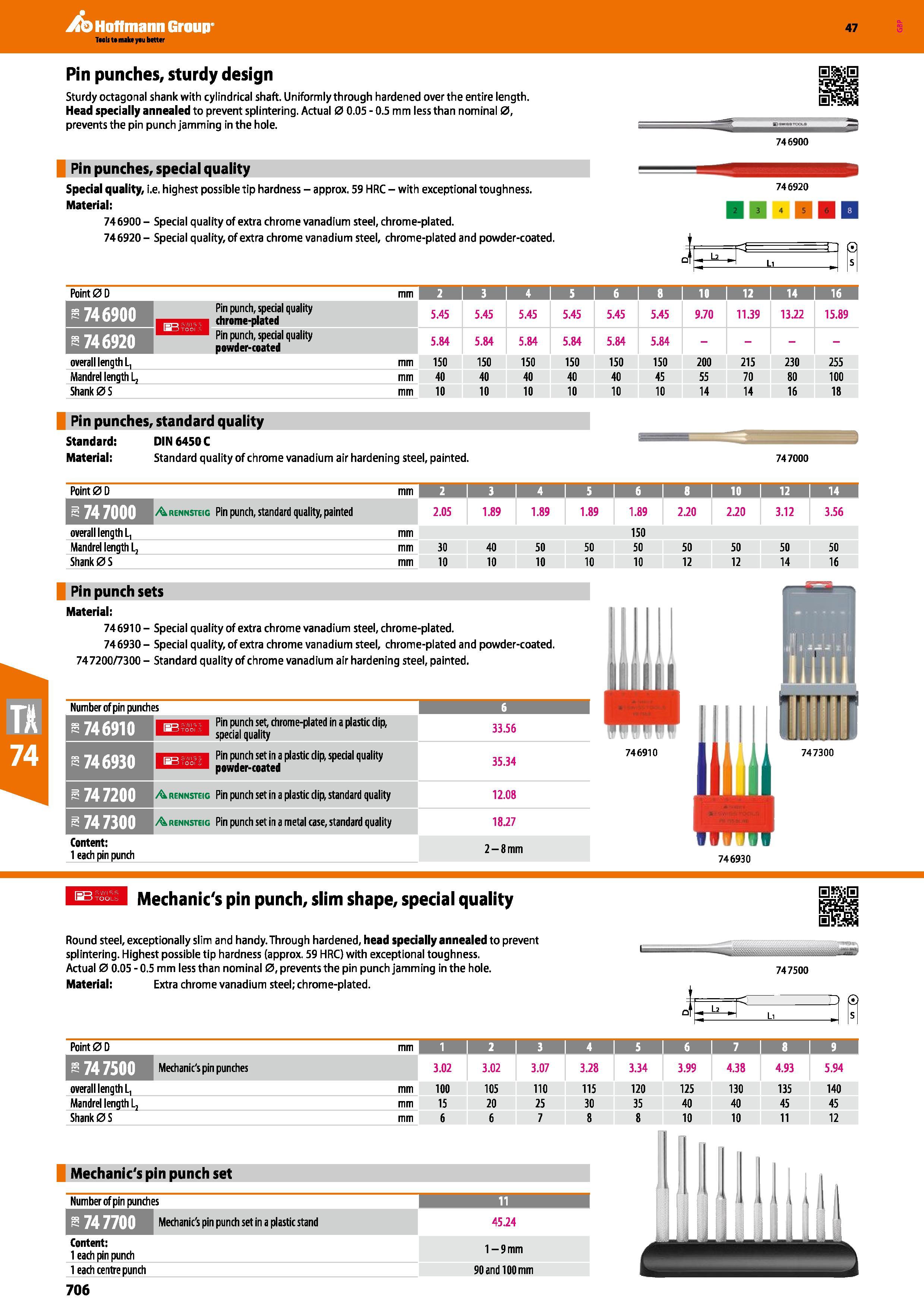

706 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.706

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 706 0706 ENG Lab2u

Hoffmann Group 47 Pin punches, sturdy design Sturdy octagonal shank with cylindrical shaft. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Actual 0 0.05 - 0.5 mm less than nominal 0, prevents the pin punch jamming in the hole. Pin punches, special quality Special quality, i.e. highest possible tip hardness - approx. 59 HRC - with exceptional toughness. Material: 746900- Special quality of extra chrome vanadium steel, chrome-plated. 746920 - Special quality, of extra chrome vanadium steel, chrome-plated and powder-coated. 746900 746920 4 Q Point 0 D mm I 3 I 3 I 6 I 8 I 10 1 12 14 I s 746900 Pin punch, special quality h chrome-plated 5.45 5.45 5.45 5.45 5.45 5.45 9.70 11.39 13.22 15.89 " 746920 kmm Pin punch, special quality powder-coated 5.84 5.84 5.84 5.84 5.84 5.84 - overall length L, mm 150 150 150 150 150 150 200 215 230 255 Mandrel length L2 mm 40 40 40 40 40 45 55 70 80 100 Shank 05 mm 10 10 10 10 10 10 14 14 16 18 Pin punches, standard quality Standard: DIN 6450 C Material: Standard quality of chrome vanadium air hardening steel, painted. 747000 Point 0 D mm 2 1 3 1 4 1 3 6 1 i io 1 12 14 I fl 11 iTM A rennsteig Pin punch, standard quality, painted 2.05 1.89 1.89 1.89 1.89 2.20 2.20 3.12 3.56 overall length L, mm 150 Mandrel length L2 mm 30 40 50 50 50 50 50 50 50 Shank 0S mm 10 10 10 10 10 12 12 14 16 Pin punch sets Material: 746910- Special quality of extra chrome vanadium steel, chrome-plated. 746930 - Special quality, of extra chrome vanadium steel, chrome-plated and powder-coated. 747200/7300 - Standard quality of chrome vanadium air hardening steel, painted. Number of pin punches 6 pnB Pin punch set, chrome-plated in a plastic clip, special quality 33.56 a 746930 mwihm Pin punch set in a plastic clip, special quality powder-coated 35.34 a 74 7200 A rennsteig Pin punch set in a plastic clip, standard quality 12.08 a 74 7300 A rennsteig Pin ptinch set in a metal case, standard quality 18.27 Content: 1 each pin punch 2-8mm 746930 Mechanic's pin punch, slim shape, special quality Round steel, exceptionally slim and handy. Through hardened, head specially annealed to prevent splintering. Highest possible tip hardness (approx. 59 HRC) with exceptional toughness. Actual 0 0.05 - 0.5 mm less than nominal 0, prevents the pin punch jamming in the hole. Material: Extra chrome vanadium steel; chrome-plated. 747500 Mechanic's pin punch set Point 0 D mm 1 1 2 1 3 1 4 1 5 1 6 I 7 9 I A Fi-flTiM Mechanic's pin punches 3.02 3.02 3.07 3.28 3.34 3.99 4.38 4.93 5.94 overall length L, mm 100 105 110 115 120 125 130 135 140 Mandrel length L2 mm 15 20 25 30 35 40 40 45 45 Shank 0S mm 6 6 7 8 8 10 10 11 12 Number of pin punches 11 j a 74 7700 Mechanic's pin punch set in a plastic stand 45.24 Content: 1 each pin punch 1-9mm 706
