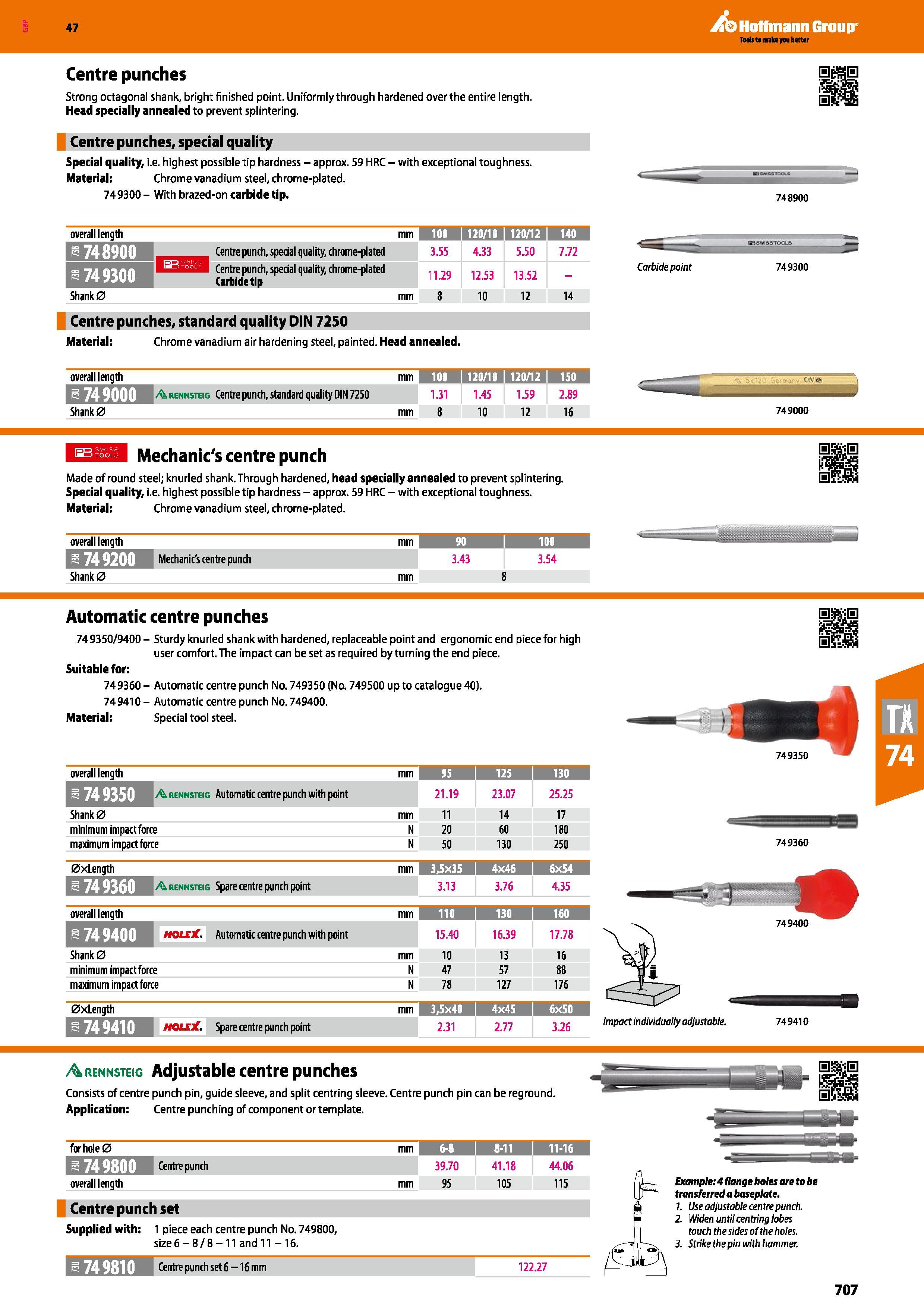

Hoffmann Group 47 Centre punches Strong octagonal shank, bright finished point. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Centre punches, special quality Special quality, i.e. highest possible tip hardness - approx. 59 HRC - with exceptional toughness. Material: Chrome vanadium steel, chrome-plated. 749300 - With brazed-on carbide tip. 748900 overall length mm 100 inn 140 r 748900 Centre punch, special quality, chrome-plated 3.55 4.33 5.50 7.72 a 749300 1 Centre punch, special quality, chrome-plated Carbide tip 11.29 12.53 13.52 - Shank 0 mm 8 10 12 14 Centre punches, standard quality DIN 7250 Material: Chrome vanadium air hardening steel, painted. Head annealed. Carbide point 749300 overall length mm 100 150 g 749000 A rennsteig Centre punch, standard quality DIN 7250 1.31 1.45 1.59 2.89 749000 Mechanic's centre punch Made of round steel; knurled shank. Through hardened, head specially annealed to prevent splintering. Special quality, i.e. highest possible tip hardness - approx. 59 HRC - with exceptional toughness. Material: Chrome vanadium steel, chrome-plated. overall length mm 90 1 100 i 7JWl Mechanic's centre punch 3.43 3.54 Shank 0 mm 8 Automatic centre punches 749350/9400- Sturdy knurled shankwith hardened, replaceable point and ergonomic end piece for high user comfort. The impact can beset as required by turning the end piece. Suitable for: 749360 - Automatic centre punch No. 749350 (No. 749500 up to catalogue 40). 749410 - Automatic centre punch No. 749400. Material: Special tool steel. overall length mm 95 1 125 130 A rennsteig Automatic centre punch with point 21.19 23.07 25.25 Shank 0 mm 11 14 17 minimum impact force N 20 60 180 maximum impact force N 50 130 250 0xLength mm 3,5x35 I 4X46 i 6x54 Arennsteh Spare centre punch point 3.13 3.76 4.35 overall length mm 110 130 i 160 houx- Automatic centre punch with point 15.40 16.39 17.78 Shank 0 mm 10 13 16 minimum impact force N 47 57 88 maximum impact force N 78 127 176 0xLength mm 3,5x40 4x45 i 6x50 Is 749410 Spare centre punch point 2.31 2.77 3.26 749360 A rennsteig Adjustable centre punches Consists of centre punch pin, guide sleeve, and split centring sleeve. Centre punch pin can be reground. Application: Centre punching of component or template. for hole 0 KSul 6-8 S 8-11 I 11-16 h 749800 39.70 41.18 44.06 overall length Centre punch set 95 Supplied with: 1 piece each centre punch No. 749800, size 6-8/8-11 and 11 -16. 749810 Centre punch set6 -16 mm 105 115 122.27 Example: 4 flange holes are to be transferred a baseplate. 7. Use adjustable centre punch. 2. Widen until centring lobes touch the sides of the holes. 3. Strike the pin with hammer. Impact individually adjustable. 74 9410 749400 707
