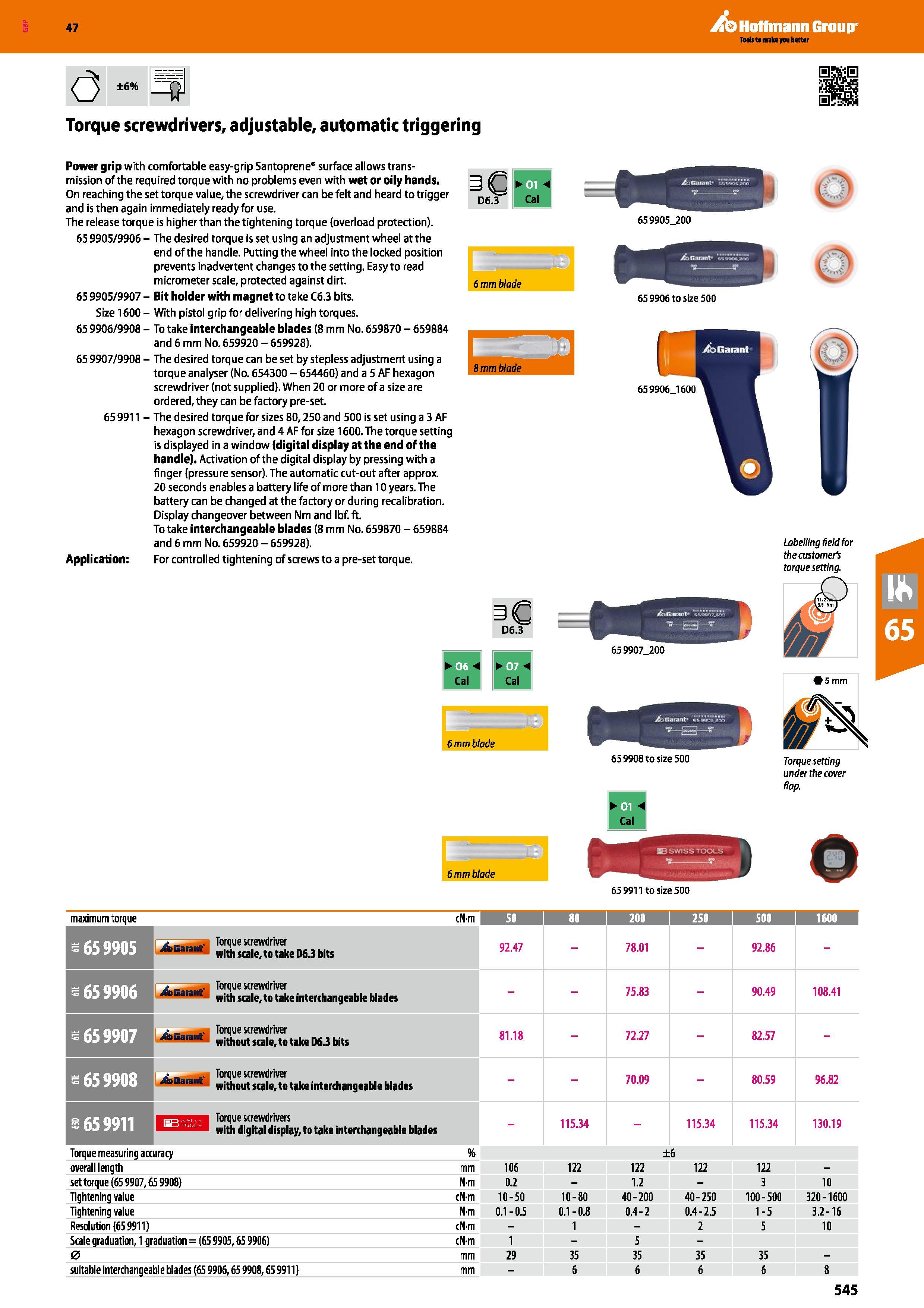

Hoffmann Group 47 D6.3 Torque screwdrivers, adjustable, automatic triggering Power grip with comfortable easy-grip Santoprene surface allows transmission of the required torque with no problems even with wet or oily hands. On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then again immediately ready for use. The release torque is higher than the tightening torque (overload protection). 65 9905/9906 - The desired torque is set using an adjustment wheel at the end of the handle. Putting the wheel into the locked position prevents inadvertent changes to the setting. Easy to read micrometer scale, protected against dirt. 65 9905/9907 - Bit holder with magnet to take C6.3 bits. Size 1600- With pistol grip for delivering high torques. 65 9906/9908 - To take interchangeable blades (8 mm No. 659870 - 659884 and 6 mm No. 659920 - 659928). 65 9907/9908 - The desired torque can be set by stepless adjustment using a torque analyser (No. 654300 - 654460) and a 5 AF hexagon screwdriver (not supplied). When 20 or more of a size are ordered, they can be factory pre-set. 65 9911 - The desired torque for sizes 80,250 and 500 is set using a 3 AF hexagon screwdriver, and 4 AF for size 1600. The torque setting is displayed in a window (digital display at the end of the handle). Activation of the digital display by pressing with a finger (pressure sensor). The automatic cut-out after approx. 20 seconds enables a battery life of more than 10 years. The battery can be changed at the factory or during recalibration. Display changeover between Nm and Ibf. ft. To take interchangeable blades (8 mm No. 659870 - 659884 and 6 mm No. 659920 - 659928). Application: For controlled tightening of screws to a pre-set torque. 659905 200 6 mm blade 65 9906 to size 500 8 mm blade 659906_1600 Labelling field for the customer's torque setting. D6.3 65 9907_200 6 mm blade 65 9908 to size 500 Torque setting under the cover flap. 6 mm blade 659911 to size 500 maximum torque cN-m 50 I 0 200 250 i 500 1600 Torque screwdriver with scale, to take D6.3 bits = 65 9905 J&ftaiant' 92.47 - 78.01 - 92.86 - Torque screwdriver with scale, to take interchangeable blades = 65 9906 jfbGaiant 75.83 - 90.49 108.41 Torque screwdriver without scale, to take D6.3 bits = 65 9907 jriaGarant 81.18 72.27 82.57 - = 65 9908 jtbGarant Torque screwdriver without scale, to take interdiangeable blades 70.09 - 80.59 96.82 Torque screwdrivers with digital display, to take interchangeable blades 659911 - 115.34 - 115.34 115.34 130.19 Torque measuring accuracy % ±6 overall length mm 106 122 122 122 122 - set torque (65 9907,65 9908) N-m 0.2 - 1.2 - 3 10 Tightening value cN-m 10-50 10-80 40-200 40-250 100-500 320-1600 Tightening value N-m 0.1-0.5 0.1-0.8 0.4-2 0.4-2 5 1-5 3.2-16 Resolution (65 9911) cN-m - 1 - 2 5 10 Scale graduation, 1 graduation = (65 9905,65 9906) cN-m 1 - 5 - 0 mm 29 35 35 35 35 - suitable interchangeable blades (65 9906,65 9908,65 9911) mm - 6 6 6 6 8 545
