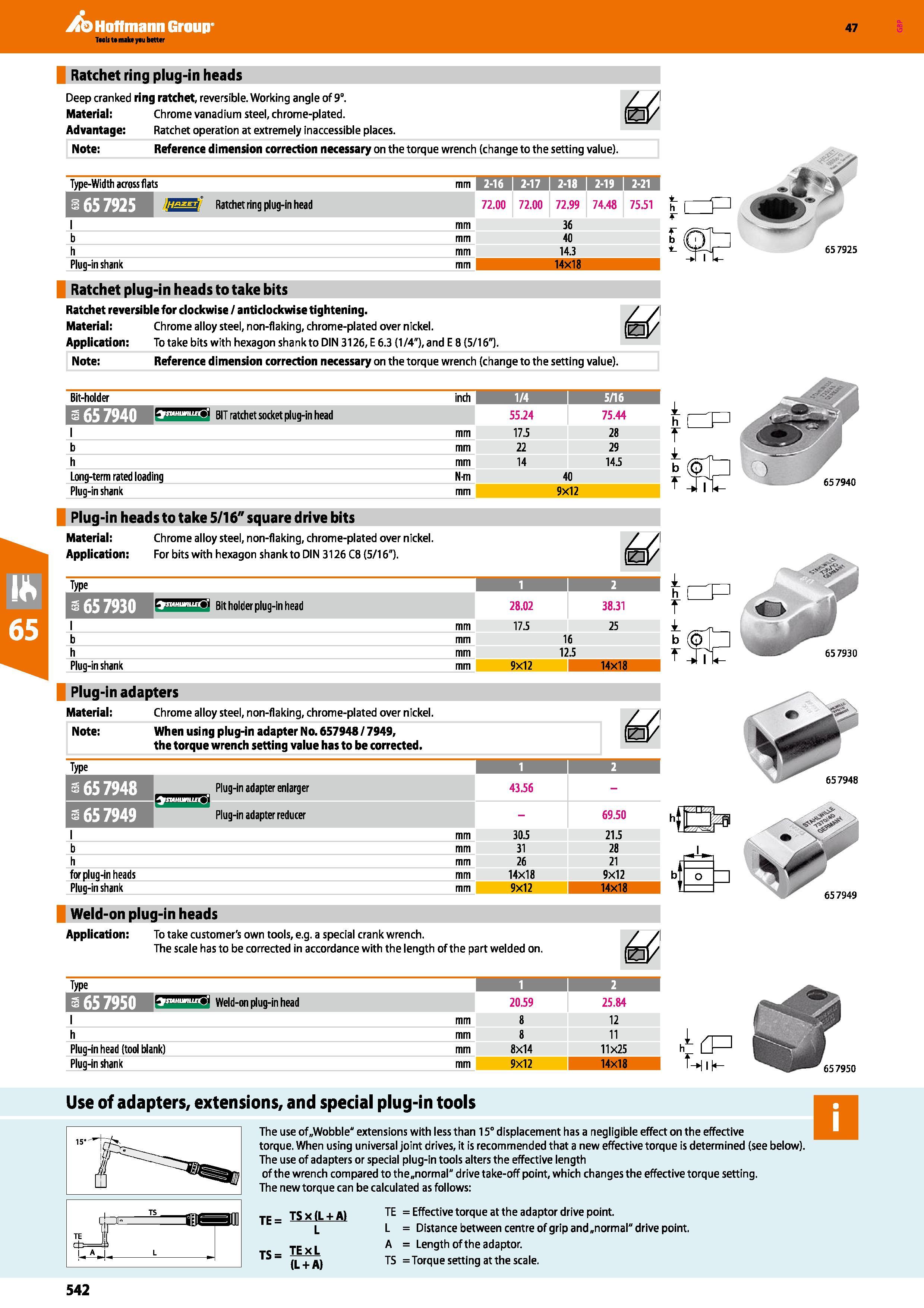

Hoffmann Group 47 Ratchet ring plug-in heads Deep cranked ring ratchet, reversible. Working angle of 9°. Material: Chrome vanadium steel, chrome-plated. Advantage: Ratchet operation at extremely inaccessible places. Note: Reference dimension correction necessary on the torque wrench (change to the setting value). Type-Width across flats mm r.uu-u Ratchet ring plug-in head 72.00 72.00 72.99 74.48 75.51 1 mm 36 b mm 40 h mm 14.3 Plug-in shank mm 14x18 Ratchet plug-in heads to take bits Ratchet reversible for clockwise / anticlockwise tightening. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. Application: To take bits with hexagon shank to DIN 3126, E 6.3 (1/4"), and E 8 (5/16"). Note: Reference dimension correction necessary on the torque wrench (change to the setting value). 65 7925 Bit-holder inch 1/4 1 5/16 1 55.24 75.44 I mm 17.5 28 b mm 22 29 h mm 14 14.5 Long-term rated loading N-m 40 Plug-in shank mm 9X12 Plug-in heads to take 5/16" square drive bits Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. Application: For bits with hexagon shank to DIN 3126 C8 (5/16"). Type m I 2 65 7930 Bit holder plug-in head 28.02 38.31 i mm 17.5 25 b mm 16 h mm 12.5 Plug-in shank mm 9x12 14x18 Plug-in adapters Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. Note: When usi ng plug-in adapter Na 657948 / 7949, the torque wrench setting value has to be corrected. m/ Type 1 I 2 Plug-in adapter enlarger 43.56 - 5 65 7949 Plug-in adapter reducer - 69.50 i mm 30.5 21.5 b mm 31 28 h mm 26 21 for plug-in heads mm 14x18 9x12 Plug-in shank mm 9x12 14x18 Weld-on plug -in heads Application: To take customer's own tools, e.g. a special crank wrench. The scale has to be corrected in accordance with the length of the part welded on. Use of adapters, extensions, and special plug-in tools Type 1 1 2 20.59 25.84 I mm 8 12 h mm 8 11 Plug-in head (tool blank) mm 8x14 11x25 Plug-in shank mm 9x12 14x18 t-h i I The use of„Wobble" extensions with less than 15° displacement has a negligible effect on the effective torque. When using universal joint drives, it is recommended that a new effective torque is determined (see below) The use of adapters or special plug-in tools alters the effective length of the wrench compared to the„normal" drive take-off point, which changes the effective torque setting. The new torque can be calculated as follows: TE= TS X (L + A) L TS = TExL (L + A) TE = Effective torque at the adaptor drive point. L = Distance between centre of grip and„normal" drive point A = Length of the adaptor. TS = Torque setting at the scale. 657940 542
