544 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.544

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 544 0544 ENG Lab2u

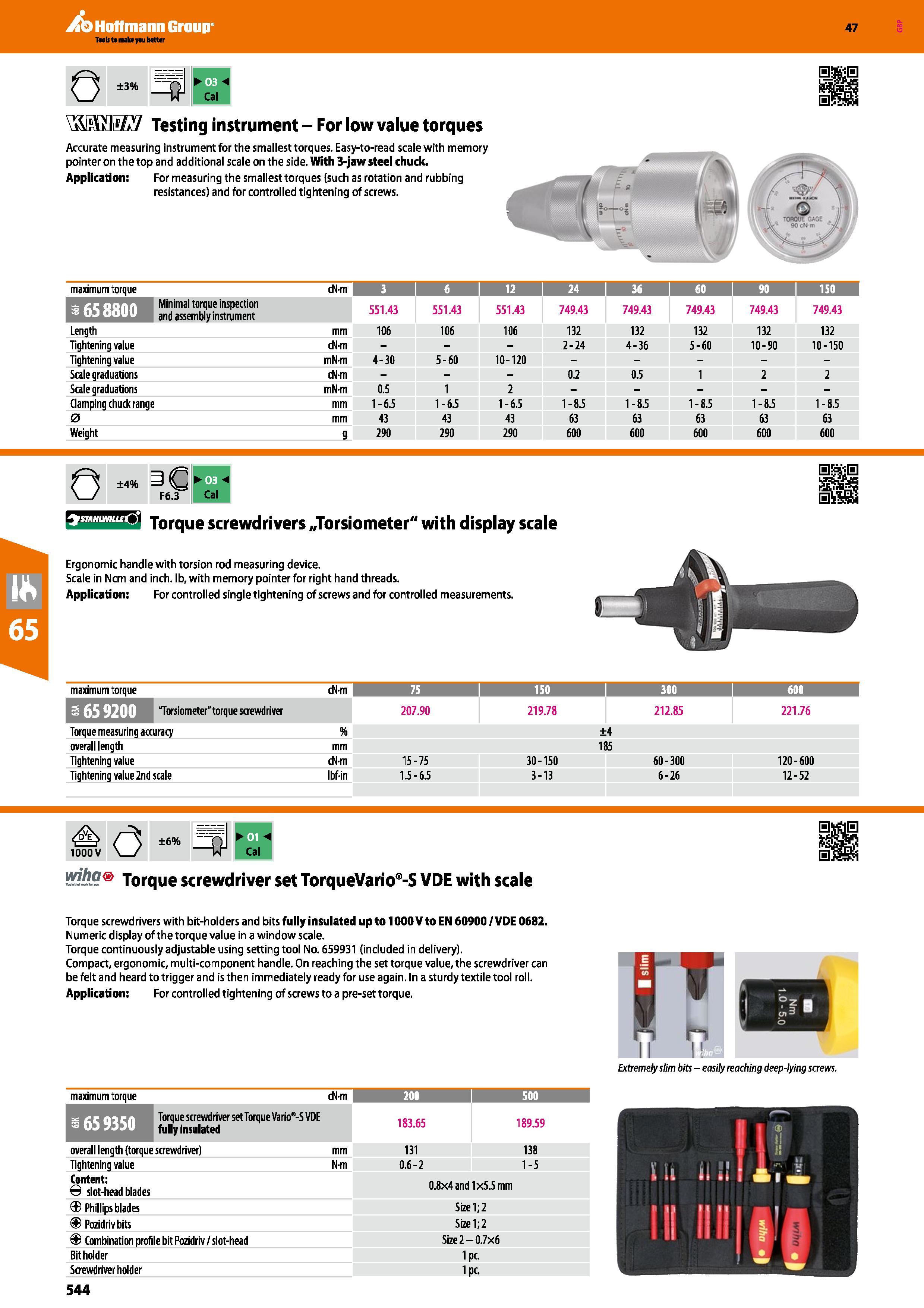

\jMj06C7 Testing instrument - For low value torques Accurate measuring instrument for the smallest torques. Easy-to-read scale with memory pointer on the top and additional scale on the side. With 3-jaw steel chuck. Application: For measuring the smallest torques (such as rotation and rubbing resistances) and for controlled tightening of screws. maximum torque cN-m 3 1 i 12 24 36 60 90 i 150 I Minimal torque inspection dataliM i and assembly instrument 551.43 551.43 551.43 749.43 749.43 749.43 749.43 749.43 Length mm 106 106 106 132 132 132 132 132 Tightening value cN'm 2-24 4-36 5-60 10-90 10-150 Tightening value rrN-m 4-30 5-60 10-120 Scale graduations cN-m 0.2 0.5 1 2 2 Scale graduations mN-m 0.5 1 2 Clamping chuck range mm 1-6.5 1-6.5 1-6.5 1-8.5 1-8.5 1-8.5 1-8.5 1-8.5 0 mm 43 43 43 63 63 63 63 63 Weight 9 290 290 290 600 600 600 600 600 O F6.3 Torque screwdrivers „Torsiometer" with display scale Ergonomic handle with torsion rod measuring device. Scale in Ncm and inch, lb, with memory pointer for right hand threads. Application: For controlled single tightening of screws and for controlled measurements. maximum torque cN-m 75 150 I 300 600 “Torsiometer” torque screwdriver 207.90 219.78 212.85 221.76 Torque measuring accuracy % ±4 overall length mm 185 Tightening value cN-m 15-75 30-150 60-300 120 - 600 Tightening value 2nd scale Ibfin 1.5-6.5 3-13 6-26 12-52 /DEN 1000 V ±6% D wHLQ Torque screwdriver set TorqueVario -S VDE with scale Torque screwdrivers with bit-holders and bits fully insulated up to 1000V to EN 60900 / VDE 0682. Numeric display of the torque value in a window scale. Torque continuously adjustable using setting tool No. 659931 (included in delivery). Compact, ergonomic, multi-component handle. On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then immediately ready for use again. In a sturdy textile tool roll. Application: For controlled tightening of screws to a pre-set torque. Extremely slim bits - easily reaching deep-lying screws. maximum torque cN-m 200 1 500 1 Torque screwdriver set Torque Vario“-S VDE fully insulated 183.65 189.59 overall length (torque screwdriver) mm 131 138 Tightening value N-m 0.6-2 1-5 Content: slot-head blades 0.8x4and 1x5.5 mm 0 Phillips blades Size 1; 2 Pozidriv bits Size 1; 2 Combination profile bit Pozidriv / slot-head Size 2-0.7x6 Bit holder 1 PC- Screwdriver holder Ipc. 544
