543 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.543

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 543 0543 ENG Lab2u

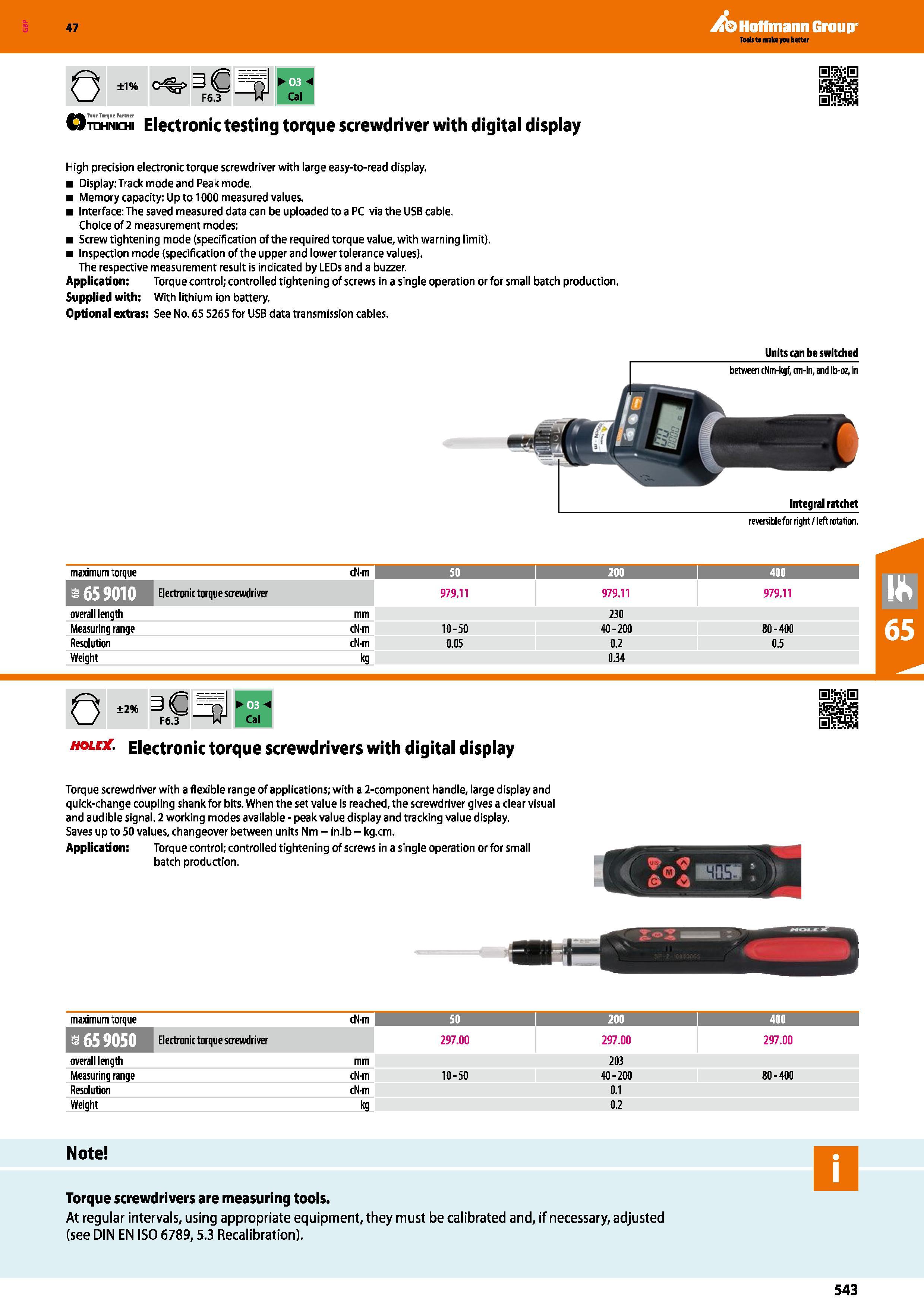

Hoffmann Group 47 0 ¥ ur Torque Partner tdhnidhi Electronic testing torque screwdriver with digital display Cal High precision electronic torque screwdriver with large easy-to-read display. Display: Track mode and Peak mode. Memory capacity: Up to 1000 measured values. Interface: The saved measured data can be uploaded to a PC via the USB cable. Choice of 2 measurement modes: Screw tightening mode (specification of the required torque value, with warning limit). Inspection mode (specification of the upper and lower tolerance values). The respective measurement result is indicated by LEDs and a buzzer. Application: Torque control; controlled tightening of screws in a single operation or for small batch production. Supplied with: With lithium ion battery. Optional extras: See No. 65 5265 for USB data transmission cables. Units can be switched between cNm-kgf, cm-in, and Ib-oz, in 0 ±2% -fl u Cal holex. Electronic torque screwdrivers with digital display Integral ratchet reversible for right / left rotation. maximum torque cN-m 50 I 200 1 400 Electronic torque screwdriver 979.11 979.11 979.11 overall length mm 230 Measuring range cN-m 10-50 40-200 80 - 400 Resolution cN'im 0.05 0.2 0.5 Weight kg 0.34 Torque screwdriver with a flexible range of applications; with a 2-component handle, large display and quick-change coupling shank for bits. When the set value is reached, the screwdriver gives a clear visual and audible signal. 2 working modes available-peak value display and tracking value display. Saves up to 50 values, changeover between units Nm - in.lb - kg.cm. Application: Torque control; controlled tightening of screws in a single operation or for small batch production. maximum torque cN-m 50 I 400 S Electronic torque screwdriver 297.00 297.00 297.00 overall length mm 203 Measuring range cN-m 10-50 40-200 80 - 400 Resolution cN-m 0.1 Weight kg 0.2 Note Torque screwdrivers are measuring tools. At regular intervals, using appropriate equipment, they must be calibrated and, if necessary, adjusted (see DIN EN ISO 6789,5.3 Recalibration). 543
