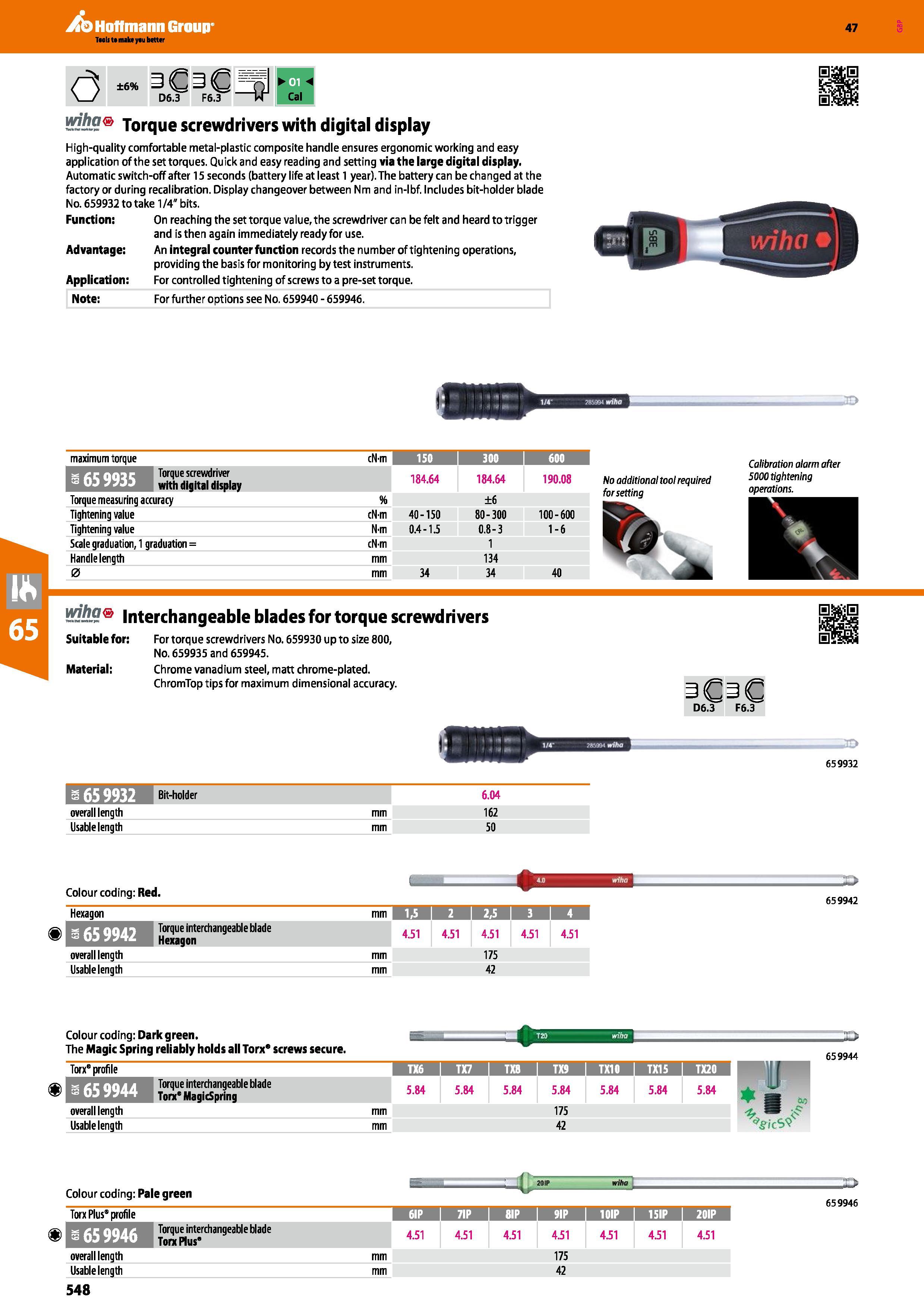

Hoffmann Group 47 o ±6% D6.3 H Cal Torque screwdrivers with digital display High-quality comfortable metal-plastic composite handle ensures ergonomic working and easy application of the set torques. Quick and easy reading and setting via the large digital display. Automatic switch-off after 15 seconds (battery life at least 1 year). The battery can be changed at the factory or during recalibration. Display changeover between Nm and in-lbf. Includes bit-holder blade No. 659932 to take 1/4" bits. Function: On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then again immediately ready for use. Advantage: An integral counter function records the number of tightening operations, providing the basis for monitoring by test instruments. Application: For controlled tightening of screws to a pre-set torque. Note: For further options see No. 659940 - 659946. maximum torque cN-m 150 j 300 1 600 Torque screwdriver with digital display 184.64 184.64 190.08 Torque measuring accuracy % ±6 Tightening value cN-m 40-150 80-300 100-600 Tightening value Hm 0.4-Ii 0.8-3 1-6 Scale graduation, 1 graduation = cN-m 1 Handle length mm 134 0 mm 34 34 40 No additional tool required forsetting WltS Interchangeable blades for torque screwdrivers Suitable for: Material: For torque screwdrivers No. 659930 up to size 800, No. 659935 and 659945. Chrome vanadium steel, matt chrome-plated. ChromTop tips for maximum dimensional accuracy. D6.3 F6.3 659932 I a 65 9932 H 6.04 overall length mm 162 Usable length mm 50 Colour coding: Red. Hexagon mm 1,5 I 2 mm 3 I 4 = 65 Torque interchangeable blade Hexagon 4.51 4.51 4.51 4.51 4.51 overall length mm 175 Usable length mm 42 Colour coding: Dark green. The Magic Spring reliably holds all Torx screws secure. . f 1 T1 W k < > Torx” profile TX6 1 TX7 I TX8 1 TX9 1 TX10 1 TX15 1 TX20 = 65 9944 Torque interchangeable blade Torx MagicS pring 5.84 5.84 5.84 5.84 5.84 5.84 5.84 overall length Usable length mm 175 42 K 65 9944 Colour coding: Pale green m Torx Plus profile 6IP IP 1 10IP I 15IP I 20IP a 65 9946 Torque interchangeable blade Torx Plus’ 4.51 4.51 4.51 4.51 4.51 4.51 4.51 overall length mm 175 Usable length mm 42 659946 548 Calibration alarm after 5000 tightening operations.
