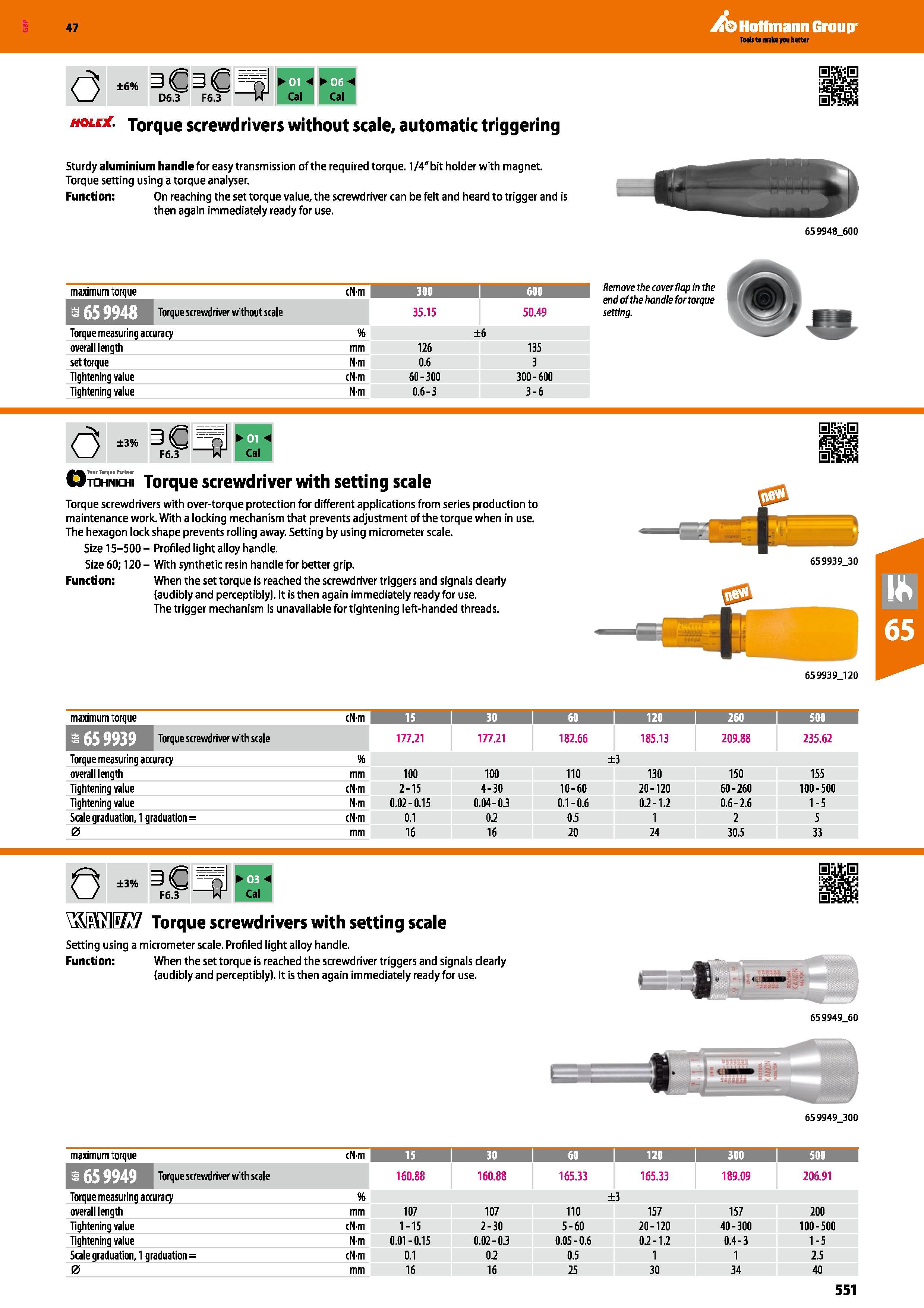

Hoffmann Group 47 ±6% D6.3 F6.3 B1 Cal Cal (3 hole . Torque screwdrivers without scale, automatic triggering Sturdy aluminium handle for easy transmission of the required torque. 1/4" bit holder with magnet. Torque setting using a torque analyser. Function: On reaching the set torque value, the screwdriver can be felt and heard to trigger and is then again immediately ready for use. 659948_600 maximum torque cN-m Torque screwdriver without scale 35.15 50.49 Torque measuring accuracy % ±6 overall length mm 126 135 set torque Nm 0.6 3 Tightening value cN-m 60-300 300-600 Tightening value Nm 0.6-3 3-6 Remove the cover flap in the end of the handle for torque setting. ±3% F6.3 Cal (3 Yaur Torque Partner tdhnidhi Torque screwdriver with setting scale Torque screwdrivers with over-torque protection for different applications from series production to maintenance work. With a locking mechanism that prevents adjustment of the torque when in use. The hexagon lock shape prevents rolling away. Setting by using micrometer scale. Size 15-500 - Profiled light alloy handle. Size 60; 120- With synthetic resin handle for better grip. Function: When the set torque is reached the screwdriver triggers and signals clearly (audibly and perceptibly). It is then again immediately ready for use. The trigger mechanism is unavailable for tightening left-handed threads. 659939_30 659939_120 maximum torque cN-m is 1 30 j 60 120 260 i 500 Torque screwdriver with scale 177.21 177.21 182.66 185.13 209.88 235.62 Torque measuring accuracy % ±3 overall length mm 100 100 110 130 150 155 Tightening value cN-m 2-15 4-30 10-60 20-120 60-260 100-500 Tightening value Nm 0.02-0.15 0.04-0.3 0.1-0.6 0.2-1.2 0.6-2.6 1-5 Scale graduation, 1 graduation = cN-m 0.1 0.2 0.5 1 2 5 0 mm 16 16 20 24 30.5 33 0 ±3% F6.3 Cal Torque screwdrivers with setting scale Setting using a micrometer scale. Profiled light alloy handle. Function: When the set torque is reached the screwdriver triggers and signals clearly (audibly and perceptibly). It is then again immediately ready for use. SI J - 65 9949_60 65 9949_300 maximum torque cN'tn 15 1 30 60 1 120 S 300 i 500 1 Torque screwdriver with scale 160.88 160.88 165.33 165.33 189.09 206.91 Torque measuring accuracy % ±3 overall length mm 107 107 110 157 157 200 Tightening value cN-m 1-15 2-30 5-60 20-120 40-300 100-500 Tightening value Nm 0.01-0.15 0.02-0.3 0.05-0.6 0.2-1.2 0.4-3 1-5 Scale graduation, 1 graduation = cN-m 0.1 0.2 0.5 1 1 2.5 0 mm 16 16 25 30 34 40 551
