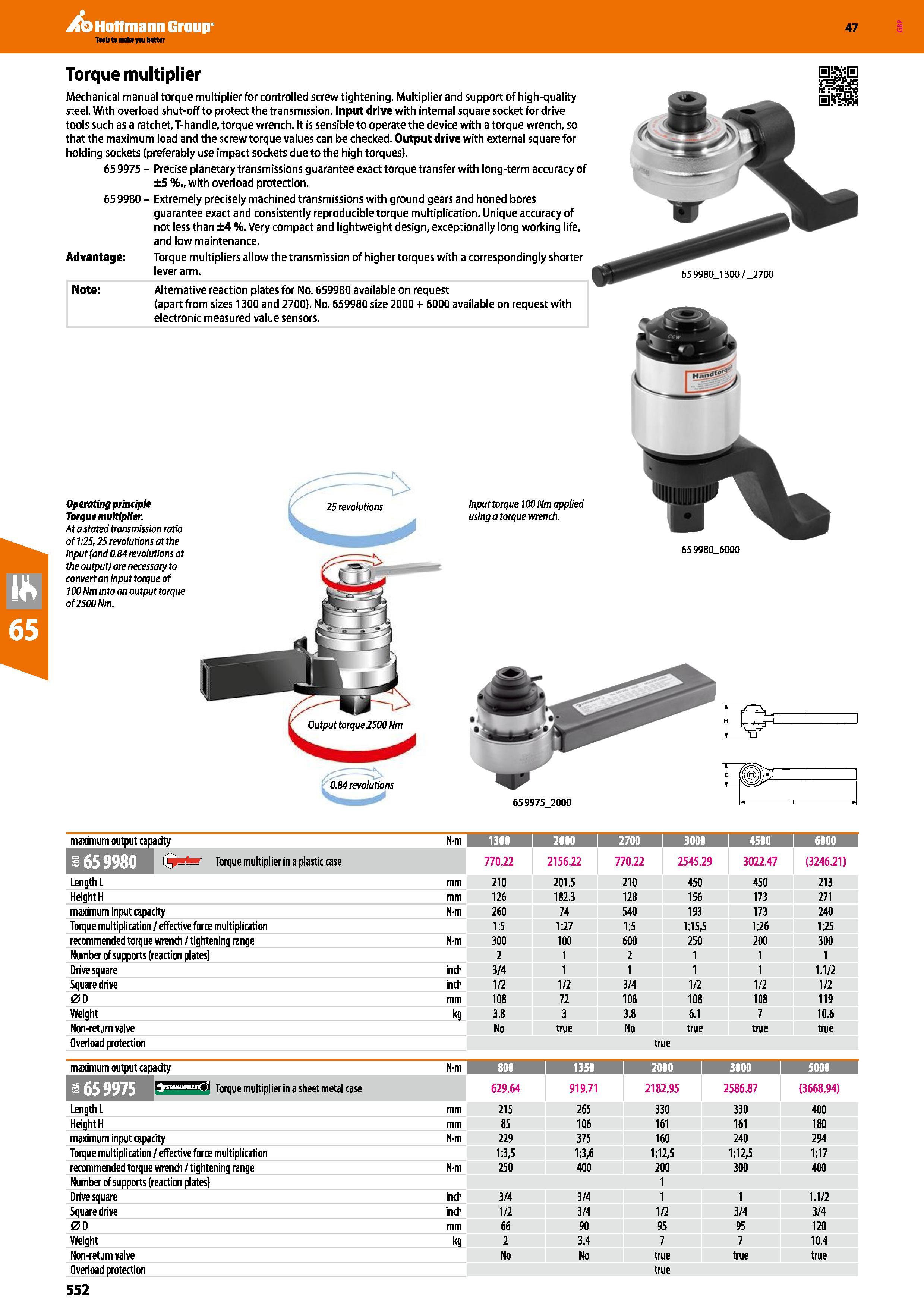

Hoffmann Group 47 maximum output capacity N-m 1300 2700 i 3000 i 4500 Crater Torque multiplier in a plastic case 770.22 2156.22 770.22 2545.29 3022.47 (3246.21) Length L mm 210 201.5 210 450 450 213 Height H mm 126 182.3 128 156 173 271 maximum input capacity N-m 260 74 540 193 173 240 Torque multiplication / effective force multiplication 1:5 1:27 1:5 1:15,5 1:26 1:25 recommended torque wrench / tightening range N-m 300 100 600 250 200 300 Number of supports (reaction plates) 2 1 2 1 1 1 Drive square inch 3/4 1 1 1 1 1.1/2 Square drive inch 1/2 1/2 3/4 1/2 1/2 1/2 0D mm 108 72 108 108 108 119 Weight kg 3.8 3 3.8 6.1 7 10.6 Non-return valve No true No true true true Overload protection true maximum output capacity N-m 800 i 1350 2000 I 3000 5000 I feT 'VIJ L CIHBBS Torque multiplier in a sheet metal case 629.64 919.71 2182.95 2586.87 (3668.94) Length L mm 215 265 330 330 400 Height H mm 85 106 161 161 180 maximum input capacity N-m 229 375 160 240 294 Torque multiplication / effective force multiplication 1:3,5 1:3,6 1:12,5 1:12,5 1:17 recommended torque wrench / tightening range N-m 250 400 200 300 400 Numberof supports (reaction plates) 1 Drive square inch 3/4 3/4 1 1 1.1/2 Square drive inch 1/2 3/4 1/2 3/4 3/4 0D mm 66 90 95 95 120 Weight kg 2 3.4 7 7 10.4 Non-return valve No No true true true Overload protection 552 true Note: Alternative reaction plates for No. 659980 available on request (apart from sizes 1300 and 2700). No. 659980 size 2000 + 6000 available on request with electronic measured value sensors. Torque multiplier Mechanical manual torque multiplier for controlled screw tightening. Multiplier and support of high-quality steel. With overload shut-off to protect the transmission. Input drive with internal square socket for drive tools such as a ratchet,T-handle, torque wrench. It is sensible to operate the device with a torque wrench, so that the maximum load and the screw torque values can be checked. Output drive with external square for holding sockets (preferably use impact sockets due to the high torques). 65 9975 - Precise planetary transmissions guarantee exact torque transfer with long-term accuracy of ±5 %., with overload protection. 65 9980 - Extremely precisely machined transmissions with ground gears and honed bores guarantee exact and consistently reproducible torque multiplication. Unique accuracy of not less than ±4 %. Very compact and lightweight design, exceptionally long working life, and low maintenance. Advantage: Torque multipliers allow the transmission of higher torques with a correspondingly shorter lever arm. 65 9980_1300 / _2700 Output torque2500 Nm 0.84 revolutions Operating principle Torque multiplier. At a stated transmission ratio of 1:25,25revolutions at the input (and 0.84 revolutions at the output) are necessary to convert an input torque of 100 Nm into an output torque of2500 Nm. 25 revolutions Input torque 100 Nm applied using a torque wrench. 65 9975_2000 65 9980_6000
