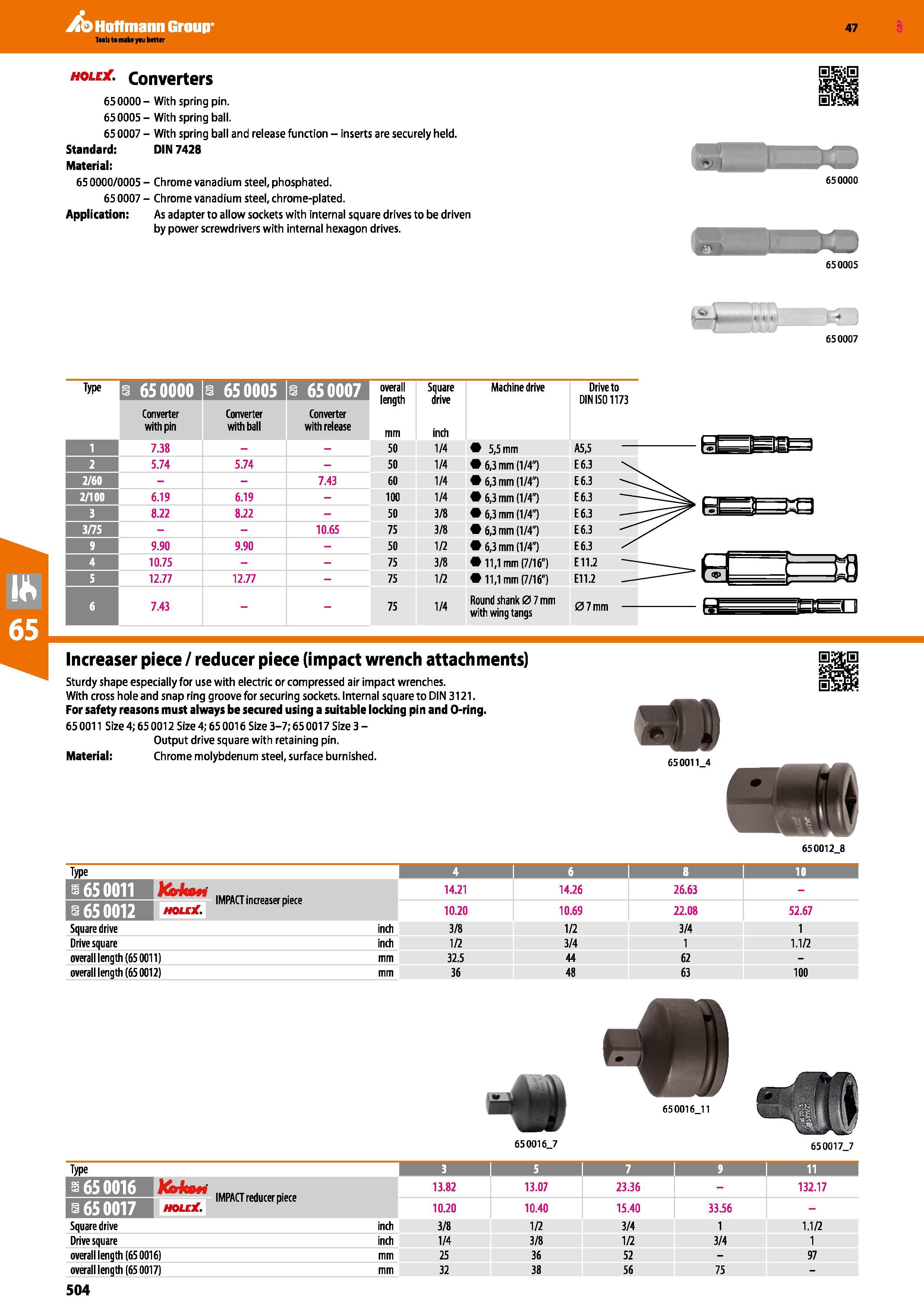

Hoffmann Group 47 hole . Converters 650000- With spring pin. 650005 - With spring ball. 65 0007 - With spring ball and release function - inserts are securely held. Standard: DIN 7428 Material: 65 0000/0005 - Chrome vanadium steel, phosphated. 65 0007 - Chrome vanadium steel, chrome-plated. Application: As adapter to allow sockets with internal square drives to be driven by power screwdrivers with internal hexagon drives. 650000 650005 650007 Type 65 0000 650005 650007 Converter with pin 7.38 5.74 6.19 8.22 9.90 10.75 12.77 7.43 Converter with ball 5.74 6.19 8.22 9.90 12.77 Converter with release 7.43 10.65 overall length mm 50 50 60 100 50 75 50 75 75 75 Square drive inch 1/4 1/4 1/4 1/4 3/8 3/8 1/2 3/8 1/2 1/4 Machine drive 5,5 mm 6,3 mm (1/4") 6,3 mm (1/4") 6,3 mm (1/4") 6,3 mm (1/4") 6,3 mm (1/4") 6,3 mm (1/4") 11,1 mm (7/16") 11,1 mm (7/16") Round shank 0 7 mm with wing tangs Drive to DIN IS01173 07 mm Increaser piece / reducer piece (impact wrench attachments) Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. For safety reasons must always be secured using a suitable locking pin and O-ring. 65 0011 Size 4; 65 0012 Size 4; 65 0016 Size 3-7; 65 0017 Size 3 -Output drive square with retaining pin. Material: Chrome molybdenum steel, surface burnished. 650011_4 650012_ Type 4 1 6 I 8 1 10 1 65 0011 /(oluif 1 jncreaser piece HOLClC. 14.21 14.26 26.63 - 65 0012 10.20 10.69 22.08 52.67 Square drive inch 3/8 1/2 3/4 1 Drive square inch 1/2 3/4 1 1.1/2 overall length (650011) mm 32.5 44 62 - overall length (65 0012) mm 36 48 63 100 650016 11 650016_7 650017_7 Type 3 1 3 7 1 9 1 11 I 65 0016 1 tCfrtfffff IMPACT roHnror nioro 13.82 13.07 23.36 - 132.17 65 0017 iivir/u. i reauter piete hqlbC. 10.20 10.40 15.40 33.56 - Square drive inch 3/8 1/2 3/4 1 1.1/2 Drive square inch 1/4 3/8 1/2 3/4 1 overall length (65 0016) mm 25 36 52 - 97 overall length (65 0017) mm 32 38 56 75 - 504
