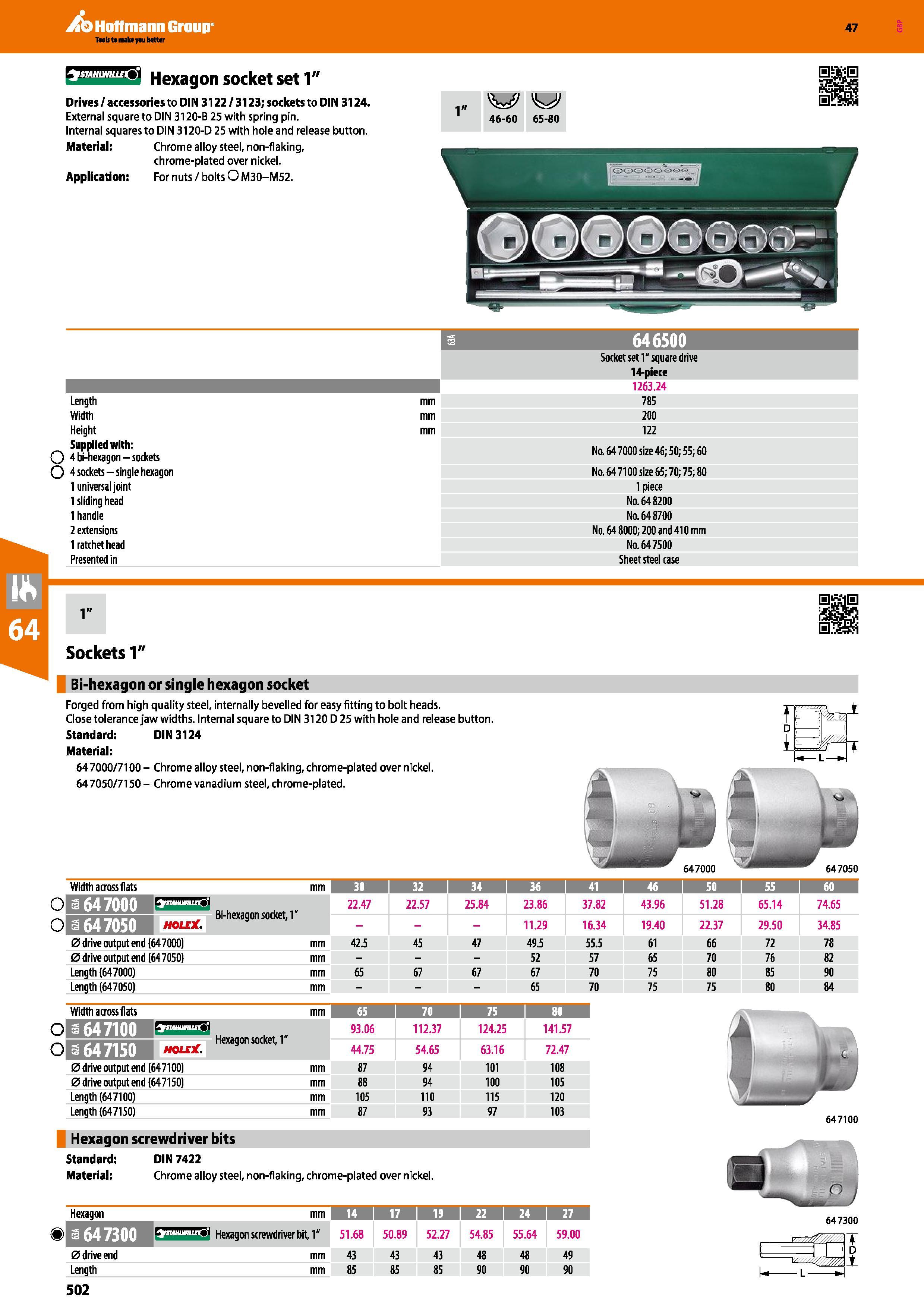

Hoffmann Group 47 Hexagon socket set Y Drives / accessories to DIN 3122 / 3123; sockets to DIN 3124. External square to DIN 3120-B 25 with spring pin. Internal squares to DIN 3120-D25 with hole and release button. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. Application: For nuts / bolts O M30-M52. 1" 46-60 65-80 646500 I Socket set 1" square drive 14-piece 1263.24 785 Length mm Width mm 200 Height mm 122 Supplied with: i 4 bi-hexagon - sockets Na 64 7000 size 46; 50; 55; 60 i 4 sockets-single hexagon Na 64 7100 size 65; 70; 75; 80 1 universal joint 1 piece 1 sliding head Na 648200 1 handle No. 64 8700 2 extensions No. 64 8000; 200 and 410 mm 1 ratchet head Na 647500 Presented in Sheet steel case 1" Sockets 1" Bi-hexagon or single hexagon socket Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Close tolerance jaw widths. Internal square to DIN 3120 D 25 with hole and release button. Standard: DIN 3124 Material: 647000/7100 - Chrome alloy steel, non-flaking, chrome-plated over nickel. 647050/7150- Chrome vanadium steel, chrome-plated. 647000 647050 Width across flats mm 30 1 32 1 34 1 36 I 41 i 46 I 50 I 55 I 60 m 64 7000 c 22.47 22.57 25.84 23.86 37.82 43.96 51.28 65.14 74.65 m DPIlCAOyvil JvvlVcl, 1 RfZwl mLcX 11.29 16.34 19.40 22.37 29.50 34.85 0 drive output end (647000) mm 42.5 45 47 49.5 55.5 61 66 72 78 0 drive output end (64 7050) mm 52 57 65 70 76 82 Length (647000) mm 65 67 67 67 70 75 80 85 90 Length (647050) mm 65 70 75 75 80 84 Width across flats mm 1 70 1 75 1 80 H i 64 7100 93.06 112.37 124.25 141.57 _ ntxaumi auiRCi, i o aSHEM 44.75 54.65 63.16 72.47 0 drive output end (647100) mm 87 94 101 108 0 drive output end (647150) mm 88 94 100 105 Length (647100) mm 105 110 115 120 Length (647150) mm 87 93 97 103 647100 Hexagon screwdriver bits Standard: DIN 7422 Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. m Hexagon mm MUM I 17 19 1 22 1 24 1 27 la 64 7300 fcjtfjjyjiisi Hexagon screwdriver bit, 1" 51.68 50.89 52.27 54.85 55.64 59.00 0 drive end mm 43 43 43 48 48 49 Length mm 85 85 85 90 90 90 502
