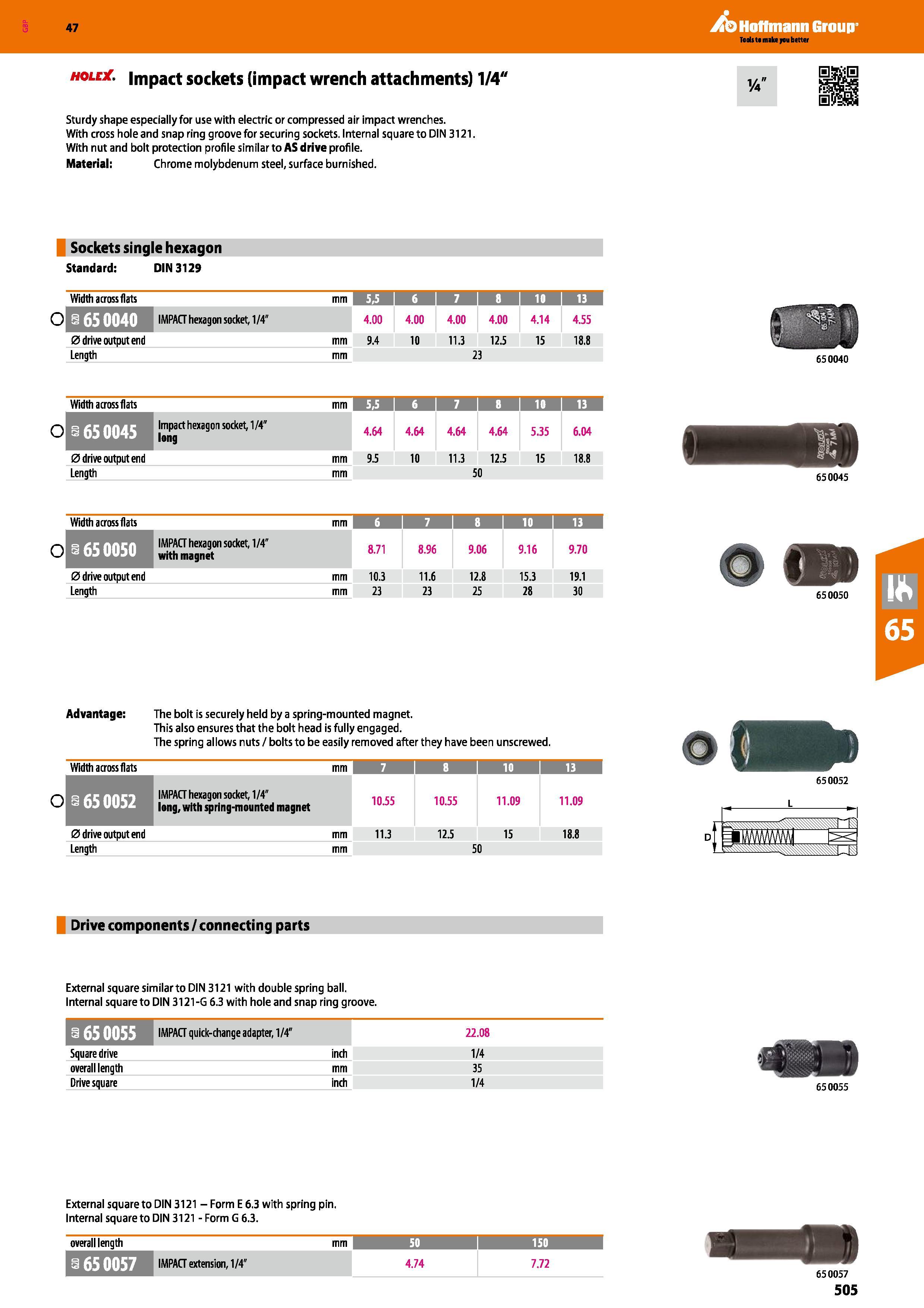

hole , impact sockets (impact wrench attachments) 1/4" Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. With nut and bolt protection profile similar to AS drive profile. Material: Chrome molybdenum steel, surface burnished. Sockets single hexagon Standard: DIN 3129 Width across flats 10 13 165 0040 IMPACT hexagon socket, 1/4" 4.00 4.00 4.00 4.00 4.14 4.55 0 drive output end mm 9.4 10 11.3 12.5 15 18.8 Length mm 23 Width across flats mm I 5,5 I 1 7 8 10 1 13 65 0045 Impact hexagon socket, 1 /4" long 4.64 4.64 4.64 4.64 5.35 6.04 0 drive output end mm 9.5 10 11.3 12.5 15 18.8 Length mm 50 o Width across flats mm 6 7 1 8 10 1 13 650050 IMPACT hexagon socket, 1/4" with magnet 8.71 8.96 9.06 9.16 9.70 0 drive output end mm 10.3 11.6 12.8 15.3 19.1 Length mm 23 23 25 28 30 Advantage: The bolt is securely held by a spring-mounted magnet. This also ensures that the bolt head is fully engaged. The spring allows nuts / bolts to be easily removed after they have been unscrewed. o Width across flats mm 7 8 10 I 13 1 650052 IMPACT hexagon socket, 1/4" long, with spring-mounted magnet 10.55 10.55 11.09 11.09 0 drive output end mm 11.3 12.5 15 18.8 Length 50 Drive components/connecting parts External square similar to DIN 3121 with double spring ball. Internal square to DIN 3121 -G 6.3 with hole and snap ring groove. fcTjJJlJlL B IMPACT quick-change adapter, 1/4" 22.08 Square drive inch 1/4 overall length mm 35 Drive square inch 1/4 External square to DIN 3121 - Form E 6.3 with spring pin. Internal square to DIN 3121 - Form G 6.3. overall length mm 50 i 150 IMPACT extension, 1/4" 4.74 7.72
