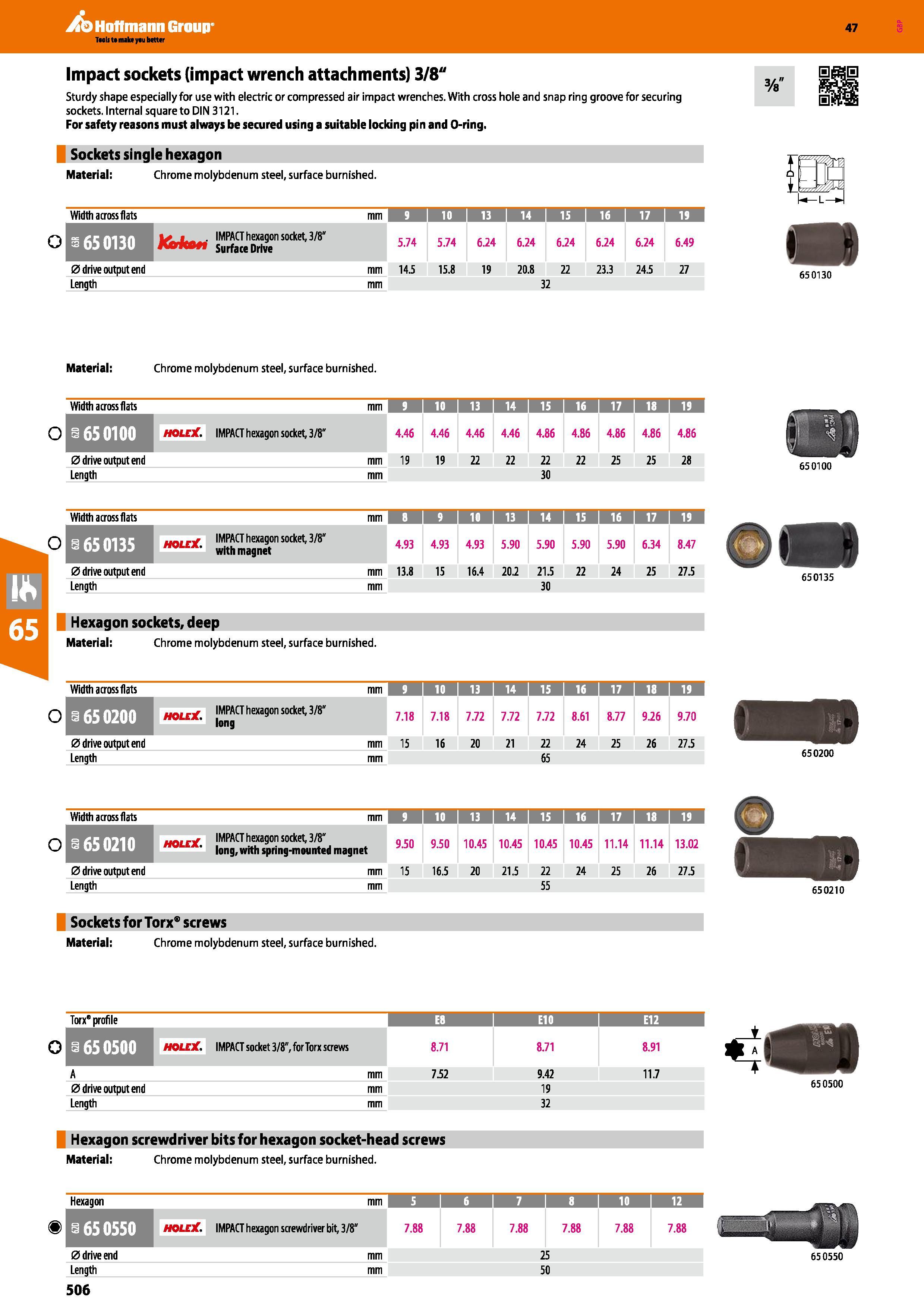

Impact sockets (impact wrench attachments) 3/8" Sturdy shape especially for use with electric or compressed air impact wrenches. With cross hole and snap ring groove for securing sockets. Internal square to DIN 3121. For safety reasons must always be secured using a suitable locking pin and O-ring. Sockets single hexagon Material: Chrome molybdenum steel, surface burnished. Width across flats mm 9 1 10 1 13 1 14 1 is 1 16 1 17 1 is 3 = 650130 ly. i.. . IMPACT hexagon socket, 3/8" Surface Drive 5.74 5.74 6.24 6.24 6.24 6.24 6.24 6.49 0 drive output end mm 14.5 15.8 19 20.8 22 23.3 24.5 27 Length mm 32 Material: Chrome molybdenum steel, surface burnished. o 650100 hole . IMPACT hexagon socket, 3/8" 4.46 4.46 4.46 4.46 4.86 4.86 4.86 4.86 4.86 0 drive output end mm 19 19 22 22 22 22 25 25 28 Length mm 30 Width across flats mm 1 I 10 1 13 1 14 1 15 1 16 1 17 1 19 a 65 0135 um-v IMPACT hexagon socket, 3/8" with magnet 4.93 4.93 4.93 5.90 5.90 5.90 5.90 6.34 8.47 0 drive output end mm 13.8 15 16.4 20.2 21.5 22 24 25 27.5 Length mm 30 Hexagon sockets, deep Material: Chrome molybdenum steel, surface burnished. o Width across flats mm 9 1 10 1 13 1 14 1 15 1 16 1 17 1 18 1 IS 65 0200 holeX IMPACT hexagon socket, 3/8" long 7.18 7.18 7.72 7.72 7.72 8.61 8.77 9.26 9.70 0 drive output end mm 15 16 20 21 22 24 25 26 27.5 Length mm 65 o Width across flats mm 1 10 1 13 1 14 1 15 1 16 1 17 1 18 1 19 650210 holeX IMPACT hexagon socket, 3/8" long, with spring-mounted magnet 9.50 9.50 10.45 10.45 10.45 10.45 11.14 11.14 13.02 0 drive output end mm 15 16.5 20 21.5 22 24 25 26 27.5 Length mm 55 Sockets for Torx8 screws Material: Chrome molybdenum steel, surface burnished. Torx” profile E8 E10 I E12 a 65 0500 HOLEX. IMPACT socket 3/8", for Torx screws 8.71 8.71 8.91 A mm 152 9.42 11.7 0 drive output end mm 19 Length mm 32 Hexagon screwdriver bits for hexagon socket-head screws Material: Chrome molybdenum steel, surface burnished. Hexagon mm 5 I 6 I 7 I 8 10 1 12 650550 HOLEX. IMPACT hexagon screwdriver bit, 3/8" 7.88 7.88 7.88 7.88 7.88 7.88 0 drive end mm 25 Length mm 50
