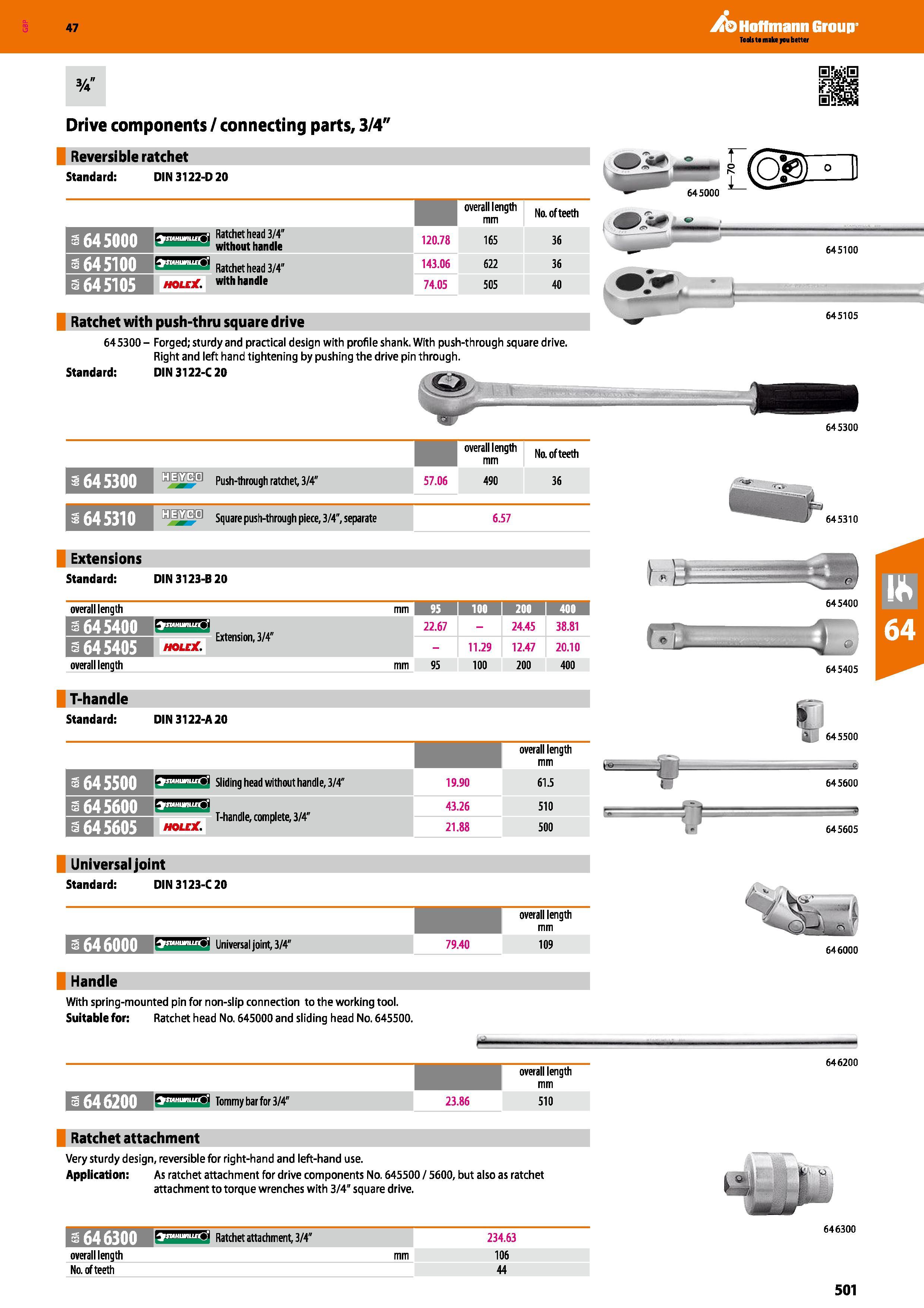

Drive components / connecting parts, 3/4" Reversible ratchet Standard: DIN 3122-D 20 overall length mm Na of teeth a 64 5000 l minimum Ratchet head 3/4" without handle 120.78 165 36 a 645100 tMiUUia Ratchet head 3/4" 143.06 622 36 s 645105 moujT. handle 74.05 505 40 Ratchet with push-thru square drive 645300 - Forged; sturdy and practical design with profile shank. With push-through square drive. Right and left hand tightening by pushing the drive pin through. Standard: DIN3122-C20 overall length mm Na of teeth £645300 EjllVHs push-through ratchet 3/4" 57.06 490 36 Square push-through piece, 3/4", separate 6.57 Extensions Standard: DIN3123-B20 overall length mm 95 1 100 nm 400 f 645400 I f 22.67 - 24.45 38.81 3 645405 uieiaiun, t HOLE . - 11.29 12.47 20.10 overall length mm 95 100 200 400 T-handle Standard: DIN3122-A20 overall length mm 645500 Sliding head without handle, 3/4" 19.90 61.5 s 645600 43.26 510 3 645605 i-iwnuie, lunitme, im HOLEX. 21.88 500 Universal joint Standard: DIN 3123-C 20 overall length mm a 64 6000 Hum le( 'j Universal joint, 3/4" 79.40 109 Handle With spring-mounted pin for non-slip connection to the working tool. Suitable for: Ratchet head No. 645000 and sliding head No. 645500. overall length mm a 64 6200 SMHUBUfO Tommy bar for 3/4" 23.86 510 Ratchet attachment Very sturdy design, reversible for right-hand and left-hand use. Application: As ratchet attachment for drive components No. 645500 / 5600, but also as ratchet attachment to torque wrenches with 3/4" square drive. I a 64 6300 234.63 overall length mm 106 Na of teeth 44
