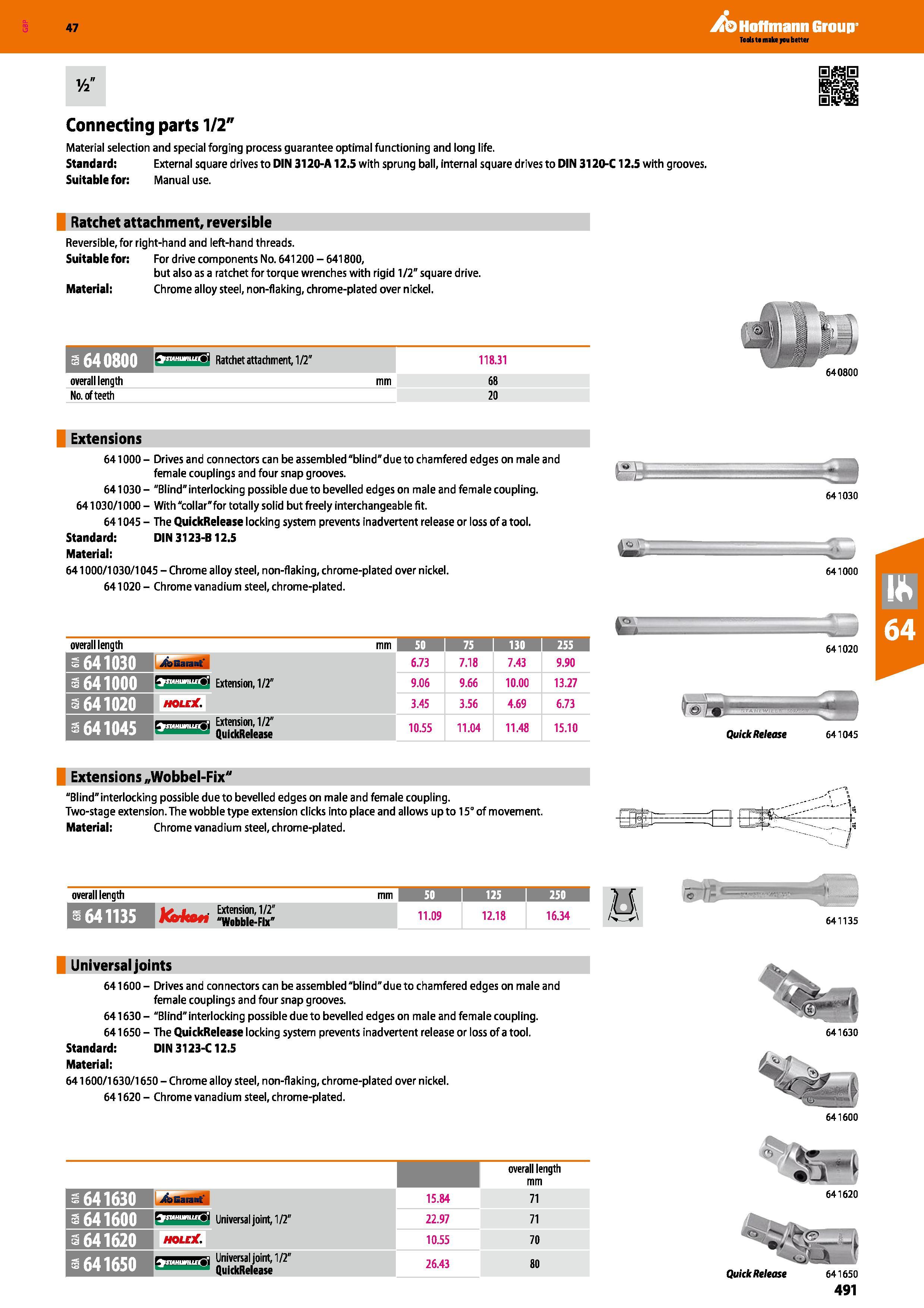

Hoffmann Group 47 0R S Connecting parts 1/2" Material selection and special forging process guarantee optimal functioning and long life. Standard: External square drives to DIN 3120-A 12.5 with sprung ball, internal square drives to DIN 3120-C 12.5 with grooves. Suitable for: Manual use. Ratchet attachment, reversible Reversible, for right-hand and left-hand threads. Suitable for: For drive components No. 641200 - 641800, but also as a ratchet for torque wrenches with rigid 1/2" square drive. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. 3 64 0800 118.31 overall length mm 68 No. of teeth 20 Extensions 641000 - Drives and connectors can be assembled"blind"due to chamfered edges on male and female couplings and four snap grooves. 641030 - "Blind" interlocking possible due to bevelled edges on male and female coupling. 641030/1000 - With "collar"for totally solid but freely interchangeable fit. 641045 - The QuickRelease locking system prevents inadvertent release or loss of a tool. Standard: DIN3123-B12.5 Material: 641000/1030/1045 - Chrome alloy steel, non-flaking, chrome-plated over nickel. 641020 - Chrome vanadium steel, chrome-plated. fSrlb 641030 641000 overall length mm 50 I 75 130 I 255 3 641030 6.73 7.18 7.43 9.90 3 641000 Extension, 1/2" 9.06 9.66 10.00 13.27 3 641020 HOLEjC. 3.45 3.56 4.69 6.73 3 641045 L ui.iiiiijiijaj Extension, 1/2" QuickRelease 10.55 11.04 11.48 15.10 641020 QuickRelease 641045 Extensions „Wobbel-Fix" "Blind" interlocking possible due to bevelled edges on male and female coupling. Two-stage extension. The wobble type extension clicks into place and allows up to 15° of movement. Material: Chrome vanadium steel, chrome-plated. d IJ jSt -zr-tlll 1 overall length mm j 125 i 250 ICarkoti “Wobbk-Fix” 11.09 12.18 16.34 H 641135 Universal joints 641600- Drives and connectors can be assembled"blind"due to chamfered edges on male and female couplings and four snap grooves. 641630- "Blind" interlocking possible due to bevelled edges on male and female coupling. 641650 - The QuickRelease locking system prevents inadvertent release or loss of a tool. Standard: DIN3123-C12.5 Material: 641600/1630/1650 - Chrome alloy steel, non-flaking, chrome-plated over nickel. 641620 - Chrome vanadium steel, chrome-plated. 640800 641630 641600 641620 3 641600 3 641620 Gaiant' SHHUHUfO HOLCX. 1641650 SHHUHUfO' Universal joint, 1/2" Universal joint, 1/2" QuickRelease 15.84 22.97 10.55 26.43 overall length mm 71 71 70 QuickRelease
