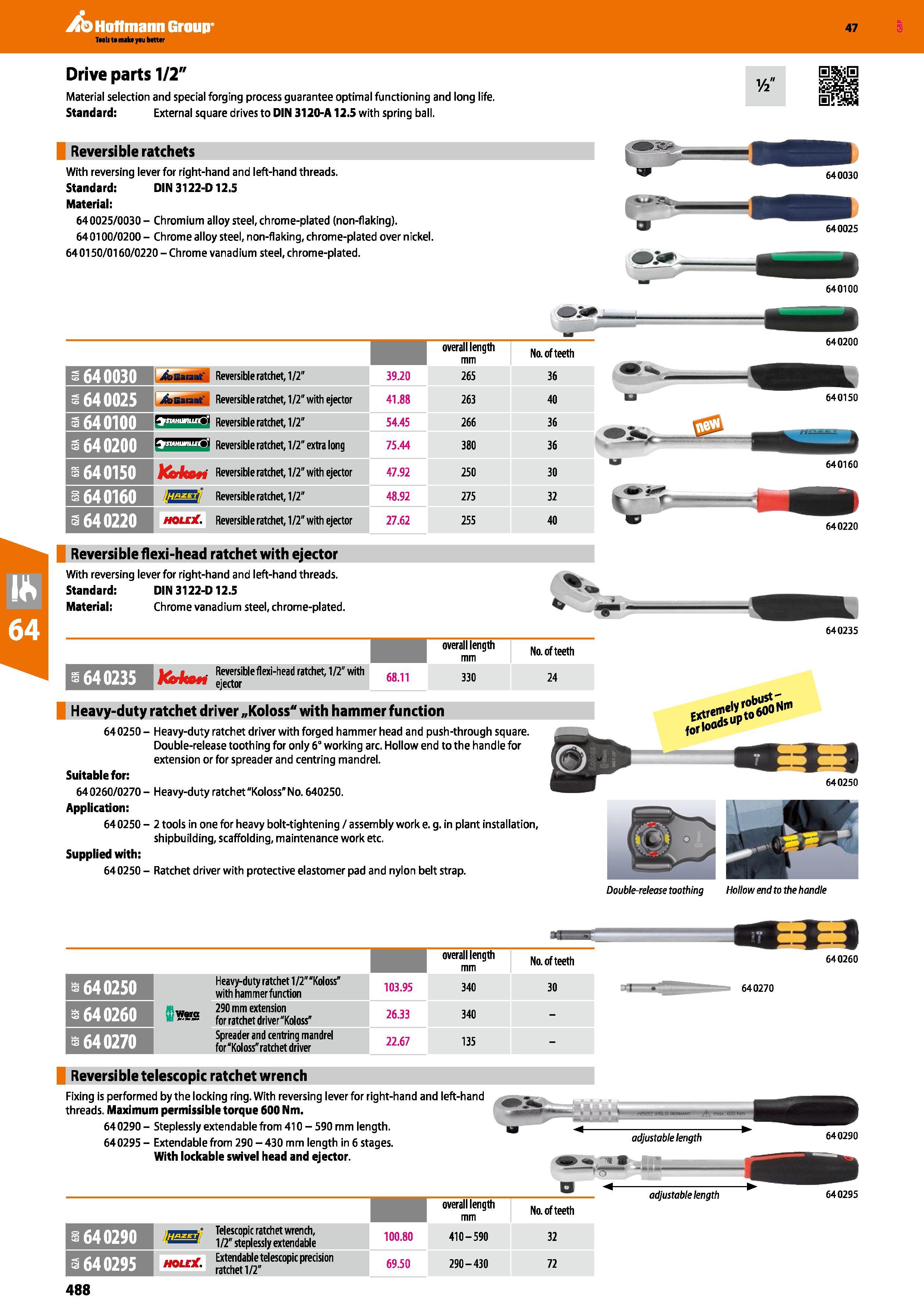

Hoffmann Group 47 Drive parts MY Material selection and special forging process guarantee optimal functioning and long life. Standard: External square drives to DIN 3120-A 12.5 with spring ball. Reversible ratchets With reversing lever for right-hand and left-hand threads. Standard: DIN 3122-D 12.5 Material: 640025/0030 - Chromium alloy steel, chrome-plated (non-flaking). 640100/0200 - Chrome alloy steel, non-flaking, chrome-plated over nickel. 640150/0160/0220 - Chrome vanadium steel, chrome-plated. . jp . 640030 640025 640100 overall length mm Na of teeth -64 0030 Reversible ratchet, 1/2" 39.20 265 36 -64 0025 Reversible ratchet, 112" with ejector 41.88 263 40 a 640100 Reversible ratchet, 1/2" 54.45 266 36 a 64 0200 Reversible ratchet, 1/2" extra long 75.44 380 36 = 640150 Htt koti Reversible ratchet, 1/2" with ejector 47.92 250 30 640160 //.y.-r-fW Reversible ratchet, 1 /2" 48.92 275 32 a 64 0220 holeX. Reversible ratchet, 1/2" with ejector 27.62 255 40 Reversible flexi-head ratchet with ejector With reversing lever for right-hand and left-hand threads. Standard: DIN 3122-D 12.5 Material: Chrome vanadium steel, chrome-plated. overall length mm Na of teeth a 64 0235 i . Reversible flexi-head ratchet, 1 /2" with JWNMf ejector 68.11 330 24 640200 D 3 640150 r 640160 Heavy-duty ratchet driver „Koloss" with hammer function 640250 - Heavy-duty ratchet driver with forged hammer head and push-through square. Double-release toothing for only 6° working arc. Hollow end to the handle for extension or for spreader and centring mandrel. Suitable for: 64 0260/0270 - Heavy-duty ratchet "Koloss” No. 640250. Application: 640250- 2 tools in one for heavy bolt-tightening/assembly work e.g. in plant installation, shipbuilding, scaffolding, maintenance work etc. Supplied with: 640250 - Ratchet driver with protective elastomer pad and nylon belt strap. forl°° 640220 640235 640250 Double-release toothing Hollow end to the handle overall length mm Na of teeth Heavy-duty ratchet 1/2"“Koloss” with hammer function 103.95 340 30 Wtora 290 mm extension for ratchet driver“Koloss" 26.33 340 - Spreader and centring mandrel for“Koloss" ratchet driver 22.67 135 - 640260 64 0270 Reversible telescopic ratchet wrench Fixing is performed by the locking ring. With reversing lever for right-hand and left-hand threads. Maximum permissible torque 600 Nm. 640290- Steplessly extendable from 410 - 590 mm length. 640295 - Extendable from 290 - 430 mm length in 6 stages. With lockable swivel head and ejector. overall length mm Na of teeth s 64 0290 trrrm' Telescopic ratchet wrench, = 1/2" steplessly extendable 100.80 410-590 32 a 64 0295 Extendable telescopic precision ratchet 1/2" 69.50 290 - 430 72 adjustable length 640295 488
