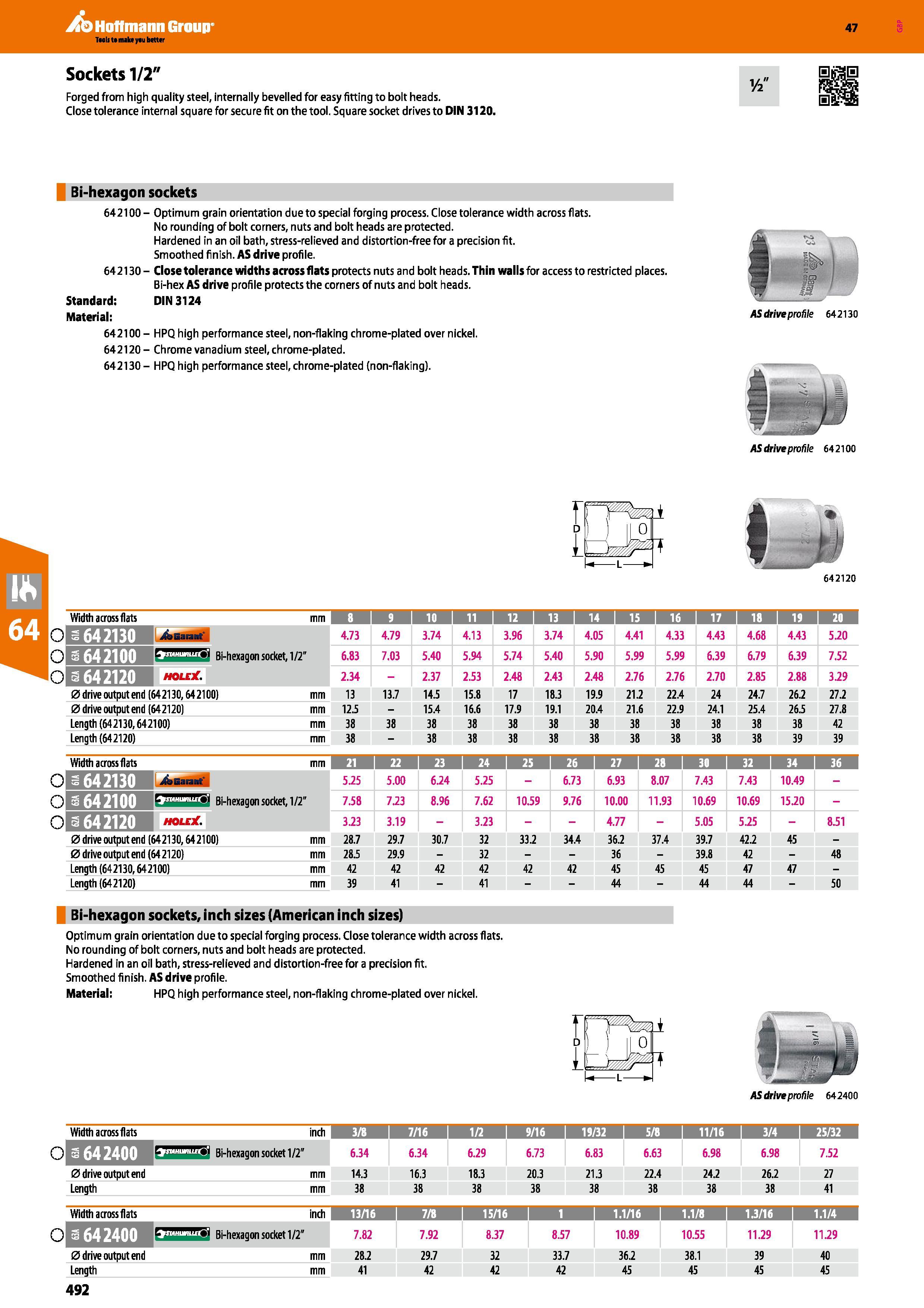

Hoffmann Group Teols t make yau better Sockets 1/2" Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Close tolerance internal square for secure fit on the tool. Square socket drives to DIN 3120. Bi-hexagon sockets 642100 - Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. AS drive profile. 64 2130 - Close tolerance widths across flats protects nuts and bolt heads. Thin walls for access to restricted places. Bi-hex AS drive profile protects the corners of nuts and bolt heads. Standard: DIN 3124 Material: 642100 - HPQ high performance steel, non-flaking chrome-plated over nickel. 642120 - Chrome vanadium steel, chrome-plated. 642130- HPQ high performance steel, chrome-plated (non-flaking). AS drive profile 642130 ASdriveprofile 642100 642120 Width across flats mm 8 1 9 I n 1 11 1 12 1 13 1 14 I 15 1 16 1 17 1 1 1 U io o = 642130 4.73 4.79 3.74 4.13 3.96 3.74 4.05 4.41 4.33 4.43 4.68 4.43 5.20 O a.tlUIIIll Bi-hexaqonsocket, 1/2" 6.83 7.03 5.40 5.94 5.74 5.40 5.90 5.99 5.99 6.39 6.79 6.39 7.52 o s 642120 SS 2.34 - 2.37 2.53 2.48 2.43 2.48 2.76 2.76 2.70 2.85 2.88 3.29 0 drive output end (642130,642100) mm 13 13.7 14.5 15.8 17 18.3 19.9 21.2 22.4 24 24.7 26.2 27.2 0 drive output end (642120) mm 12.5 - 15.4 16.6 17.9 19.1 20.4 21.6 22.9 24.1 25.4 26.5 27.8 Length (642130,642100) mm 38 38 38 38 38 38 38 38 38 38 38 38 42 Length (642120) mm 38 - 38 38 38 38 38 38 38 38 38 39 39 Width across flats mm 21 22 1 23 1 24 I 23 26 1 27 i 28 1 30 1 32 1 34 1 36 O s 642130 5.25 5.00 6.24 5.25 - 6.73 6.93 8.07 7.43 7.43 10.49 - O 7.58 7.23 8.96 7.62 10.59 9.76 10.00 11.93 10.69 10.69 15.20 - O a 642120 B9 3.23 3.19 - 3.23 4.77 - 5.05 5.25 - 8.51 0 drive output end (642130,642100) mm 28.7 29.7 30.7 32 33.2 34.4 36.2 37.4 39.7 42.2 45 - 0 drive output end (642120) mm 28.5 29.9 - 32 36 - 39.8 42 - 48 Length (642130,642100) mm 42 42 42 42 42 42 45 45 45 47 47 - Length (642120) mm 39 41 - 41 44 - 44 44 - 50 Bi-hexagon sockets, inch sizes (American inch sizes) Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. AS drive profile. Material: HPQ high performance steel, non-flaking chrome-plated over nickel. ASdriveprofile 642400 Width across flats inch 3/8 j 7/16 1/2 j 9/16 1 19/32 5/8 i 11/16 3/4 25/32 I 5 642400 Bi-hexagon socket 1/2" 6.34 6.34 6.29 6.73 6.83 6.63 6.98 6.98 7.52 0 drive output end mm 14.3 16.3 18.3 20.3 21.3 22.4 24.2 26.2 27 Length mm 38 38 38 38 38 38 38 38 41 Width across flats 13/16 7/8 I 15/16 1 1 1.1/16 1.1/8 I 1.3/16 1.1/4 1 I s 642400 Bi-hexagon socket 1/2" 7.82 7.92 8.37 8.57 10.89 10.55 11.29 11.29 0 drive output end mm 28.2 29.7 32 33.7 36.2 38.1 39 40 Length mm 41 42 42 42 45 45 45 45
