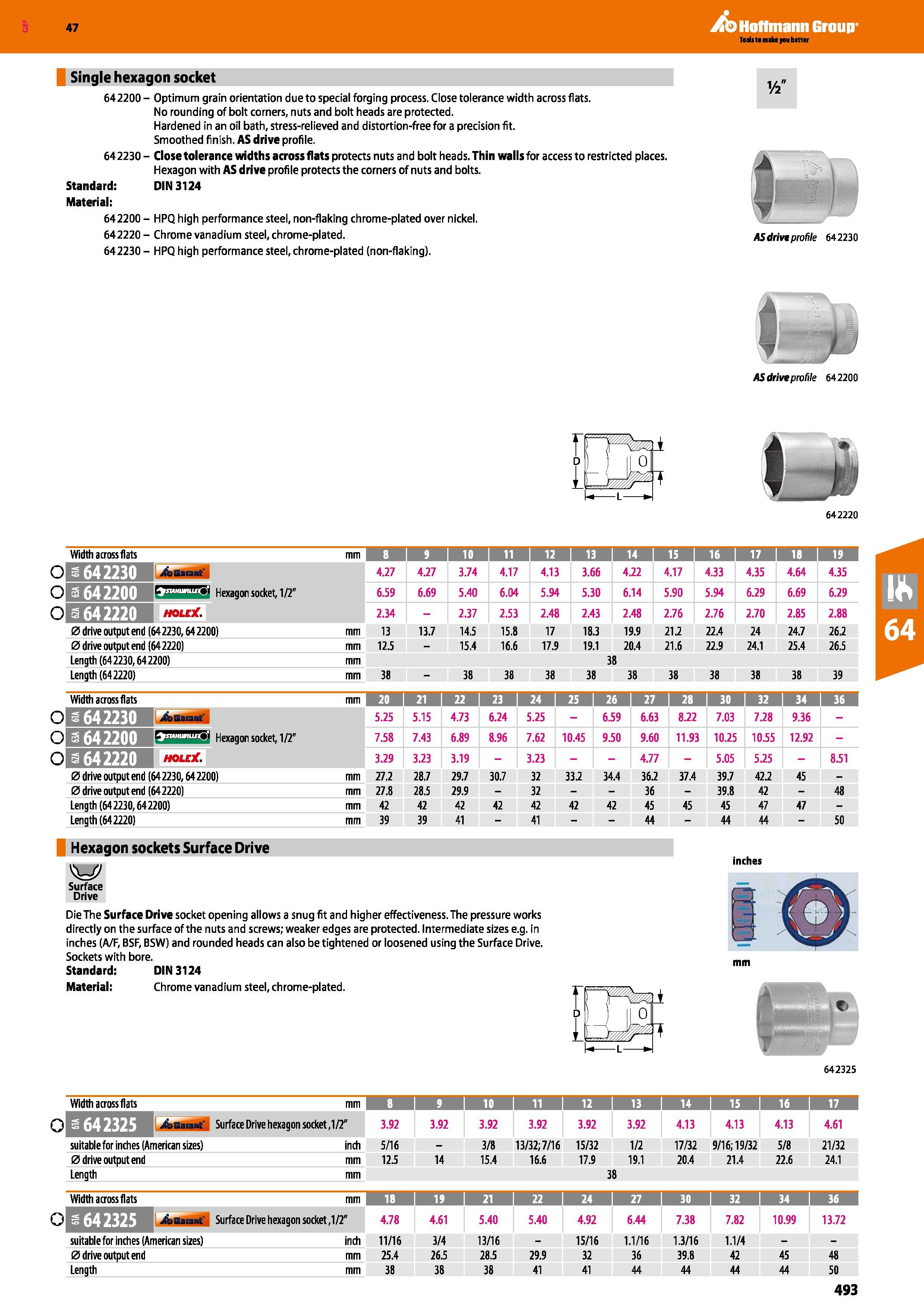

Hoffmann Group 47 Single hexagon socket 642200 - Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. AS drive profile. 64 2230 - Close tolerance widths across flats protects nuts and bolt heads. Thin walls for access to restricted places. Hexagon with AS drive profile protects the corners of nuts and bolts. Standard: DIN 3124 Material: 642200 - HPQ high performance steel, non-flaking chrome-plated over nickel. 642220 - Chrome vanadium steel, chrome-plated. 642230- HPQ high performance steel, chrome-plated (non-flaking). AS drive profile 64 2230 AS drive pro die 64 2200 642220 Width across flats mm 8 I 9 1 1 I 11 1 12 I 13 I 14 1 15 I 16 1 H I 19 o s 642230 4.27 4.27 3.74 4.17 4.13 3.66 4.22 4.17 4.33 4.35 4.64 4.35 o 6.59 6.69 5.40 6.04 5.94 5.30 6.14 5.90 5.94 6.29 6.69 6.29 2.34 - 2.37 2.53 2.48 2.43 2.48 2.76 2.76 2.70 2.85 2.88 0 drive output end (64 2230,64 2200) mm 13 13.7 14.5 15.8 17 18.3 19.9 21.2 22.4 24 24.7 26.2 0 drive output end (64 2220) mm 12.5 - 15.4 16.6 17.9 19.1 20.4 21.6 22.9 24.1 25.4 26.5 Length (642230,642200) mm 38 Length (642220) mm 38 - 38 38 38 38 38 38 38 38 38 39 Width across flats o S 64 2230 5.25 5.15 4.73 6.24 5.25 - 6.59 6.63 8.22 7.03 7.28 9.36 - o 7.58 7.43 6.89 8.96 7.62 10.45 9.50 9.60 11.93 10.25 10.55 12.92 - 3.29 3.23 3.19 - 3.23 4.77 - 5.05 5.25 - 8.51 0 drive output end (64 2230,64 2200) mm 27.2 28.7 29.7 30.7 32 33.2 34.4 36.2 37.4 39.7 42.2 45 - 0 drive output end (64 2220) mm 27.8 28.5 29.9 - 32 36 - 39.8 42 - 48 Length (642230,642200) mm 42 42 42 42 42 42 42 45 45 45 47 47 - Length (642220) mm 39 39 41 - 41 44 - 44 44 - 50 Hexagon sockets Surface Drive w Surface Drive Die The Surface Drive socket opening allows a snug fit and higher effectiveness. The pressure works directly on the surface of the nuts and screws; weaker edges are protected. Intermediate sizes e.g. in inches (A/F, BSF, BSW) and rounded heads can also be tightened or loosened using the Surface Drive. Sockets with bore. Standard: DIN 3124 Material: Chrome vanadium steel, chrome-plated. inches 642325 o Width across flats mm 8 I 9 I 10 1 11 1 12 1 13 1 14 1 15 1 16 I 17 s 642325 Surface Drive hexagon socket ,1/2" 3.92 3.92 3.92 3.92 3.92 3.92 4.13 4.13 4.13 4.61 suitable for inches (American sizes) inch 5/16 - 3/8 13/32;7/16 15/32 1/2 17/32 9/16; 19/32 5/8 21/32 0 drive output end mm 12.5 14 15.4 16.6 17.9 19.1 20.4 21.4 22.6 24.1 Length mm 38 o Width across flats mm 18 19 I 21 1 22 I 24 1 27 I 30 i 32 i 34 36 f s642325 Surface Drive hexagon socket ,1/2" 4.78 4.61 5.40 5.40 4.92 6.44 7.38 7.82 10.99 13.72 suitable for inches (American sizes) inch 11/16 3/4 13/16 - 15/16 1.1/16 1.3/16 1.1/4 0 drive output end mm 25.4 26.5 28.5 29.9 32 36 39.8 42 45 48 Length mm 38 38 38 41 41 44 44 44 44 50 493
