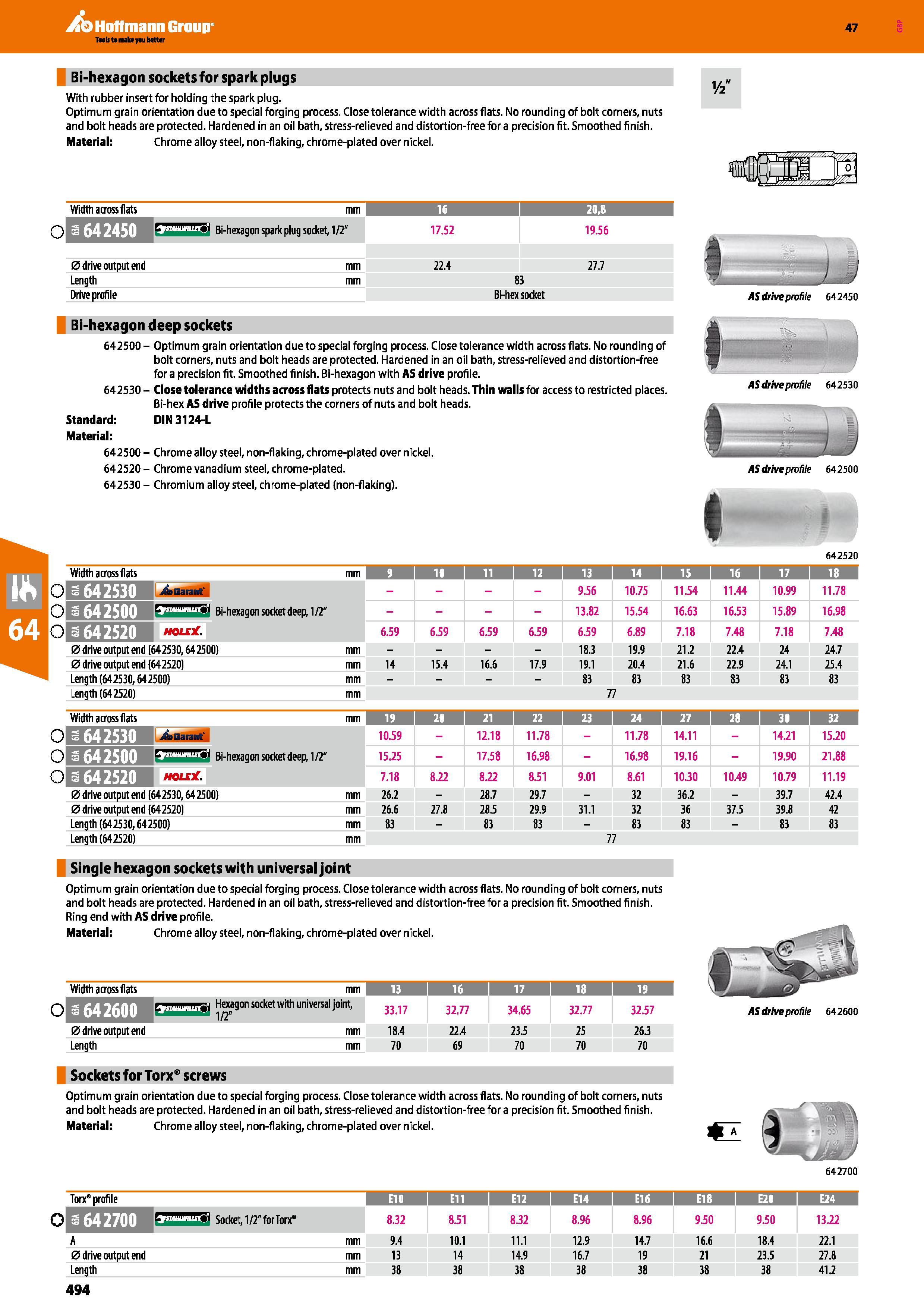

Hoffmann Group 47 Bi-hexagon sockets for spark plugs With rubber insert for holding the spark plug. Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. o Width across flats mm 16 20,8 3 642450 Bi-hexagon spark plug socket, 1/2" 17.52 19.56 0 drive output end Length Drive profile 22.4 27.7 83 Bi-hex socket AS drive profile 642450 Bi-hexagon deep sockets 642500 - Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. Bi-hexagon with AS drive profile. 64 2530 - Close tolerance widths across flats protects nuts and bolt heads. Thin walls for access to restricted places. Bi-hex AS drive profile protects the corners of nuts and bolt heads. Standard: DIN3124-L Material: 642500 - Chrome alloy steel, non-flaking, chrome-plated over nickel. 642520 - Chrome vanadium steel, chrome-plated. 642530 - Chromium alloy steel, chrome-plated (non-flaking). ti AS drive profile 642530 R) I 642520 Width across flats mm 9 10 11 1 12 13 1 14 15 16 1 17 18 1 O s 642530 - 9.56 10.75 11.54 11.44 10.99 11.78 O - 13.82 15.54 16.63 16.53 15.89 16.98 O a 642520 BO 6.59 6.59 6.59 6.59 6.59 6.89 7.18 7.48 7.18 7.48 0 drive output end (642530,642500) mm - 18.3 19.9 21.2 22.4 24 24.7 0 drive output end (642520) mm 14 15.4 16.6 17.9 19.1 20.4 21.6 22.9 24.1 25.4 Length (642530,642500) mm - 83 83 83 83 83 83 Length (642520) mm 77 Width across flats mm 19 20 I 21 1 22 23 1 24 I 27 28 I 30 I 32 O s 642530 10.59 - 12.18 11.78 - 11.78 14.11 - 14.21 15.20 O a 642500 Bi-hexagon socket deep, 1/2" 15.25 - 17.58 16.98 - 16.98 19.16 - 19.90 21.88 O 642520 HOLEjC. 7.18 8.22 8.22 8.51 9.01 8.61 10.30 10.49 10.79 11.19 0 drive output end (642530,642500) mm 26.2 - 28.7 29.7 - 32 36.2 - 39.7 42.4 0 drive output end (64 2520) mm 26.6 27.8 28.5 29.9 31.1 32 36 37.5 39.8 42 Length (642530,642500) mm 83 - 83 83 - 83 83 - 83 83 Length (642520) mm 77 Single hexagon sockets with universal joint Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. Ring end with AS drive profile. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. Width across flats o 642600 Hexagon socket with universal joint, 1/2" 0 drive output end Length mm 13 I 16 1 17 18 I 19 33.17 32.77 34.65 32.77 32.57 18.4 22.4 23.5 25 26.3 70 69 70 70 70 AS drive profile 642600 Sockets for Torx9 screws Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Smoothed finish. Material: Chrome alloy steel, non-flaking, chrome-plated over nickel. 642700 o Torx profile E10 I Ell E12 i E14 E16 E18 E20 I E24 s 642700 8.32 8.51 8.32 8.96 8.96 9.50 9.50 13.22 A mm 9.4 10.1 11.1 12.9 14.7 16.6 18.4 22.1 0 drive output end mm 13 14 14.9 16.7 19 21 23.5 27.8 Length mm 38 38 38 38 38 38 38 41.2 494 AS drive profile 642500
