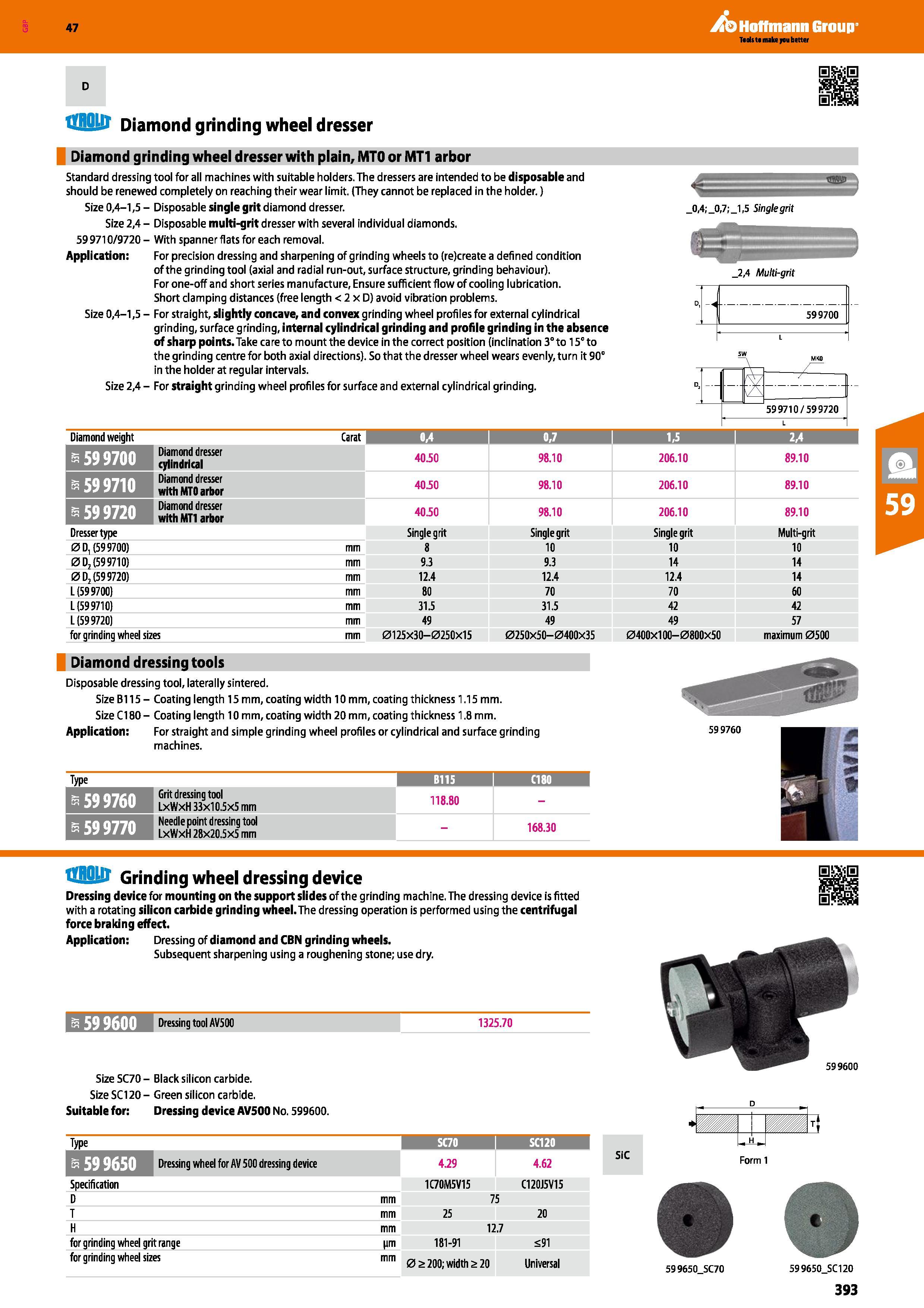

Hoffmann Group 47 USSiJY Diamond grinding wheel dresser Diamond grinding wheel dresser with plain, MTO or MT1 arbor Standard dressing tool for all machines with suitable holders. The dressers are intended to be disposable and should be renewed completely on reaching their wear limit. (They cannot be replaced in the holder.) Size 0,4-1,5 - Disposable single grit diamond dresser. Size 2,4 - Disposable multi-grit dresser with several individual diamonds. 599710/9720 - With spanner flats for each removal. Application: For precision dressing and sharpening of grinding wheels to (re)create a defined condition of the grinding tool (axial and radial run-out, surface structure, grinding behaviour). For one-off and short series manufacture. Ensure sufficient flow of cooling lubrication. Short clamping distances (free length < 2 x D) avoid vibration problems. Size 0,4-1,5 - For straight, slightly concave, and convex grinding wheel profiles for external cylindrical grinding, surface grinding, internal cylindrical grinding and profile grinding in the absence of sharp points.Take care to mount the device in the correct position (inclination 3° to 15° to the grinding centre for both axial directions). So that the dresser wheel wears evenly, turn it 90° in the holder at regular intervals. Size 2,4 - For straight grinding wheel profiles for surface and external cylindrical grinding. 4 _0,4;_0,7;_1,5 Single grit _2,4 Multi-grit 599700 599710/599720 Diamond weight Carat 0,4 0,7 1 1,5 1 U Diamond dresser cylindrical 40.50 98.10 206.10 89.10 a 59 9710 Diamond dresser with MTO arbor 40.50 98.10 206.10 89.10 s 59 9720 Diamond dresser with MT1 arbor 40.50 98.10 206.10 89.10 Dresser type Single grit Single grit Single grit Multi-grit 00,(599700) mm 8 10 10 10 0 D2 (59 9710) mm 9.3 9.3 14 14 0 D2 (59 9720) mm 12.4 12.4 12.4 14 L (59 9700) mm 80 70 70 60 L (599710) mm 31.5 31.5 42 42 L (59 9720) mm 49 49 49 57 for grinding wheel sizes mm 0125x30-0250x15 0250x50-0400x35 0400x100-0800x50 maximum 0500 Diamond dressing tools Disposable dressing tool, laterally sintered. Size B115 Coating length 15 mm, coating width 10 mm, coating thickness 1.15 mm. Size Cl80- Coating length 10 mm, coating width 20 mm, coating thickness 1.8 mm. Application: For straight and simple grinding wheel profiles or cylindrical and surface grinding machines. Type B115 Cl 80 -599760 Grit dressing tool LxWxH 33x10.5x5 mm 118.80 - 5 599770 Needle point dressing tool LxWxH 28x20.5x5 mm - 168.30 UBSIJY Grinding wheel dressing device Dressing device for mounting on the support slides of the grinding machine. The dressing device is fitted with a rotating silicon carbide grinding wheel.The dressing operation is performed using the centrifugal force braking effect. Application: Dressing of diamond and CBN grinding wheels. Subsequent sharpening using a roughening stone; use dry. 599600 Dressing tool AV500 1325.70 SizeSC70- Black silicon carbide. SizeSC120- Green silicon carbide. Suitable for: Dressing device AV500 No. 599600. Type SC70 SCI20 IgVULr.'yTlM Dressing wheel for AV 500 dressing device 4.29 4.62 Specification 1C70M5V15 C120J5V15 D mm 75 T mm 25 20 H mm 12.7 for grinding wheel grit range pm 181-91 s91 for grinding wheel sizes mm 05 200; width s20 Universal SiC Form 1 599650_SC70 599650_SC120 393 599600
