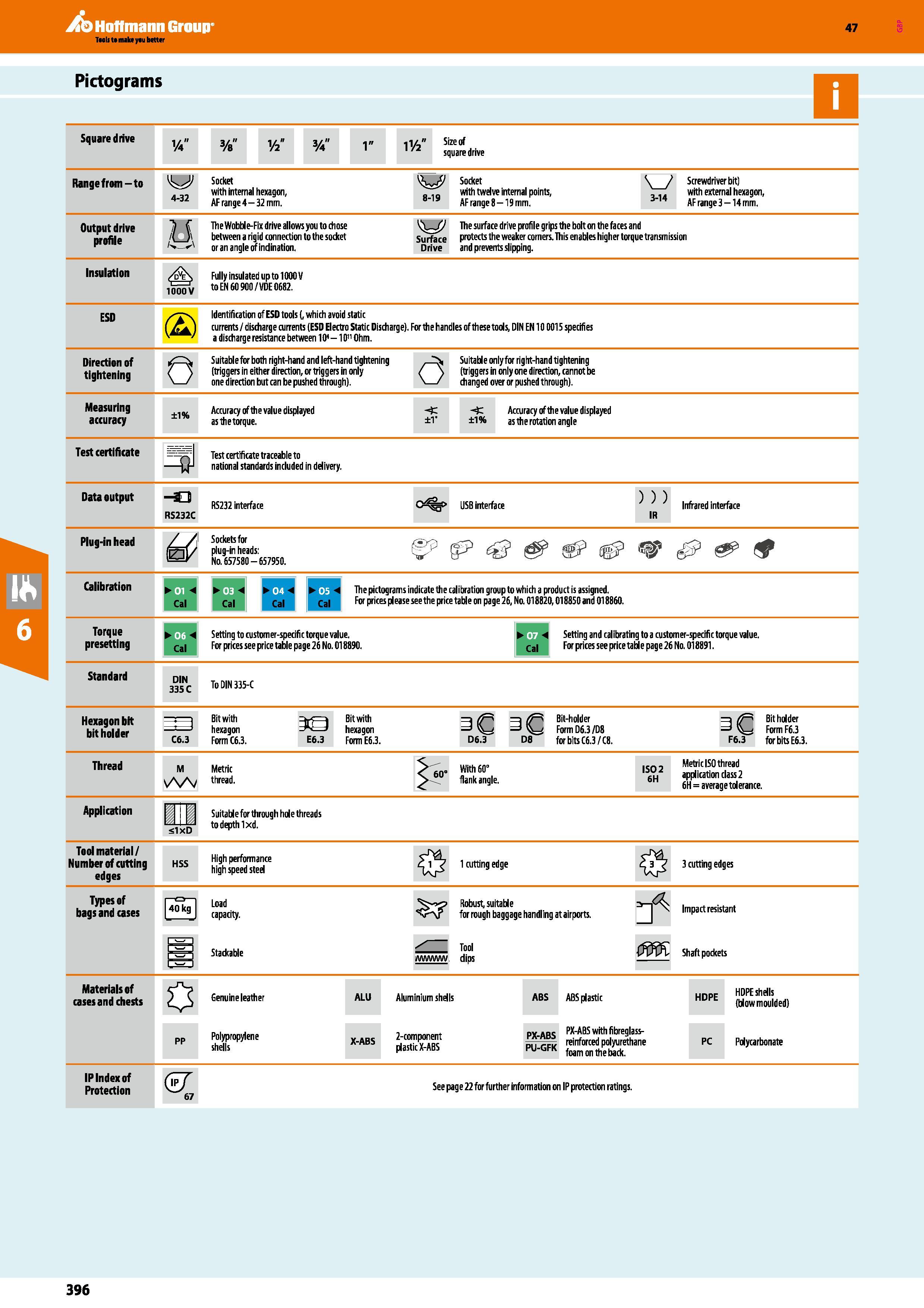

Hoffmann Group 47 Pictograms Square drive 14' 3/8" Vj" y4" i" il/," Size of square drive Range from-to 4-32 Socket with internal hexagon, AF range 4-32 mm. Socket with twelve internal points, AF range 8-19 mm. \ ) Screwdriver bit with external hexagon, AF range 3-14 mm. Output drive profile a The Wobble-Fix drive allows you to chose between a rigid connection to the sodiet or an angle of inclination. 'yU=/7 The surface drive profile grips the bolt on the faces and Surface protects the weaker corners. This enables higher torque transmission Drive and prevents slipping. insulation Plug-in head 1000V Fully insulated uptolOOOV to EN 60 900 /VDE 0682. ESD (2) Identification of ESD tools C which avoid static currents / discharge currents (ESD Electro Static Discharge). For the handles of these tools, DIN EN 10 0015 specifies a discharge resistance between 10 -10,,0hm. Direction of tightening 0 Suitable for both right-hand and left-hand tightening (triggers in either direction, or triggers in only one direction but can be pushed through). (3 Suitable only for right-hand tightening (triggers in only one direction, cannot be changed over or pushed through). Measuring accuracy ±1% Accuracy of the value displayed as the torque. -< ±r <£ Accuracy of the value displayed ±1% as the rotation angle Test certificate Test certificate traceable to national standards included in delivery. Data output h R5232C RS232 interface <=%> USB interface ) ) ) infrared interface IR Sockets for plug-in heads: No. 657580-657950. Calibration 01 03 Cal Cal D Cal The pictograms indicate the calibration group to which a product is assigned. For prices please see the price table on page 26, No. 018820,018850 and 018860. Torque presetting Cal Setting to customer-specific torque value. For prices see price table page 26 No. 018890. Setting and calibrating to a customer-specific torque value. For prices see price table page 26 No. 018891. Standard DIN 335 C To DIN 335-C Hexagon bit bit holder C6.3 Bit with hexagon Form C6.3. Bit with hexagon E6.3 Form E6.3. D6.3 CBit-holder Form D6.3/D8 8 for bits C6.3/C8. CBit holder Form F6.3 F6.3 for bits E6.3. Thread M vW Metric thread. With 60° flank angle. Metric ISO thread 6H application class 2 6H = average tolerance. Application Suitable for through hole threads to depth Ixd. Tool material/ Number of cutting edges High performance high speed steel 1 cutting edge 3 cutting edges Types of bags and cases Load capacity. w 1 Stackable Robust, suitable for rough baggage handling at airports. Tool miwww. dips Impact resistant Shaft pockets Materials of cases and chests Genuine leather Polypropylene shells ALU Aluminium shells 2-component plastic X-ABS ABS ABS plastic PX-ABS PX-ABSwithfibreglass- reinforced polyurethane foam on the back. HDPE HDPE shells (blow moulded) PC Polycarbonate IP Index of Protection See page 22 for further information on IP protection ratings. 396
