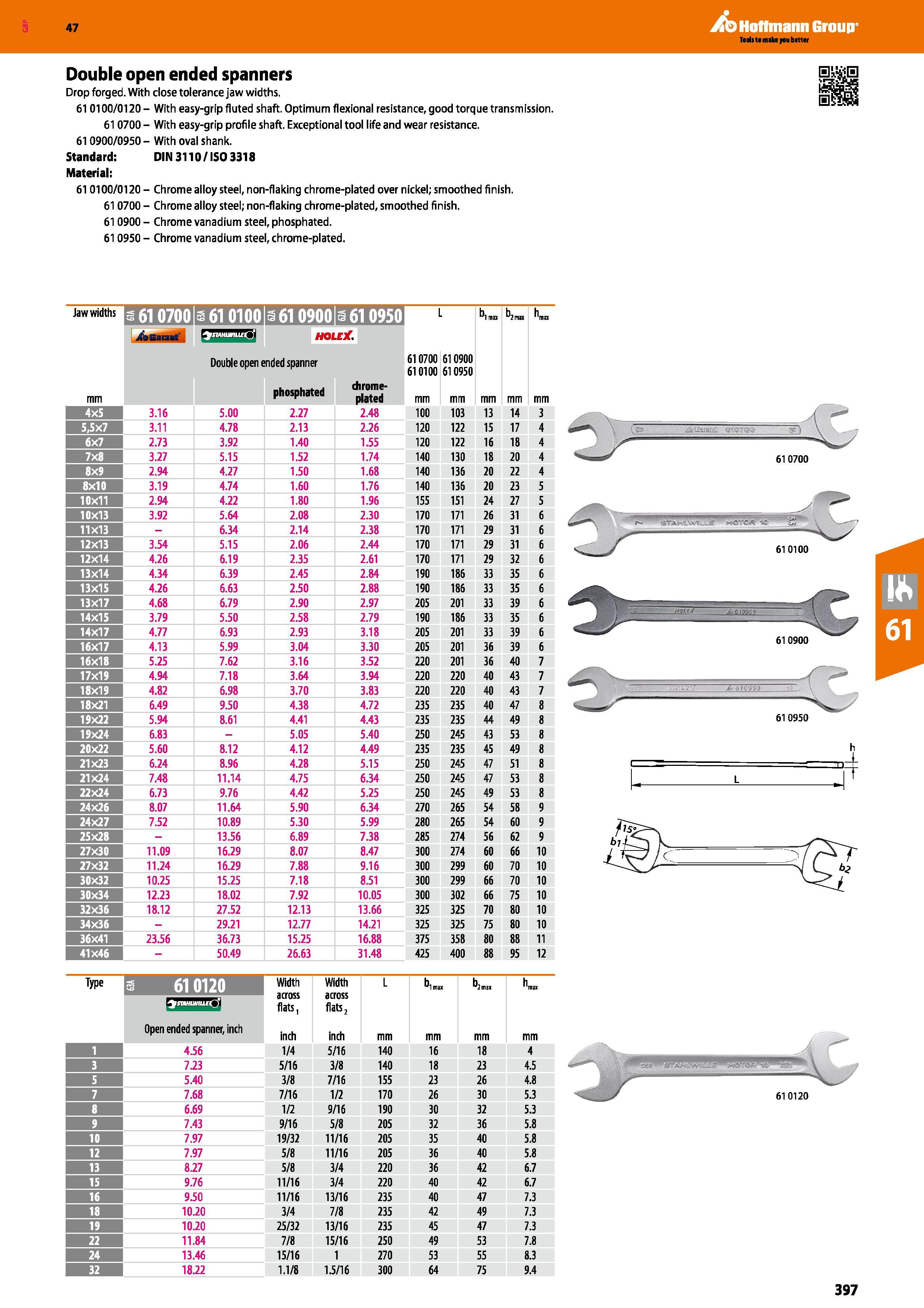

Hoffmann Group 47 Double open ended spanners Drop forged. With close tolerance jaw widths. 610100/0120- With easy-grip fluted shaft. Optimum flexional resistance, good torque transmission. 610700 - With easy-grip profile shaft. Exceptional tool life and wear resistance. 610900/0950 - With oval shank. Standard: DIN 3110/ISO 3318 Material: 610100/0120 - Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. 610700 - Chrome alloy steel; non-flaking chrome-plated, smoothed finish. 610900 - Chrome vanadium steel, phosphated. 610950 - Chrome vanadium steel, chrome-plated. Jaw widths s 610700 3 610100 a 610900 s 610950 L 1 HJX 2 mm XbGarait HOLE . mm Double open ended spanner phosphated dirome- plated 610700 610100 mm 610900 610950 mm 4x5 3.16 5.00 2.27 2.48 100 103 13 14 3 5,5x7 3.11 4.78 2.13 2.26 120 122 15 17 4 6x7 2.73 3.92 1.40 1.55 120 122 16 18 4 7x8 3.27 5.15 1.52 1.74 140 130 18 20 4 8x9 2.94 4.27 1.50 1.68 140 136 20 22 4 8x10 3.19 4.74 1.60 1.76 140 136 20 23 5 10x11 2.94 4.22 1.80 1.96 155 151 24 27 5 10X13 3.92 5.64 2.08 2.30 170 171 26 31 6 11x13 - 6.34 2.14 2.38 170 171 29 31 6 12x13 3.54 5.15 2.06 2.44 170 171 29 31 6 12X14 4.26 6.19 2.35 2.61 170 171 29 32 6 13x14 4.34 6.39 2.45 2.84 190 186 33 35 6 13x15 4.26 6.63 2.50 2.88 190 186 33 35 6 13x17 4.68 6.79 2.90 2.97 205 201 33 39 6 14x15 3.79 5.50 2.58 2.79 190 186 33 35 6 14X17 4.77 6.93 2.93 3.18 205 201 33 39 6 16X17 4.13 5.99 3.04 3.30 205 201 36 39 6 16x18 5.25 7.62 3.16 3.52 220 201 36 40 7 17x19 4.94 7.18 3.64 3.94 220 220 40 43 7 18x19 4.82 6.98 3.70 3.83 220 220 40 43 7 18x21 6.49 9.50 4.38 4.72 235 235 40 47 8 19x22 5.94 8.61 4.41 4.43 235 235 44 49 8 19x24 6.83 - 5.05 5.40 250 245 43 53 8 20x22 5.60 8.12 4.12 4.49 235 235 45 49 8 21x23 6.24 8.96 4.28 5.15 250 245 47 51 8 21X24 7.48 11.14 4.75 6.34 250 245 47 53 8 22X24 6.73 9.76 4.42 5.25 250 245 49 53 8 24X26 8.07 11.64 5.90 6.34 270 265 54 58 9 24x27 7.52 10.89 5.30 5.99 280 265 54 60 9 25x28 - 13.56 6.89 7.38 285 274 56 62 9 27x30 11.09 16.29 8.07 8.47 300 274 60 66 10 27X32 11.24 16.29 7.88 9.16 300 299 60 70 10 30x32 10.25 15.25 7.18 8.51 300 299 66 70 10 30x34 12.23 18.02 7.92 10.05 300 302 66 75 10 32x36 18.12 27.52 12.13 13.66 325 325 70 80 10 34x36 - 29.21 12.77 14.21 325 325 75 80 10 36x41 23.56 36.73 15.25 16.88 375 358 80 88 11 41x46 - 50.49 26.63 31.48 425 400 88 95 12 IcawcL
