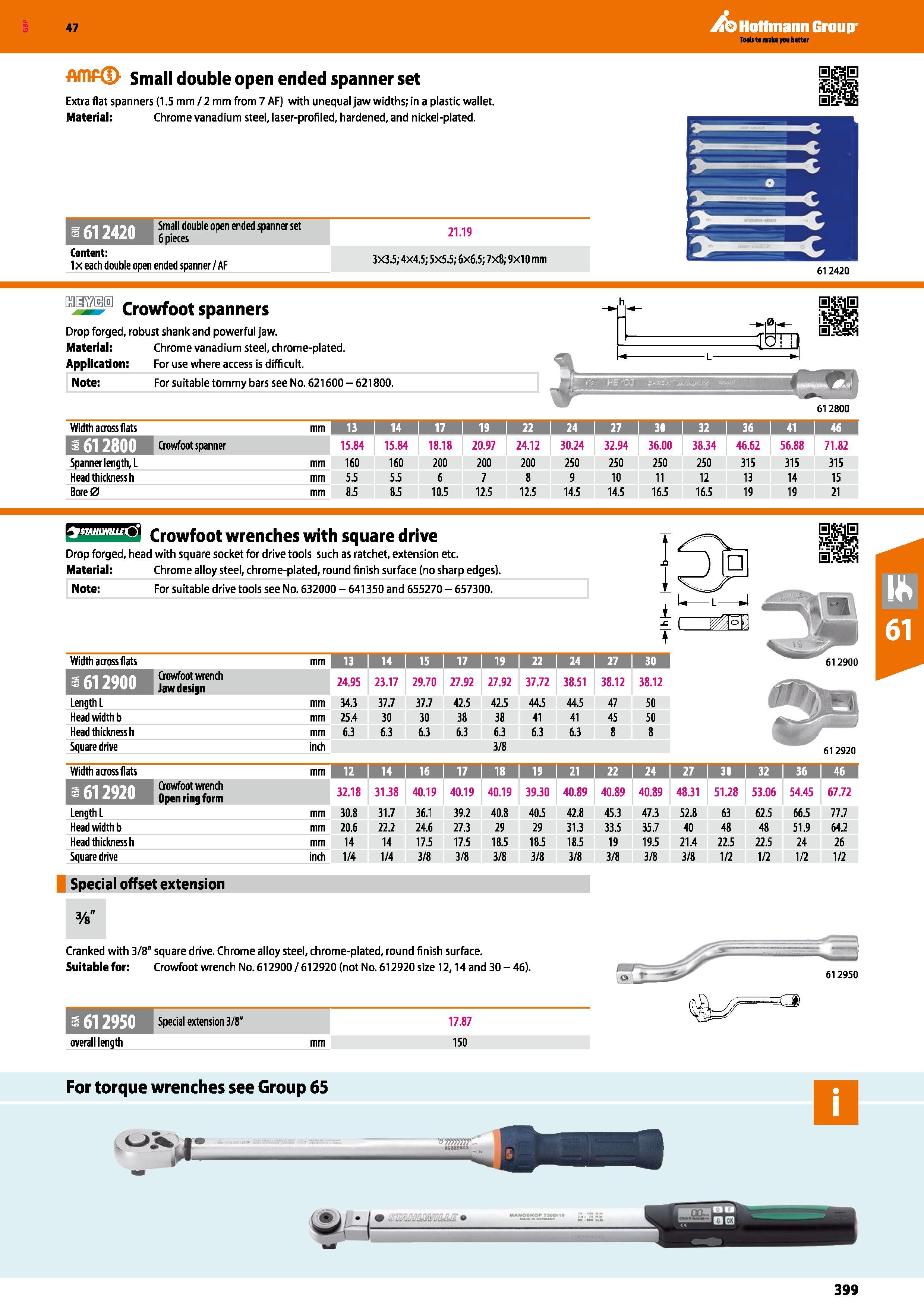

Hoffmann Group 47 Tools to make you better Small double open ended spanner set Extra flat spanners (1.5 mm/2 mm from 7 AF) with unequal jaw widths; in a plastic wallet. Material; Chrome vanadium steel, laser-profiled, hardened, and nickel-plated. Small double open ended spanner set 6 pieces 21.19 Content: 1x each double open ended spanner/AF 3x3.5; 4x4.5; 5x5.5; 6x6.5; 7x8; 9x10 mm 61 2420 \s\mm crowfoot spanners Drop forged, robust shank and powerful jaw. Material; Chrome vanadium steel, chrome-plated. Application: For use where access is difficult. Note: For suitable tommy bars see No. 621600 - 621800. J 1 61 2800 Width across flats mm 13 ; i4 1 17 19 I 22 24 1 27 IKM1 32 I 36 I 41 I Crowfoot spanner 15.84 15.84 18.18 20.97 24.12 30.24 32.94 36.00 38.34 46.62 56.88 71.82 Spanner length, L mm 160 160 200 200 200 250 250 250 250 315 315 315 Head thickness h mm 5.5 5.5 6 7 8 9 10 11 12 13 14 15 Bore0 mm 8.5 8.5 10.5 12.5 12.5 14.5 14.5 16 J 16.5 19 19 21 SMfflWIUfO Crowfoot wrenches with square drive Drop forged, head with square socket for drive tools such as ratchet, extension etc. Material; Chrome alloy steel, chrome-plated, round finish surface (no sharp edges). Note: For suitable drive tools see No. 632000 - 641350 and 655270 - 657300. Width across flats mm 13 1 14 I 15 1 19 1 22 I 24 1 27 I 30 a 612900 Crowfoot wrench Jaw design 24.95 23.17 29.70 27.92 27.92 37.72 38.51 38.12 38.12 Length L mm 34.3 37.7 37.7 42.5 42.5 44.5 44.5 47 50 Head width b mm 25.4 30 30 38 38 41 41 45 50 Head thickness h mm 6.3 6.3 6.3 6.3 6.3 6.3 6.3 8 8 Square drive inch 3/8 612920 Width across flats a 612920 Crowfoot wrench Open ring form 32.18 31.38 40.19 40.19 40.19 39.30 40.89 40.89 40.89 48.31 51.28 53.06 54.45 67.72 Length L mm 30.8 31.7 36.1 39.2 40.8 40.5 42.8 45.3 47.3 52.8 63 62.5 66.5 77.7 Head width b mm 20.6 22.2 24.6 27.3 29 29 31.3 33.5 35.7 40 48 48 51.9 64.2 Head thickness h mm 14 14 17.5 17.5 18 5 18.5 18.5 19 19.5 21.4 22.5 22.5 24 26 Square drive inch 1/4 1/4 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 Special offset extension Cranked with 3/8" square drive. Chrome alloy steel, chrome-plated, round finish surface. Suitable for: Crowfoot wrench No. 612900 / 612920 (not No. 612920 size 12,14 and 30 - 46). Special extension 3/8" 17.87 overall length mm 150 612950 399
