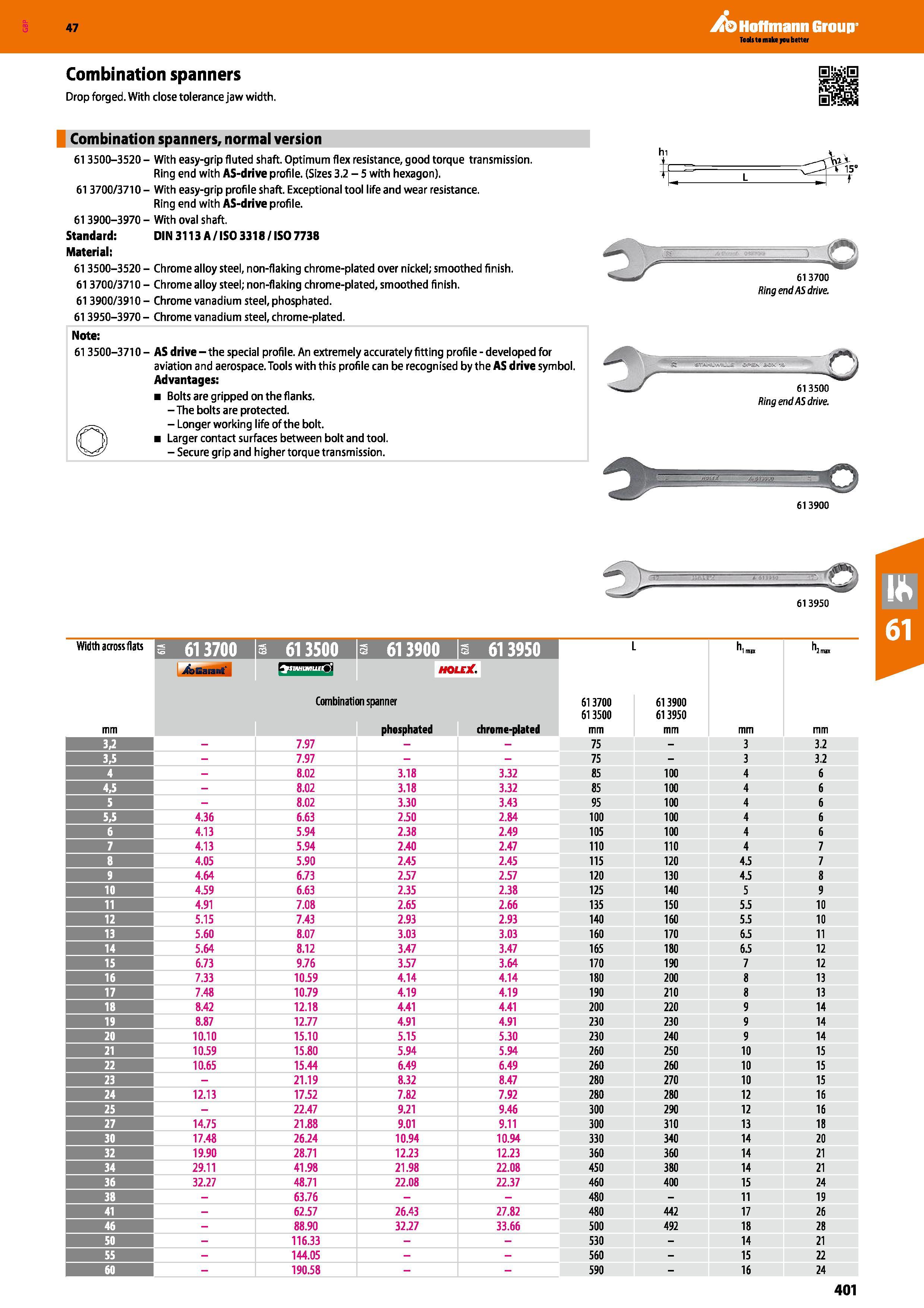

Hoffmann Group 47 Combination spanners Drop forged. With close tolerance jaw width. Combination spanners, normal version 613500-3520 - With easy-grip fluted shaft. Optimum flex resistance, good torque transmission. Ring end with AS-drive profile. (Sizes 3.2 - 5 with hexagon). 613700/3710 - With easy-grip profile shaft. Exceptional tool life and wear resistance. Ring end with AS-drive profile. 613900-3970 - With oval shaft. Standard: DIN 3113 A / ISO 3318 / ISO 7738 Material: 613500-3520 - Chrome alloy steel, non-flaking chrome-plated over nickel; smoothed finish. 613700/3710 - Chrome alloy steel; non-flaking chrome-plated, smoothed finish. 613900/3910 - Chrome vanadium steel, phosphated. 613950-3970 - Chrome vanadium steel, chrome-plated. Note: 61 3500-3710 - AS drive - the special profile. An extremely accurately fitting profile - developed for aviation and aerospace. Tools with this profile can be recognised by the AS drive symbol. Advantages: Bolts are gripped on the flanks. - The bolts are protected. - Longer working life of the bolt. Larger contact surfaces between bolt and tool. - Secure grip and higher torque transmission. 613700 Ring end AS drive. - r- O 61 3500 Ring end AS drive. 613900 2 61 3950 Width across flats s 613700 a 613500 a 613900 a 613950 L 1 mnt 2 mm nwuwufO' J HOLCX. mm Combination spanner phosphated chrome-plated 61 3700 613500 mm 613900 613950 mm 3/2 - 7.97 75 - 3 3.2 3,5 - 7.97 75 - 3 3.2 4 - 8.02 3.18 3.32 85 100 4 6 4,5 - 8.02 3.18 3.32 85 100 4 6 5 - 8.02 3.30 3.43 95 100 4 6 5,5 4.36 6.63 2.50 2.84 100 100 4 6 6 4.13 5.94 2.38 2.49 105 100 4 6 7 4.13 5.94 2.40 2.47 110 110 4 7 8 4.05 5.90 2.45 2.45 115 120 4.5 7 9 4.64 6.73 2.57 2.57 120 130 4.5 8 10 4.59 6.63 2.35 2.38 125 140 5 9 11 4.91 7.08 2.65 2.66 135 150 5.5 10 12 5.15 7.43 2.93 2.93 140 160 5.5 10 13 5.60 8.07 3.03 3.03 160 170 6.5 11 14 5.64 8.12 3.47 3.47 165 180 6.5 12 15 6.73 9.76 3.57 3.64 170 190 7 12 16 7.33 10.59 4.14 4.14 180 200 8 13 17 7.48 10.79 4.19 4.19 190 210 8 13 18 8.42 12.18 4.41 4.41 200 220 9 14 19 8.87 12.77 4.91 4.91 230 230 9 14 20 10.10 15.10 5.15 5.30 230 240 9 14 21 10.59 15.80 5.94 5.94 260 250 10 15 22 10.65 15.44 6.49 6.49 260 260 10 15 23 - 21.19 8.32 8.47 280 270 10 15 24 12.13 17.52 7.82 7.92 280 280 12 16 25 - 22.47 9.21 9.46 300 290 12 16 27 14.75 21.88 9.01 9.11 300 310 13 18 30 17.48 26.24 10.94 10.94 330 340 14 20 32 19.90 28.71 12.23 12.23 360 360 14 21 34 29.11 41.98 21.98 22.08 450 380 14 21 36 32.27 48.71 22.08 22.37 460 400 15 24 38 - 63.76 480 - 11 19 41 - 62.57 26.43 27.82 480 442 17 26 46 - 88.90 32.27 33.66 500 492 18 28 50 - 116.33 530 - 14 21 55 - 144.05 560 - 15 22 60 - 190.58 590 - 16 24 401
