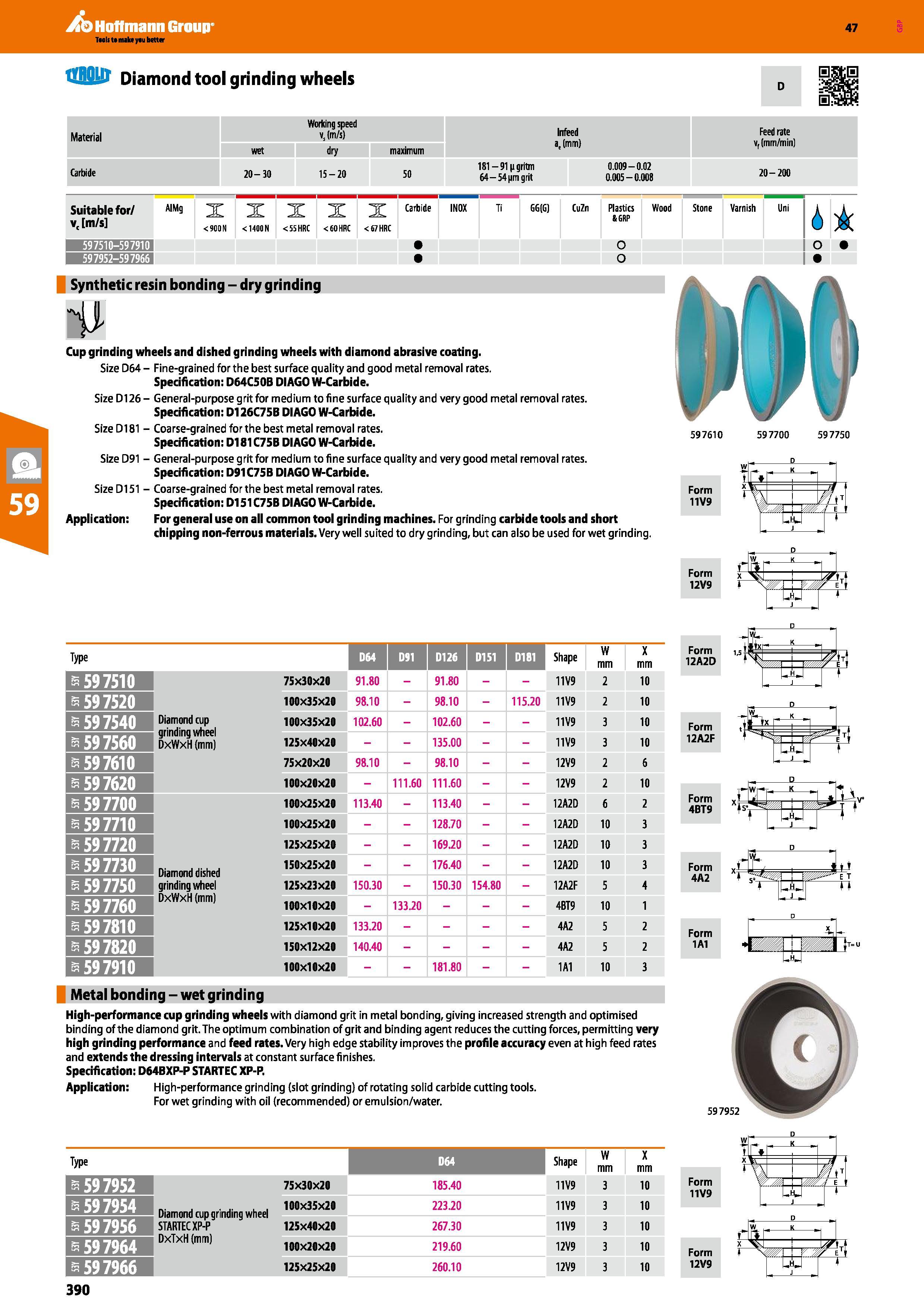

ib Hoffmann Group' 47 fKBHP' Diamond tool grinding wheels Synthetic resin bonding - dry grinding Cup grinding wheels and dished grinding wheels with diamond abrasive coating. Size D64 - Fine-grained for the best surface quality and good metal removal rates. Specification: D64C50B DIAGO W-Carbide. Size D126 - General-purpose grit for medium to fine surface quality and very good metal removal rates. Specification: D126C75B DIAGO W-Carbide. Size D181 - Coarse-grained for the best metal removal rates. Specification: D181C75B DIAGO W-Carbide. Size D91 - General-purpose grit for medium to fine surface quality and very good metal removal rates. Specification: D91C75B DIAGO W-Carbide. Size D151 - Coarse-grained for the best metal removal rates. Specification: D151C75B DIAGO W-Carbide. Application: For general use on all common tool grinding machines. For grinding carbide tools and short chipping non-ferrous materials. Very well suited to dry grinding, but can also be used for wet grinding. 597610 Form 11V9 Form 12V9 M I ttf Material Working speed va (m/s) Infeed a, (mm) Feed rate v,(mm/min) wet dry maximum Carbide 20-30 15-20 50 181 91 n gritm 64 - 54 jim grit 0.009 - 0.02 0.005 - 0.008 20 - 200 Suitable for/ AIM9 v, m/s X <900N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide IN0X Ti GG(G) CuZn Plastics Wood &GRP Stone Varnish Uni 4 597510-597910 O o 597952-597966 o 597700 597750 w w - K h \ w> H- ,H, J / E ( Type D64 DS1 D126 D151 D181 Shape W mm X mm 5 59 7510 75x30x20 91.80 - 91.80 11V9 2 10 5 59 7520 100x35x20 98.10 - 98.10 - 115.20 11V9 2 10 6 59 7540 Diamond cup grinding wheel DxWxH (mm) 100x35x20 102.60 - 102.60 11V9 3 10 59 7560 125x40x20 135.00 11V9 3 10 s 597610 75x20x20 98.10 - 98.10 12V9 2 6 s 59 7620 100x20x20 - 111.60 111.60 12V9 2 10 s 59 7700 100x25x20 113.40 - 113.40 12A2D 2 6 59 7710 100x25x20 128.70 12A2D 10 3 59 7720 125x25x20 169.20 12A2D 10 3 is 59 7730 Diamond dished grinding wheel DxWxH (mm) 150x25x20 176.40 12A2D 10 3 s 59 7750 125x23x20 150.30 - 150.30 154.80 - 12A2F 5 4 s 59 7760 100x10x20 - 133.20 4BT9 10 1 6 59 7810 125x10x20 133.20 - 4A2 5 2 59 7820 150x12x20 140.40 - 4A2 5 2 s 59 7910 100x10x20 181.80 1A1 10 3 Metal bonding - wet grinding High-performance cup grinding wheels with diamond grit in metal bonding, giving increased strength and optimised binding of the diamond grit. The optimum combination of grit and binding agent reduces the cutting forces, permitting very high grinding performance and feed rates. Very high edge stability improves the profile accuracy even at high feed rates and extends the dressing intervals at constant surface finishes. Specification: D64BXP-P STARTEC XP-P. Application: High-performance grinding (slot grinding) of rotating solid carbide cutting tools. For wet grinding with oil (recommended) or emulsion/water. Form 12A2D Form 12A2F ixr _j_ Type D64 Shape v mm X mm 59 7952 75x30x20 185.40 11V9 3 10 s 59 7954 Diamond cup grinding wheel STARTEC XP-P DxTxH (mm) 100x35x20 223.20 11V9 3 10 is 59 7956 125x40x20 267.30 11V9 3 10 s 59 7964 100x20x20 219.60 12V9 3 10 6 59 7966 125x25x20 260.10 12V9 3 10 Form 4BT9 Form 4A2 Form 1A1 Form 11V9 Form 12V9 c I J \ T 597952 390
