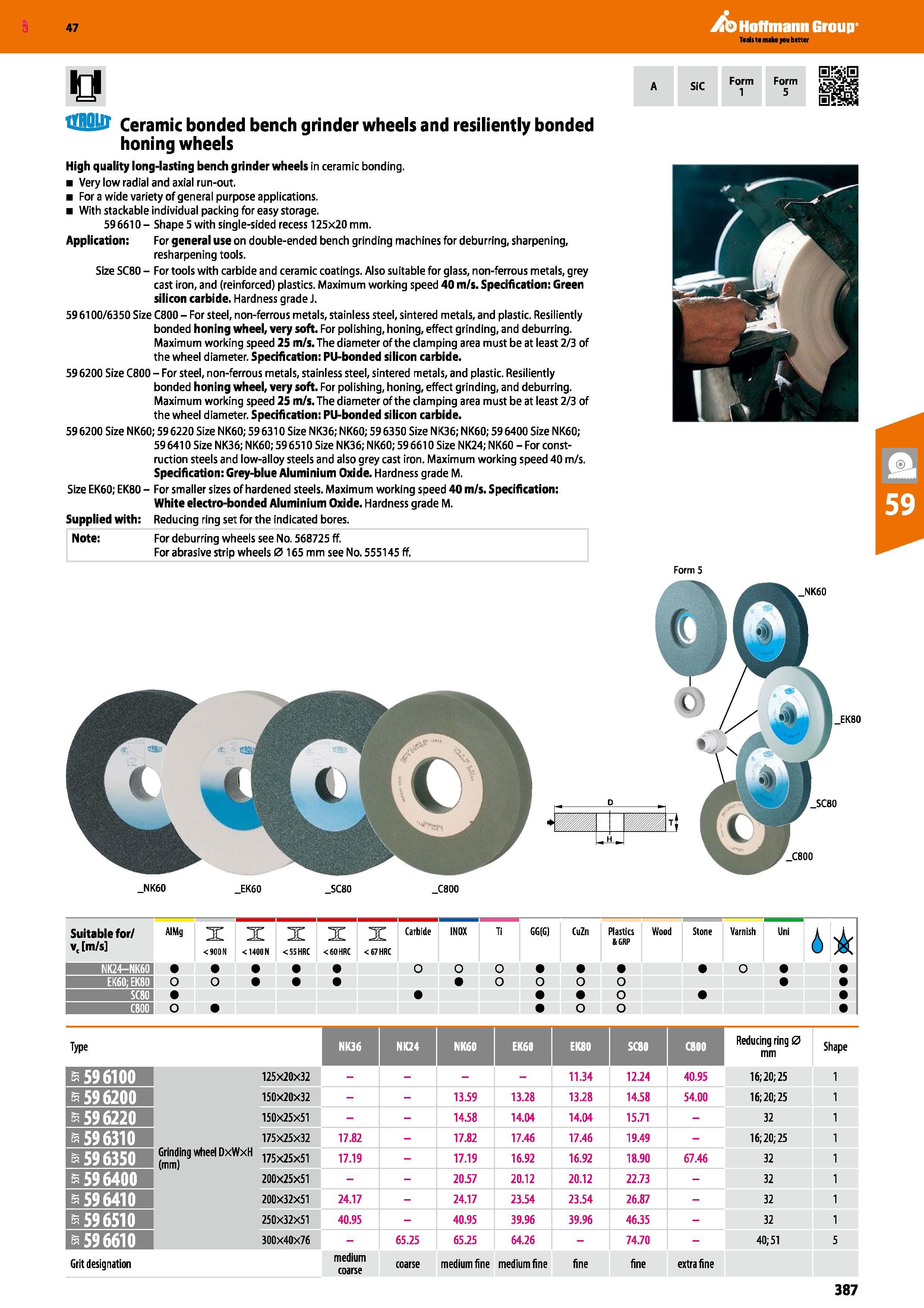

Ceramic bonded bench grinder wheels and resiliency bonded honing wheels High quality long-lasting bench grinder wheels in ceramic bonding. Very low radial and axial run-out. For a wide variety of general purpose applications. With stackable individual packing for easy storage. 59 6610 - Shape 5 with single-sided recess 125x20 mm. Application: For general use on double-ended bench grinding machines for deburring, sharpening, resharpening tools. Size SC80 - For tools with carbide and ceramic coatings. Also suitable for glass, non-ferrous metals, grey cast iron, and (reinforced) plastics. Maximum working speed 40 m/s. Specification: Green silicon carbide. Hardness grade J. 59 6100/6350 Size C800 - For steel, non-ferrous metals, stainless steel, sintered metals, and plastic. Resiliency bonded honing wheel, very soft. For polishing, honing, effect grinding, and deburring. Maximum working speed 25 m/s. The diameter of the clamping area must be at least 2/3 of the wheel diameter. Specification: PU-bonded silicon carbide. 59 6200 Size C800 - For steel, non-ferrous metals, stainless steel, sintered metals, and plastic. Resiliency bonded honing wheel, very soft. For polishing, honing, effect grinding, and deburring. Maximum working speed 25 m/s. The diameter of the clamping area must be at least 2/3 of the wheel diameter. Specification: PU-bonded silicon carbide. 596200 Size NK60; 59 6220 Size NK60; 596310 Size NK36; NK60; 596350 Size NK36; NK60; 596400 Size NK60; 59 6410 Size NK36; NK60; 59 6510 Size NK36; NK60; 59 6610 Size NK24; NK60 - For construction steels and low-alloy steels and also grey cast iron. Maximum working speed 40 m/s. Specification: Grey-blue Aluminium Oxide. Hardness grade M. Size EK60; EK80 - For smaller sizes of hardened steels. Maximum working speed 40 m/s. Specification: White electro-bonded Aluminium Oxide. Hardness grade M. Supplied with: Reducing ring set for the indicated bores. Note: For deburring wheels see No. 568725 ff. For abrasive strip wheels 0 165 mm see No. 555145 ff. Form 5 _EK80 SC80 _NK60 _EK60 _SC80 _C800 Suitable for/ v, m/s AIMg X <900N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish “ i NK24-NK60 EK60; EK80 O o SC80 o C800 o Type 5 596100 -59 6200 59 6220 a 59 6310 a 59 6350 is 59 6400 a 59 6510 a 59 6610 Grit designation (mm) Reducing ring 0 mm Shape 125X20X32 - 11.34 12.24 40.95 16; 20; 25 1 150x20x32 13.59 13.28 13.28 14.58 54.00 16; 20; 25 1 150x25x51 14.58 14.04 14.04 15.71 - 32 1 175X25X32 17.82 - 17.82 17.46 17.46 19.49 - 16; 20; 25 1 175x25x51 17.19 - 17.19 16.92 16.92 18.90 67.46 32 1 200X25X51 20.57 20.12 20.12 22.73 - 32 1 200x32x51 24.17 - 24.17 23.54 23.54 26.87 - 32 1 250x32x51 40.95 - 40.95 39.96 39.96 46.35 - 32 1 300X40X76 - 65.25 65.25 64.26 - 74.70 - 40; 51 5 medium coarse coarse medium fine medium fine fine fine extra fine
