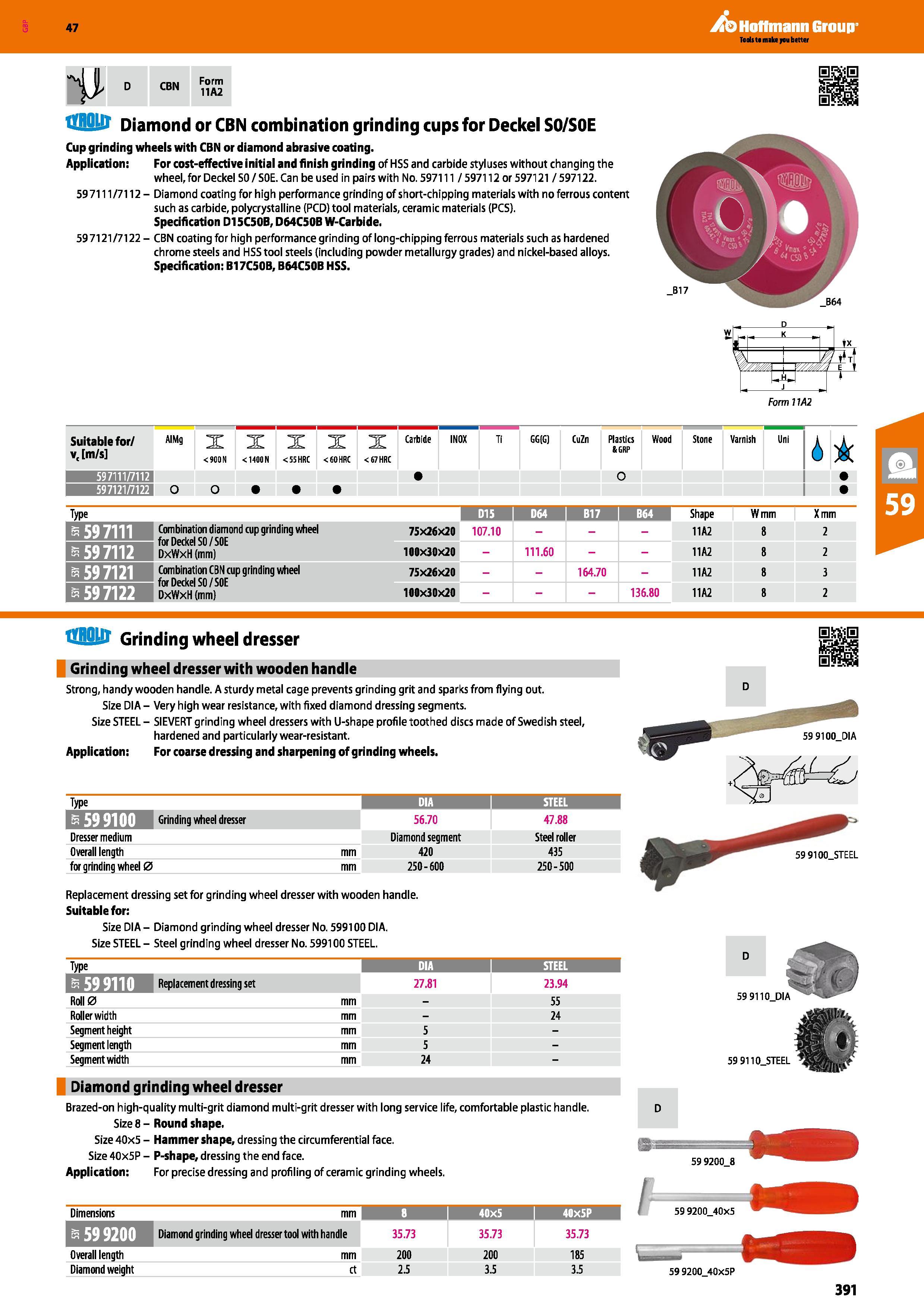

Hoffmann Group 47 11 D CBN Form 11A2 USSiJY Diamond or CBN combination grinding cups for Deckel SO/SOE Cup grinding wheels with CBN or diamond abrasive coating. Application: For cost-effective initial and finish grinding of HSS and carbide styluses without changing the wheel,for Deckel SO/SOE. Can be used in pairs with No. 597111 / 597112 or 597121 /597122. 597111/7112 - Diamond coating for high performance grinding of short-chipping materials with no ferrous content such as carbide, polycrystalline (PCD) tool materials, ceramic materials (PCS). Specification D15C50B, D64C50B W-Carbide. 597121/7122 - CBN coating for high performance grinding of long-chipping ferrous materials such as hardened chrome steels and HSS tool steels (including powder metallurgy grades) and nickel-based alloys. Specification: B17C50B, B64C50B HSS. Form 11A2 Suitable for/ v, m/s AIMg X < SCO N X <1400 N X <55 HRC X <60 HRC X <67 HRC Carbide INOX Ti GG(G) CuZn Plastics Wood &GRP Stone Varnish Uni 597111/7112 o 597121/7122 Type 1 D15 I D64 j B17 1 B64 Shape Wmm Xmm s 59 7111 Combination diamond cup grinding wheel fnr rWI/al Cfl / CflE 75x26x20 107.10 11A2 8 2 59 7112 tot uetxei ju / jut DxWxH (mm) 100x30x20 - 111.60 11A2 8 2 a 59 7121 Combination CBN cup grinding wheel 75x26x20 164.70 - 11A2 8 3 s 59 7122 tot uecKei Jii / jut DxWxH (mm) 100x30x20 136.80 11A2 8 2 Grinding wheel dresser Grinding wheel dresser with wooden handle Strong, handy wooden handle. A sturdy metal cage prevents grinding grit and sparks from flying out. Size DIA - Very high wear resistance, with fixed diamond dressing segments. Size STEEL - SIEVERT grinding wheel dressers with U-shape profile toothed discs made of Swedish steel, hardened and particularly wear-resistant. Application: For coarse dressing and sharpening of grinding wheels. Type DIA I STEEL I yyVUIHM Grinding wheel dresser 56.70 47.88 Dresser medium Diamond segment Steel roller Overall length mm 420 435 for grinding wheel 0 mm 250-600 250-500 Replacement dressing set for grinding wheel dresser with wooden handle. Suitable for: Size DIA - Diamond grinding wheel dresser No. 599100 DIA. Size STEEL - Steel grinding wheel dresser No. 599100 STEEL. DIA 1 STEEL 3 1 111 IB Replacement dressing set 27.81 23.94 Roll 0 mm - 55 Roller width mm - 24 Segment height mm 5 - Segment length mm 5 - Segment width mm 24 - Diamond grinding wheel dresser Brazed-on high-quality multi-grit diamond multi-grit dresser with long service life, comfortable plastic handle. Size 8 - Round shape. Size 40x5 - Hammer shape, dressing the circumferential face. Size 40x5P - P-shape, dressing the end face. Application: For precise dressing and profiling of ceramic grinding wheels. Dimensions mm 8 i 40X5 i 40X5P 1 a 59 9200 Diamond grinding wheel dresser tool with handle 35.73 35.73 35.73 Overall length mm 200 200 185 Diamond weight ct 25 3.5 3.5 59 9200_40x5P 391 D 59 91
