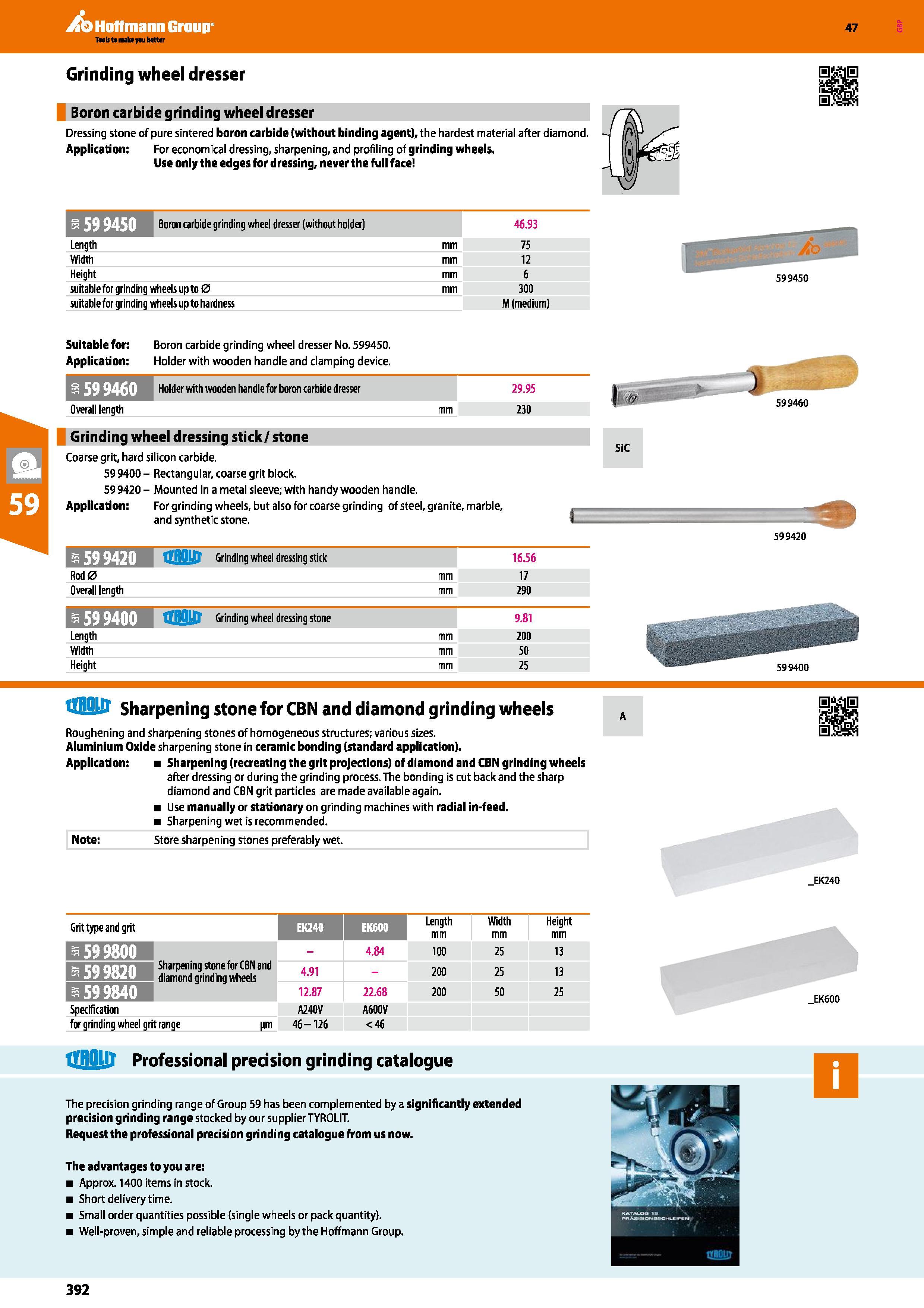

Hoffmann Group 47 Grinding wheel dresser Boron carbide grinding wheel dresser Dressing stone of pure sintered boron carbide (without binding agent), the hardest material after diamond. Application: For economical dressing, sharpening, and profiling of grinding wheels. Use only the edges for dressing, never the full face 59 9450 Boron carbide grinding wheel dresser (without holder) 46.93 Length mm 75 Width mm 12 Height mm 6 suitable for grinding wheels up to 0 mm 300 suitable for grinding wheels upto hardness M (medium) Suitable for: Application: Boron carbide grinding wheel dresser No. 599450. Holder with wooden handle and clamping device. 3 599460 Holder with wooden handle for boron carbide dresser 29.95 Overall length mm 230 Grinding wheel dressing stick/ stone Coarse grit, hard silicon carbide. 59 9400 - Rectangular, coarse grit block. 599420 - Mounted in a metal sleeve; with handy wooden handle. Application: For grinding wheels, but also for coarse grinding of steel, granite, marble, and synthetic stone. 599460 SiC 599420 599420 Rod0 Overall length tfHOLP Grinding wheel dressing stick mm 16.56 17 290 ABOUT Grinding wheel dressing stone 9.81 . Length mm 200 cn YYIQul Height mm JU 25 tlSSUf Sharpening stone for CBN and diamond grinding wheels Roughening and sharpening stones of homogeneous structures; various sizes. Aluminium Oxide sharpening stone in ceramic bonding (standard application). Application: Sharpening (recreating the grit projections) of diamond and CBN grinding wheels after dressing or during the grinding process. The bonding is cut back and the sharp diamond and CBN grit particles are made available again. Use manually or stationary on grinding machines with radial in-feed. Sharpening wet is recommended. Note: Store sharpen ing stones preferably wet. _EK240 Grit type and grit EK240 u Length mm Width mm Height mm a 59 9800 Sharpening stone for CBN and diamond grinding wheels - 4.84 100 25 13 599820 4.91 - 200 25 13 5 59 9840 12.87 22.68 200 50 25 Specification A240V A600V for grinding wheel grit range pm 46-126 <46 _EK600 Professional precision grinding catalogue The precision grinding range of Group 59 has been complemented by a significantly extended precision grinding range stocked by our supplier TYROLIT. Request the professional precision grinding catalogue from us now. The advantages to you are: Approx. 1400 items in stock. Short delivery time. Small order quantities possible (single wheels or pack quantity). Well-proven, simple and reliable processing by the Hoffmann Group. 392
